Headlamp Replacement

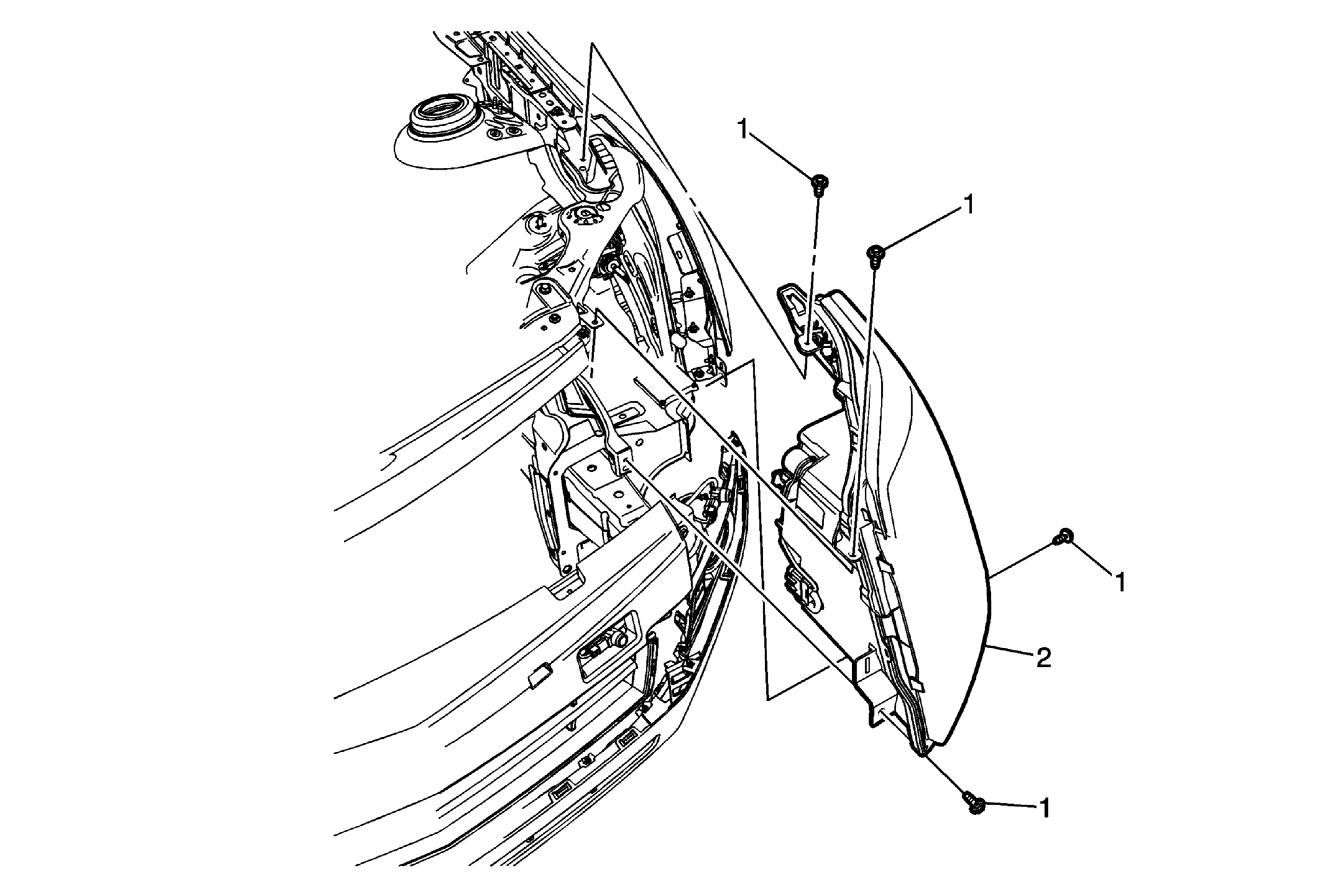

Fig 1: Identifying Headlamp Capsule (TT6, TT7, TT8)
GM2222806Courtesy of GENERAL MOTORS COMPANY
Headlamp Replacement

Callout Component Name

Preliminary Procedure

  1. Open and support the hood.
  2. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
  3. Remove the front compartment side sight shields. Refer to Front Compartment Side Sight Shield Replacement .
  4. Disconnect the headlamp electrical connector at the base of the headlamp assembly.
1 Headlamp Assembly Screw (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
6 N.m (53 lb in)
2 Headlamp Assembly
WARNING:

Refer to Halogen Bulb Warning .

Procedure

  1. Remove both accessory bulb covers and transfer.
  2. Disconnect the electrical connectors from the headlamp bulbs.
  3. Remove the low beam bulb and transfer.
  4. Remove the high beam bulb and transfer.
  5. Disengage the park turn signal bulb socket and transfer the bulb.
