Front Bumper Fascia Replacement

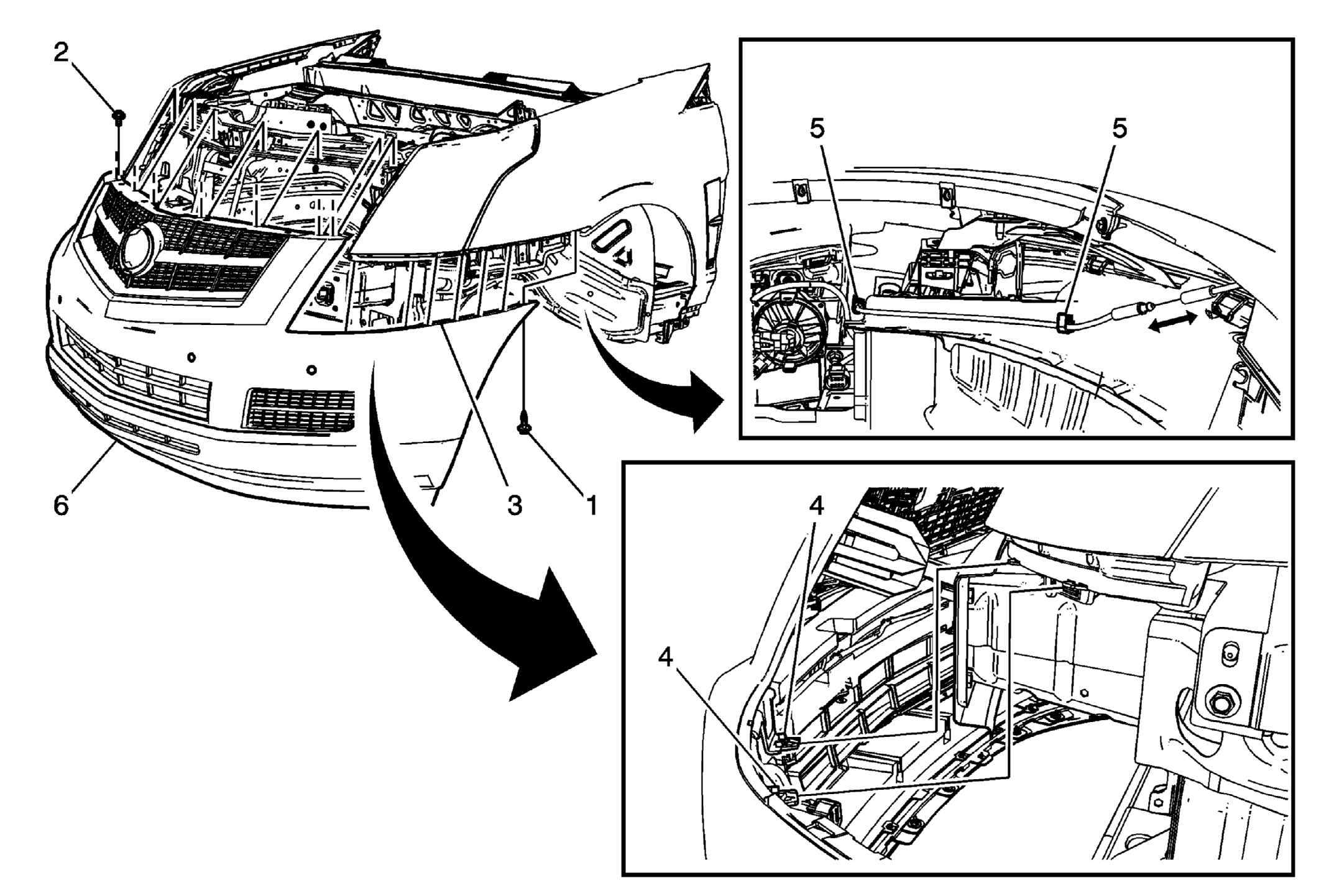

Fig 1: Identifying Front Bumper Fascia & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement . Remove the radiator air lower deflector. Refer to Radiator Air Lower Deflector Replacement . Remove the front wheelhouse liners. Refer to Front Wheelhouse Liner Replacement .
1	Front Bumper Fascia Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Front Fender Support Bracket Bolt (Qty: 6) Tighten 7 N.m (62 lb in)
3	Front Bumper Fascia Side Bracket Procedure Carefully push a small nylon wedge between the fascia and the bracket. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the bracket.
4	Front Bumper Fascia Headlamp Bracket Procedure Carefully release the retainers from the base of the headlamp.
5	Headlamp Washer Hose Procedure Disconnect the headlamp washer hose and retainers.
6	Front Bumper Fascia Procedure Disconnect the electrical connector. Transfer parts as needed.
