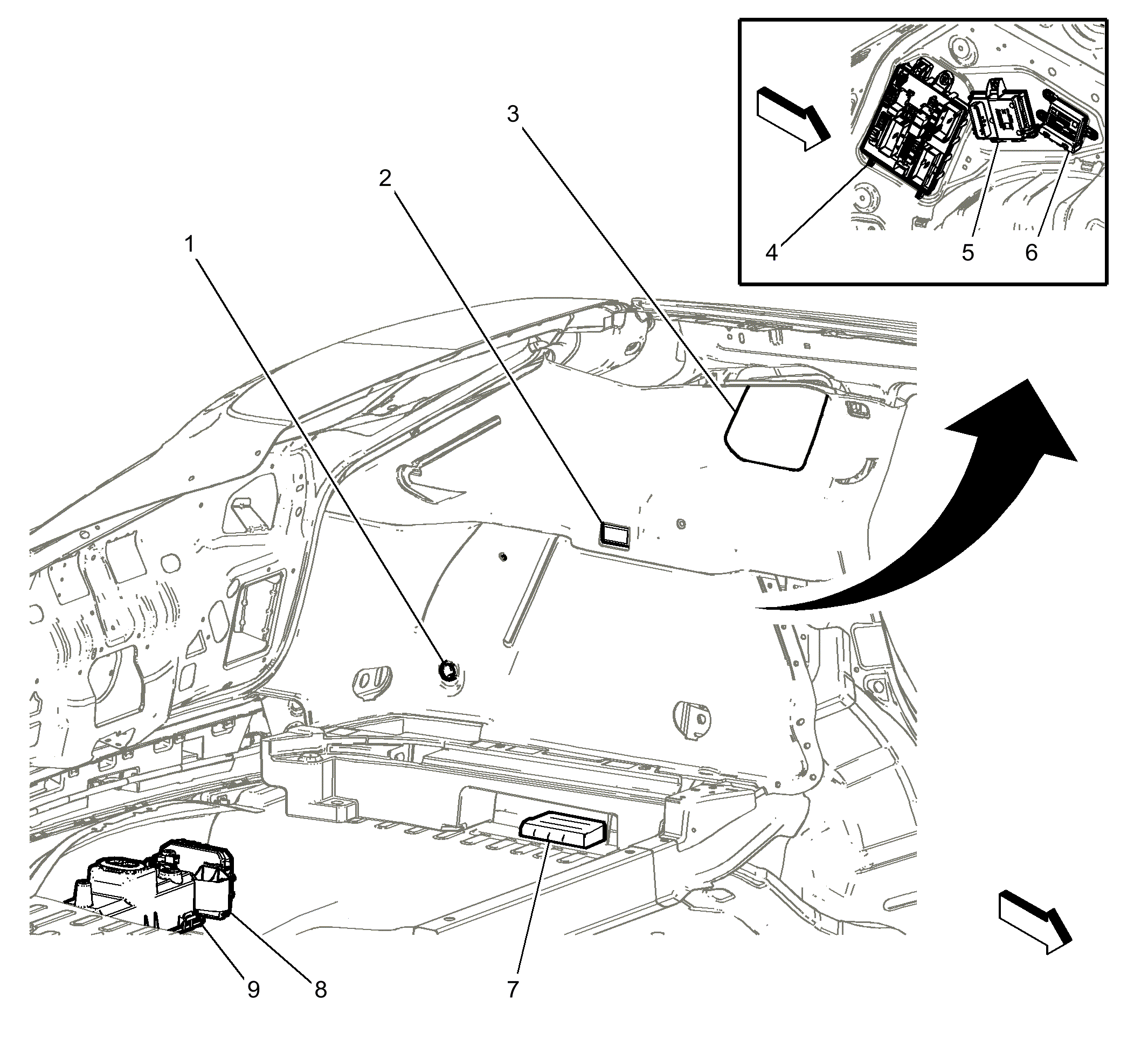

Left Side of the Luggage Compartment Components (1 of 2)
Left Side of the Luggage Compartment Components (1 of 2)
| Items |
|---|
| 1: X80C Accessory Power Receptacle - Cargo X80C Accessory Power Receptacle - Cargo |
| 2: E33L Cargo Lamp - Left E33L Cargo Lamp - Left |
| 3: B67B Ultrasonic Intrusion Sensor 2 (UA2 or UTC) B67B Ultrasonic Intrusion Sensor 2 |
| 4: X53A Fuse Block - Rear Body X53A Fuse Block - Rear Body X1X53A Fuse Block - Rear Body X2X53A Fuse Block - Rear Body X3X53A Fuse Block - Rear Body X4 |
| 5: K111 Fuel Pump Driver Control Module K111 Fuel Pump Driver Control Module |
| 6: K41 Front and Rear Parking Assist Control Module (UD5) K41 Parking Assist Control Module X1 (UD5)K41 Parking Assist Control Module X2 (UD5)K41 Parking Assist Control Module X3 (UD5) |
| 7: K19 Suspension Control Module (F45) K19 Suspension Control Module (F45) |
| 8: K39 Liftgate Control Module (TB5) K39 Liftgate Control Module X1 (TB5)K39 Liftgate Control Module X2 (TB5)K39 Liftgate Control Module X3 (TB5) |
| 9: M17 Liftgate Motor Assembly (TB5) M17 Liftgate Motor Assembly (TB5) |
