Rear Window Wiper Motor Replacement

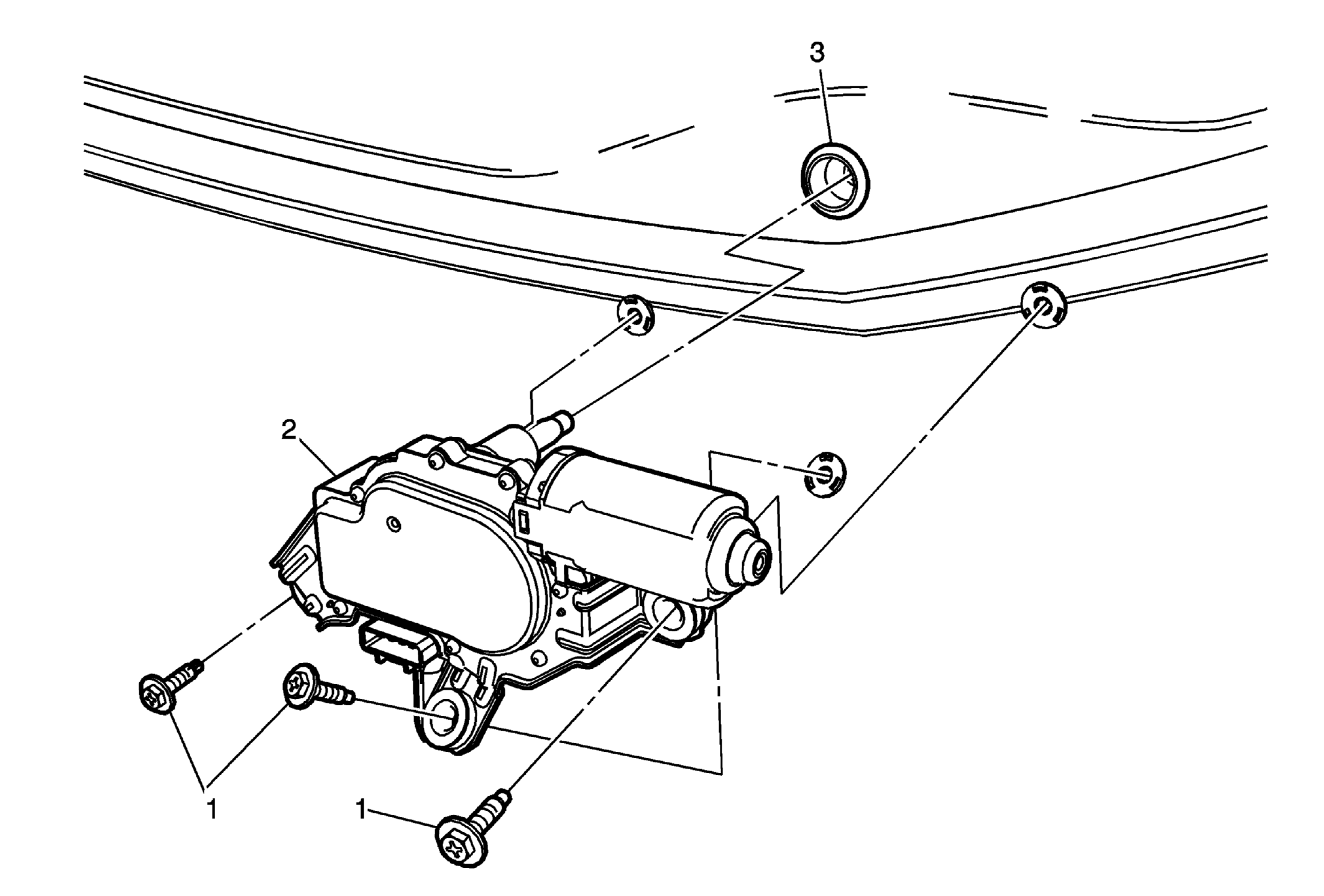

Fig 1: View Of Rear Window Wiper Motor & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear liftgate wiper arm assembly. Refer to Rear Window Wiper Arm Replacement . Remove the liftgate interior trim panels. Refer to Liftgate Upper Trim Finish Panel Replacement , and Liftgate Lower Trim Finish Panel Replacement .
1	Rear Window Wiper Motor Bolts (Qty: 3) Tighten 9 N.m (80 lb in)
2	Rear Window Wiper Motor TIP: Disconnect the wiper motor electrical connectors. TIP: Lubricate the wiper motor shaft with windshield washer solvent.
3	Rear Window Wiper Motor Pivot Shaft Seal TIP: Ensure the gasket is indexed properly to the rear liftgate window.
