Rear Seat Back Cushion Heater Replacement

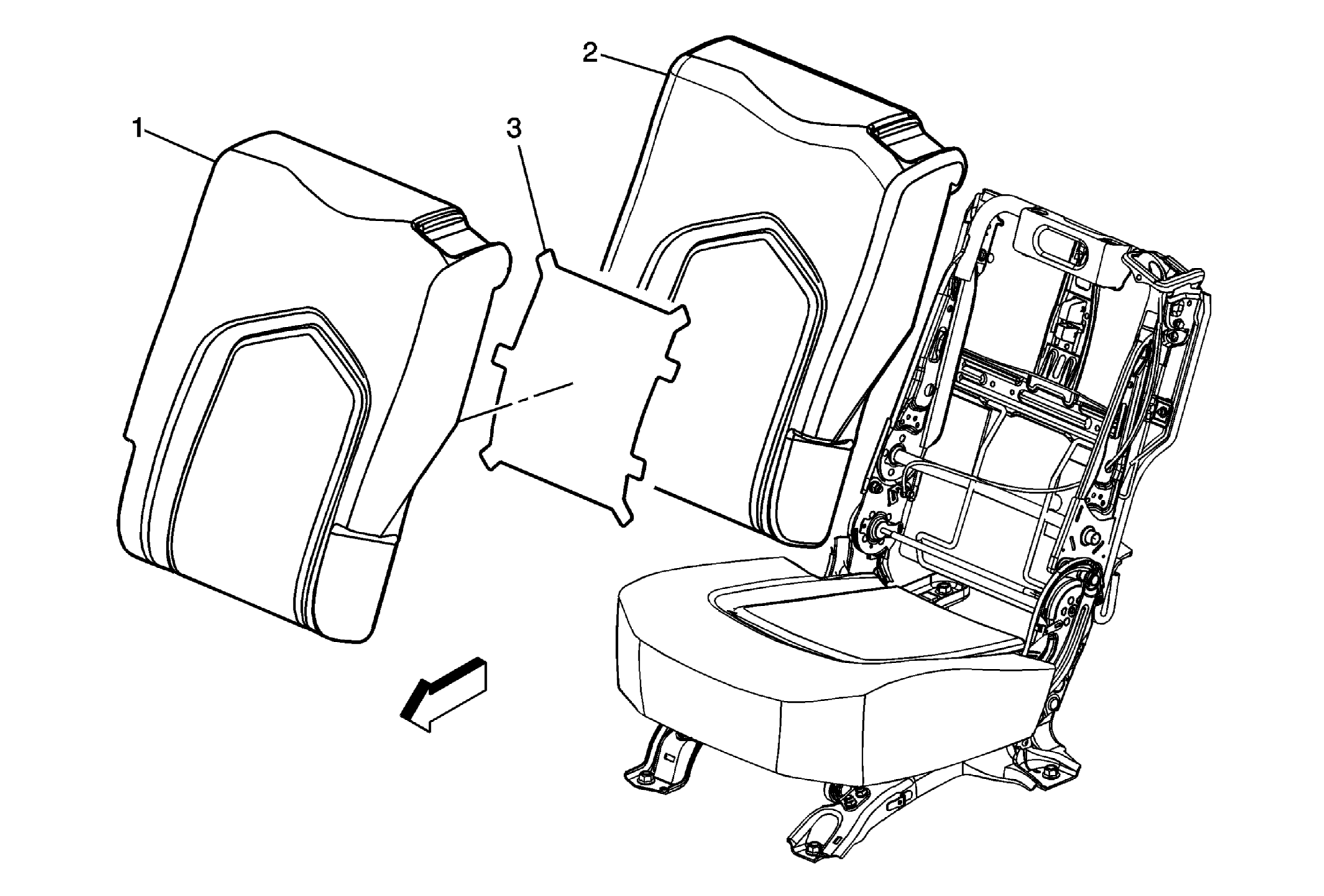

Fig 1: View Of Rear Seat Back Cushion Heater, Pad & Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat. Refer to Rear Seat Removal and Installation . Remove the rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement (40 Percent Seat) , Rear Seat Cushion Cover and Pad Replacement (60 Percent Seat) .
1	Rear Seat Back Cushion Cover Procedure Separate the seat cushion cover from the seat cushion pad.
2	Rear Seat Back Cushion Pad
3	Rear Seat Back Cushion Heater Procedure Disconnect the electrical connector. Remove the heater element leaving the old adhesive strips intact on the seat cushion trim. The new seat heater adhesive strips will be placed over the old adhesive strips.
