Rear Seat Shoulder Belt Guide Opening Bezel Replacement

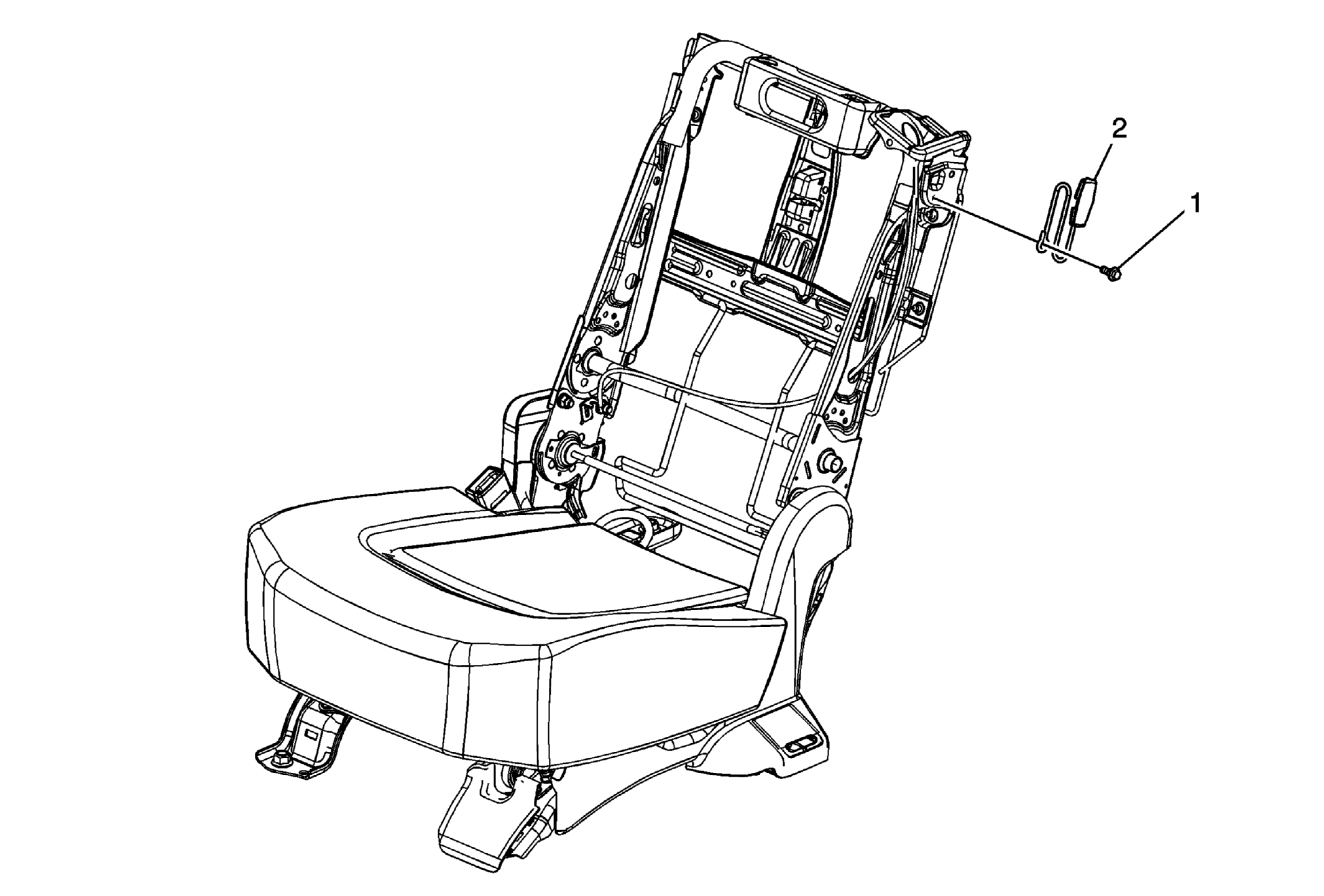

Fig 1: Identifying Rear Seat Shoulder Belt Guide Opening Bezel & Retainer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to Rear Seat Removal and Installation . Remove the rear seat cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (40 Percent Seat) .
1	Rear Seat Belt Shoulder Guide Opening Bezel Retainer CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Rear Seat Belt Shoulder Guide Opening Bezel

Callout

Component Name

Preliminary Procedures

Rear Seat Belt Shoulder Guide Opening Bezel Retainer

CAUTION:

Tighten
2 N.m (18 lb in)

Rear Seat Belt Shoulder Guide Opening Bezel
