Driver or Passenger Seat Back Cushion Pad Wire Replacement

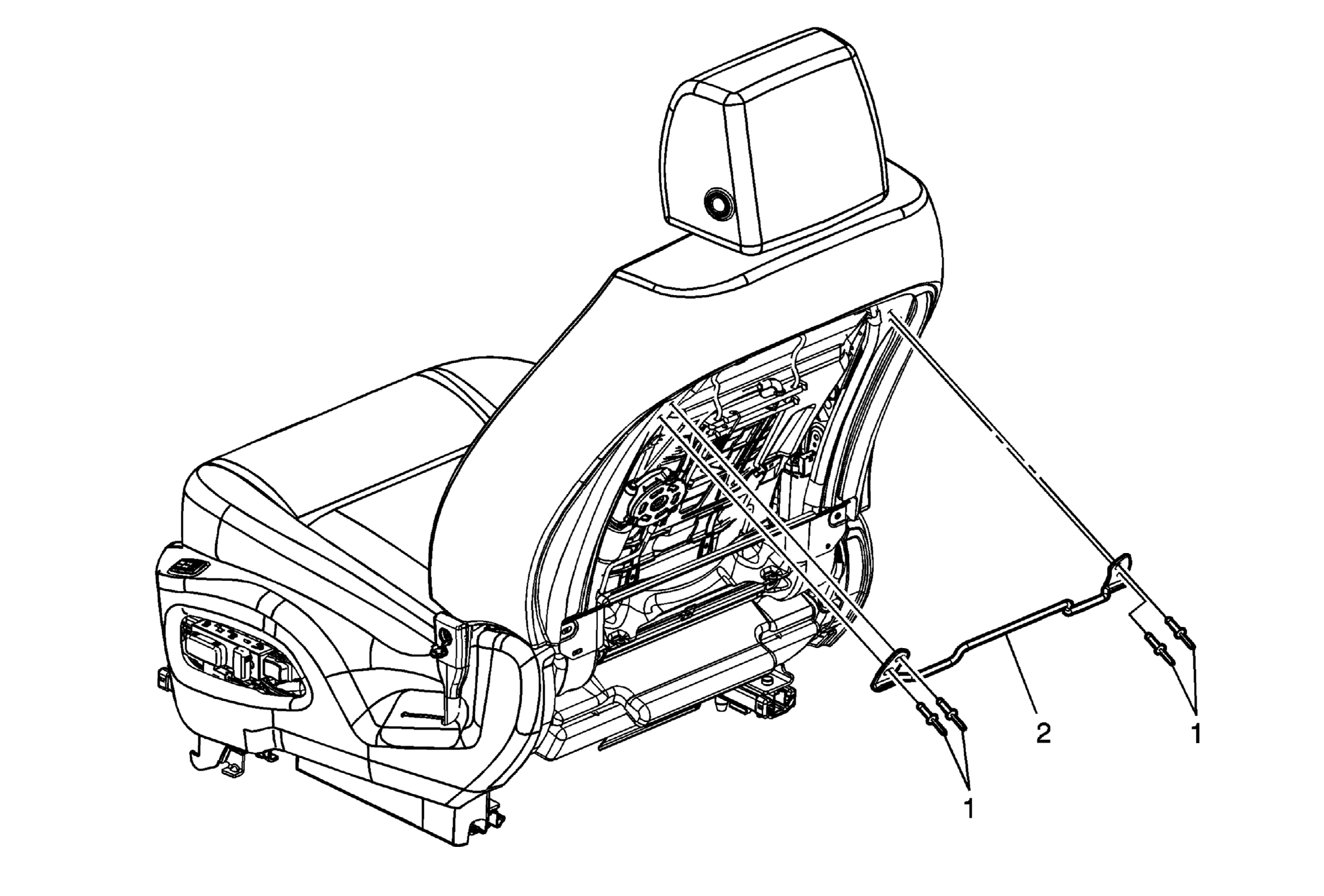

Fig 1: Identifying Driver Or Passenger Seat Back Cushion Pad Wire & Rivets

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the video display, if equipped. Refer to Video Display Replacement . Remove the driver or passenger seat back cushion finish cover. Refer to Front Seat Back Cushion Finish Panel Replacement (without UWG) , Front Seat Back Cushion Finish Panel Replacement (with UWG) .
1	Front Seat Back Cushion Pad Wire Rivet (Qty: 4) WARNING: Use the proper eye protection when drilling to prevent metal chips from causing physical injury. Procedure Unhook seat back cushion cover J-hook from pad wire. Drill out all of the guide rivets before removing the pad wire.
2	Front Seat Back Cushion Pad Wire Procedure When re-installing the cushion pad wire, re-rivet at the same location on the cushion frame with new rivets.

Callout

Component Name

Preliminary Procedure

Remove the video display, if equipped. Refer to Video Display Replacement .
Remove the driver or passenger seat back cushion finish cover. Refer to Front Seat Back Cushion Finish Panel Replacement (without UWG) , Front Seat Back Cushion Finish Panel Replacement (with UWG) .

Front Seat Back Cushion Pad Wire Rivet (Qty: 4)

WARNING:

Use the proper eye protection when drilling to prevent metal chips from causing physical injury.

Procedure

Unhook seat back cushion cover J-hook from pad wire.
Drill out all of the guide rivets before removing the pad wire.

Front Seat Back Cushion Pad Wire
Procedure
When re-installing the cushion pad wire, re-rivet at the same location on the cushion frame with new rivets.
