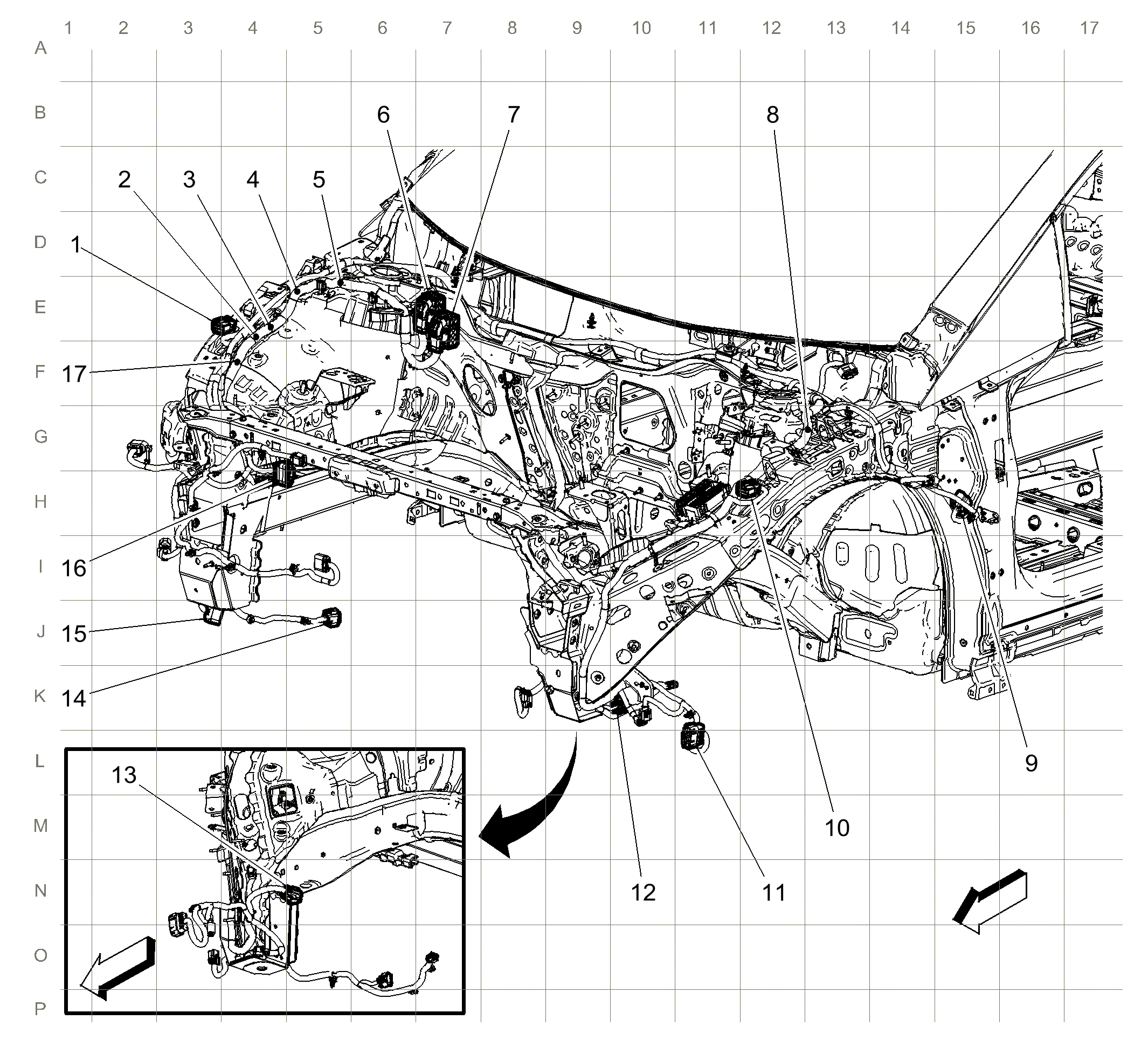

| 1:
X120 X120 Forward Lamp Harness to Right Headlamp Assembly |
| 2:
J108 |
| 3:
J107 |
| 4:
J113 |
| 5:
J105 |
| 6:
X105 X105 Forward Lamp Harness to Body Harness |
| 7:
X107 X107 Forward Lamp Harness to Body Harness |
| 8:
J109 |
| 9:
X98 Hybrid/EV Battery Charger Receptacle X98 Hybrid/EV Battery Charger Receptacle |
| 10:
X110 X110 Forward Lamp Harness to Left Headlamp Assembly |
| 11:
X100 X100 Forward Lamp Harness to Front Fascia Harness |
| 12:
X108 X108 Forward Lamp Harness to Left Front Wheel Speed Sensor Jumper |
| 13:
X104 X104 Cooling Fans to Cooling Fan Harness |
| 14:
X109 X109 Forward Lamp Harness to Right Front Wheel Speed Sensor Jumper |
| 15:
X180 X180 Forward Lamp Harness to Auxiliary Heater Coolant Pump Harness |
| 16:
X103 X103 Forward Lamp Harness to Cooling Fan Harness |
| 17:
J112 |
