X105 Forward Lamp Harness to Body Harness

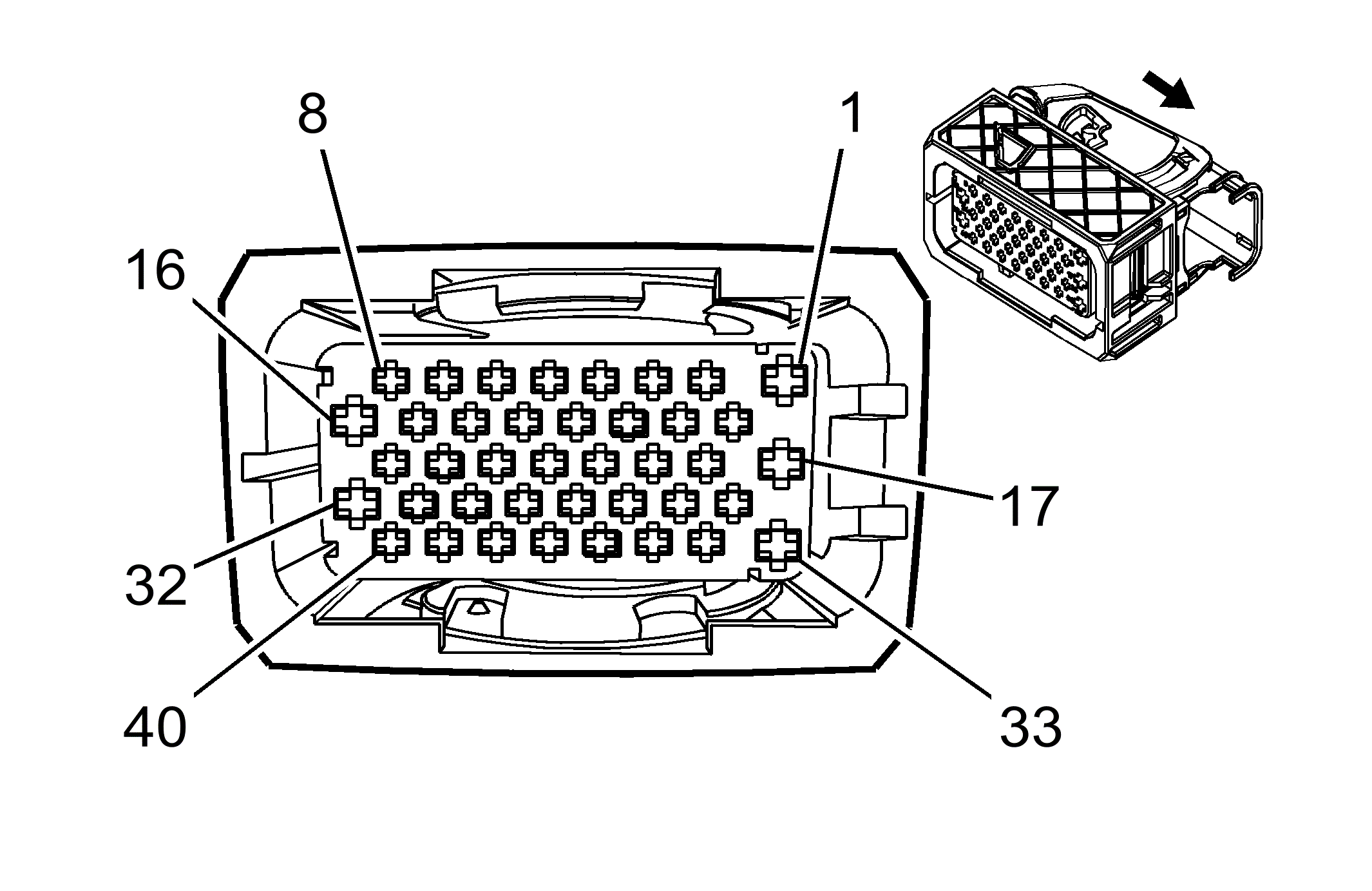

Connector Part Information Harness Type: OEM Connector: 13257305 Service Connector: 13576549 Description: 40-Way F DSQ 1.5, ATS 2.8 Series, Sealed (BK)	Connector Part Information Harness Type: OEM Connector: 13603205 Service Connector: 13576552 Description: 40-Way M 1.5, 2.8 Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	Pending	Pending	Pending	Not Available	Not Available	Not Available	Not Available

X105 Forward Lamp Harness to Body Harness

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.5	WH/BU	5986	I	-	Serial Data Communication Enable	1	0.5	WH/BU	5986	I	-
2	0.5	GY	830	I	-	Wheel Speed Sensor Signal Left Front	2	0.5	GY	830	I	-
3	0.5	BK/GY	873	I	-	Left Front Wheel Speed Sensor Low Reference	3	0.5	BK/GY	873	I	-
4	0.5	YE	872	I	-	Wheel Speed Sensor Signal Right Front	4	0.5	YE	872	I	-
5	0.5	BK/YE	833	I	-	Wheel Speed Sensor Low Reference Right Front	5	0.5	BK/YE	833	I	-
6-7	-	-	-	-	-	Not Occupied	6-7	-	-	-	-	-
8	0.5	GY/BK	3437	I	-	Shutter Valve Solenoid Control	8	0.35	BN	3891	I	-
9	0.5	OG/GN	1409	I	-	Right Front Discriminating Sensor Signal	9	0.5	OG/GN	1409	I	-
10	0.5	GN	5600	I	-	Right Front Discriminating Sensor Low Reference	10	0.5	GN	5600	I	-
11	0.5	GY/BU	1113	I	-	Left Front Damping Servo Control	11	0.5	GY/BU	1113	I	-
12	0.5	BN/WH	1107	I	-	Left Front Damping Servo Supply Voltage	12	0.5	BN/WH	1107	I	-
13	0.5	GY/GN	3954	I	-	Control Pilot Signal 1	13	0.5	GY/GN	3954	I	-
14	0.5	BU/YE	3953	I	-	Proximity Status Signal 1	14	0.5	BU/YE	3953	I	-
15	0.5	BU/WH	3977	I	-	Accessory Wakup Serial Data 2	15	0.35	BU/WH	3977	I	-
16	0.5	GY/WH	1117	I	-	Right Front Damping Servo Control	16	0.5	GY/WH	1117	I	-
17	0.5	GY/RD	1116	I	-	Right Front Damping Servo Supply Voltage	17	0.5	BN/BU	1116	I	-
18	0.5	BU/BN	3787	I	-	High Voltage Energy Management Communication Enable	18	0.35	BU/BN	3787	I	-
19	0.5	BN	4357	I	-	Left Auxiliary DRL Supply Voltage	19	0.35	BN	4357	I	-
20	0.5	BU/GN	6433	I	-	CAN Bus High Serial Data	20	0.5	BU/GN	6433	I	-
21	0.5	WH	6432	I	-	CAN Bus Low Serial Data	21	0.5	WH	6432	I	-
22	0.5	BK/BN	1099	I	-	Left Front Wheel Damping Accelerometer Low Reference	22	0.5	BK/BN	1099	I	-
23	0.5	WH	1100	I	-	Left Front Wheel Damping Accelerometer Signal	23	0.5	WH	1100	I	-
24	0.5	YE/RD	1817	I	-	Left Front Wheel Accelerometer Voltage Reference	24	0.5	YE/RD	1817	I	-
25	0.5	GN/GY	3853	I	-	Cabin Heater Coolant Motor Enable	25	0.35	GN/GY	3853	I	-
26	0.5	VT/YE	3854	I	-	Cabin Heater Coolant Motor Control	26	0.35	VT/YE	3854	I	-
27	0.5	BN/BU	3852	I	-	Cabin Heater Coolant Motor Feedback Signal	27	0.35	BN/BU	3852	I	-
28	0.75	RD/WH	3440	I	-	Battery Positive Voltage	28	0.75	RD/WH	3440	I	-
29	0.5	BK/BN	1099	I	-	Left Front Wheel Damping Accelerometer Low Reference	29	0.5	BK/BN	1099	I	-
30	0.5	WH	1106	I	-	Right Front Wheel Damping Accelerometer Signal	30	0.5	WH	1106	I	-
31	0.5	YE/RD	1817	I	-	Left Front Wheel Accelerometer Voltage Reference	31	0.5	YE/RD	1817	I	-
32	2.5	BN/GY	29	I	-	Horn Control	32	2.5	BN/GY	29	I	-
33	2.5	RD/YE	3740	I	-	Battery Positive Voltage	33	2.5	RD/YE	3740	I	-
34	0.5	GY/GN	4338	I	-	Pedestrian Friendly Alert Speaker Control (+)	34	0.5	GY/GN	4338	I	-
35	0.5	GY	4356	I	-	Right Auxiliary DRL Supply Voltage	35	0.35	GY	4356	I	-
36	0.5	BU	2500	I	-	High Speed GMLAN Serial Data (+) (1)	36	0.5	BU	2500	I	-
37	0.5	WH	2501	I	-	High Speed GMLAN Serial Data (-) (1)	37	0.5	WH	2501	I	-
38	0.5	BU	2500	I	-	High Speed GMLAN Serial Data (+) (1)	38	0.5	BU	2500	I	-
39	0.5	WH	2501	I	-	High Speed GMLAN Serial Data (-) (1)	39	0.5	WH	2501	I	-
40	0.5	VT/BN	4337	I	-	Pedestrian Friendly Alert Speaker Control (-)	40	0.5	VT/BN	4337	I	-
