Front Bumper Fascia Removal and Installation
Courtesy of GENERAL MOTORS COMPANY Front Bumper Fascia Removal and Installation

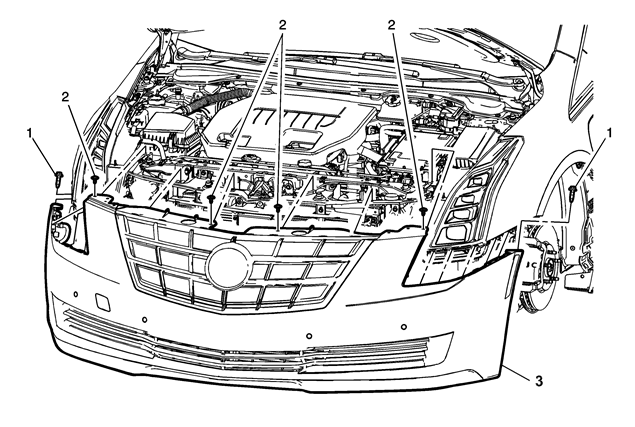

| Callout |
Component Name |
|
Preliminary Procedures
- Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement
.
- Remove the front fascia extension. Refer to Front Bumper Fascia Extension Replacement
- Remove the side four front screws from the front wheelhouse liners. Refer to Front Wheelhouse Liner Replacement
.
|
| 1 |
Front Bumper Fascia to Fender Bolt (Qty: 2)
Tighten
2.5 (22 lb in) |
| 2 |
Front Bumper Fascia Bolt (Qty: 4)
Tighten
2.5 (22 lb in) |
| 3 |
Front Bumper Fascia Lower Push-In Retainer (Qty: 2) |
| 4 |
Front Bumper Fascia Procedure
- Carefully push a small nylon wedge between the fascia and the front fascia retainers. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the front fascia retainers of the fender.
- Disconnect any electrical connectors.
- Transfer any parts as needed.
|
