Front Compartment Front Sight Shield Replacement

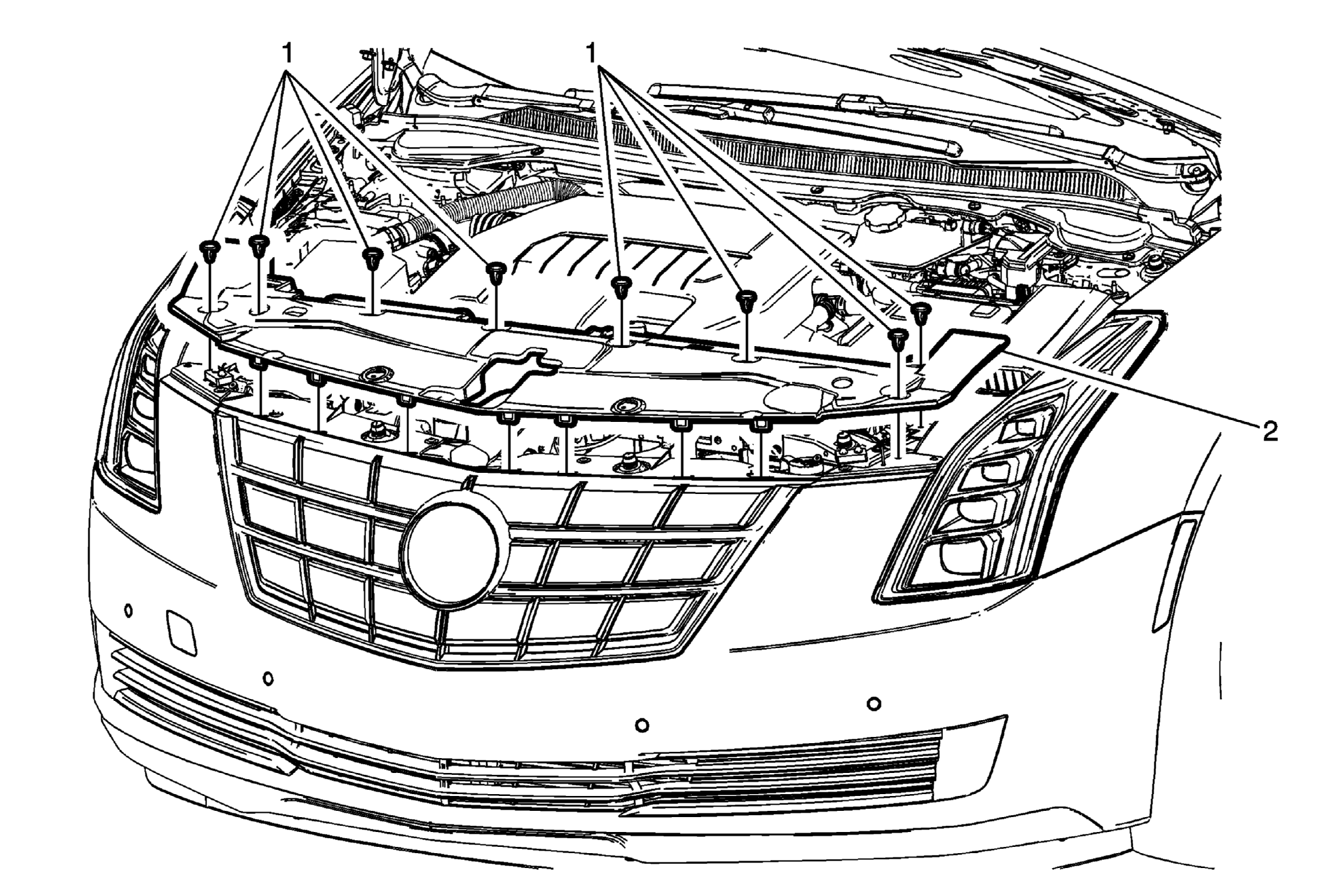

Fig 1: Front Compartment Front Sight Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Compartment Front Sight Shield Push-Pin Retainer (Qty: 8)
2	Front Compartment Front Sight Shield Procedure Using a trim stick/tool with due-care, release the seven front retainer tabs located on the front edge of the shield. Once all seven retainers are released remove the front compartment front sight shield from the front to the back.

Callout

Component Name

Front Compartment Front Sight Shield Push-Pin Retainer (Qty: 8)

Front Compartment Front Sight Shield

Procedure

Using a trim stick/tool with due-care, release the seven front retainer tabs located on the front edge of the shield.
Once all seven retainers are released remove the front compartment front sight shield from the front to the back.
