Front Bumper Fascia Extension Replacement
Front Bumper Fascia Extension Replacement

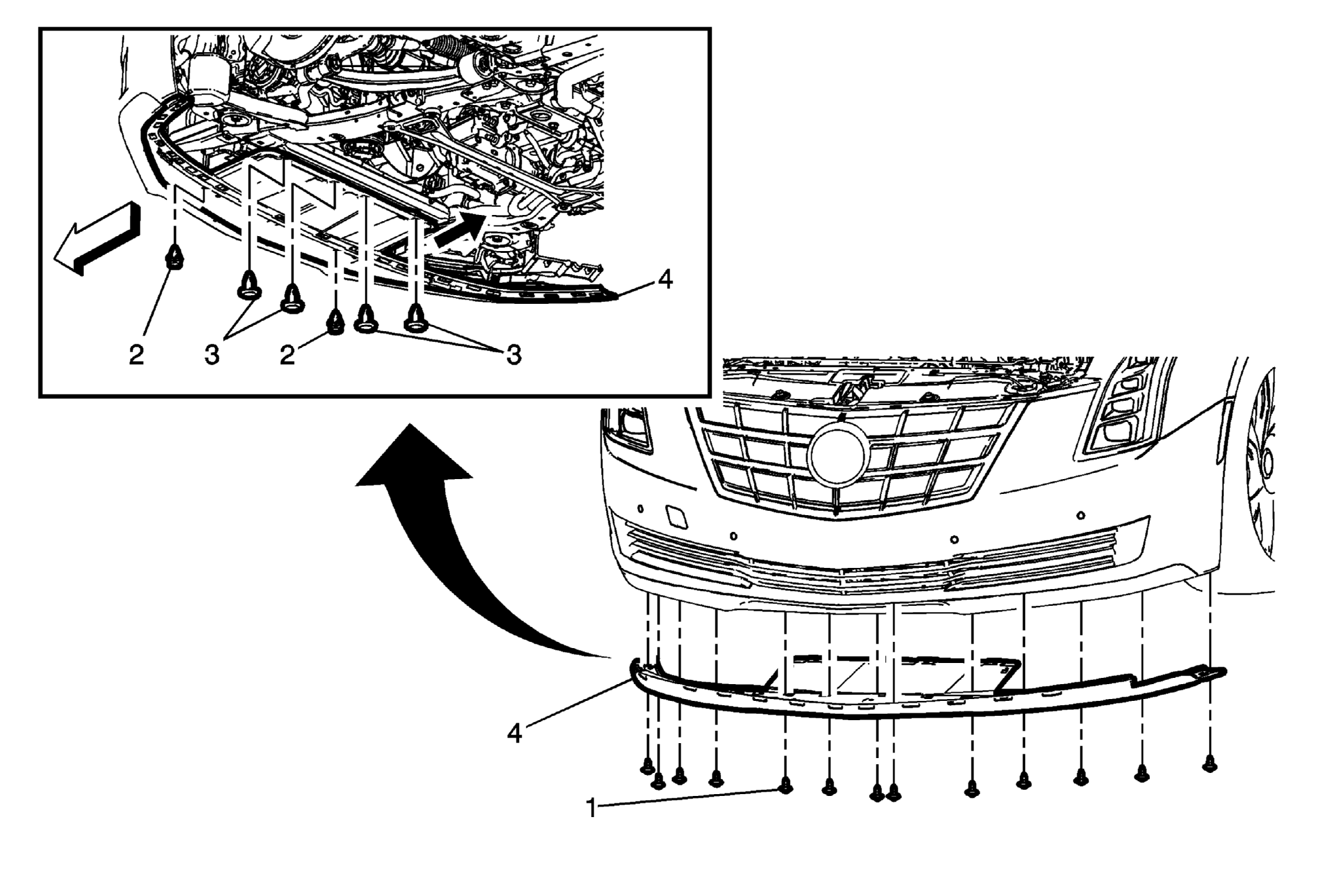

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle . Refer to Lifting and Jacking the Vehicle |
|
| 1 | Front Bumper Fascia Extension Screws (Qty 13)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 (22 lb in) |
| 2 | Front Bumper Fascia Extension Retainer Push-in (Qty 2) |
| 3 | Front Bumper Fascia Extension Retainer (Qty 4) |
| 4 | Front Bumper Fascia Extension |
