Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine sight shield. Refer to Intake Manifold Sight Shield Replacement .
  2. Remove the front and rear sections of the supercharger inlet duct assembly. Refer to Supercharger Inlet Duct Assembly Replacement .

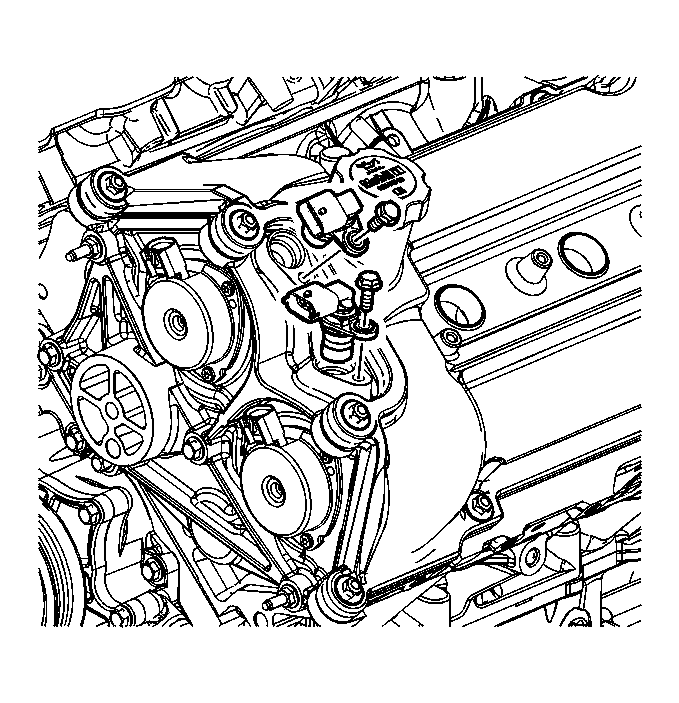

    3. Fig 1: View Of Left Intake Camshaft Sensor & Left Exhaust Camshaft Sensor
    GM928233Courtesy of GENERAL MOTORS CORP.
  3. Remove the left exhaust camshaft sensor. Refer to Camshaft Position Sensor Replacement - Bank 2 (Left Side) Exhaust .
  4. Remove the left intake camshaft sensor. Refer to Camshaft Position Sensor Replacement - Bank 2 (Left Side) Intake .
  5. Remove the power steering reservoir.
  6. Remove the left camshaft cover. Refer to Camshaft Cover Replacement - Left Side .
  7. Remove the drive belt tensioner. Refer to Drive Belt Tensioner Replacement - Air Conditioning, Power Steering, and Water Pump .
    8. Fig 2: View Of Camshaft Position Actuator Magnet & Bolts
    GM1254509Courtesy of GENERAL MOTORS CORP.
  8. Remove the left intake camshaft position actuator solenoid bolts.
  9. Remove the left intake camshaft position actuator solenoid.
  10. Remove the left intake camshaft position actuator solenoid alignment plug and discard.
    11. Fig 3: View Of Left Exhaust Camshaft Position Actuator Solenoid
    GM1239401Courtesy of GENERAL MOTORS CORP.
  11. Remove the left exhaust camshaft position actuator solenoid bolts.
  12. Remove the left exhaust camshaft position actuator solenoid.
  13. Remove the left exhaust camshaft position actuator solenoid alignment plug and discard.

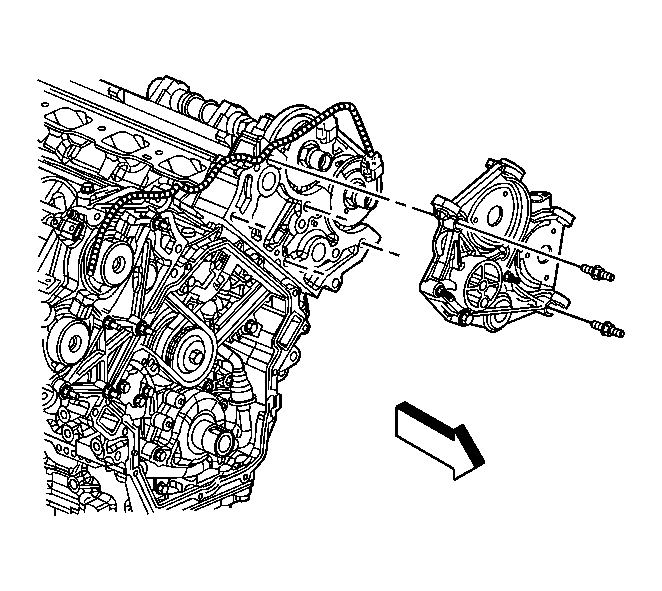

    14. Fig 4: View Of Left Camshaft Position Actuator Housing
    GM1276309Courtesy of GENERAL MOTORS CORP.
  14. Remove the left camshaft position actuator housing bolts.
  15. Remove the left camshaft position actuator housing.
