Automatic Transmission Control Replacement (Right Hand Drive)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

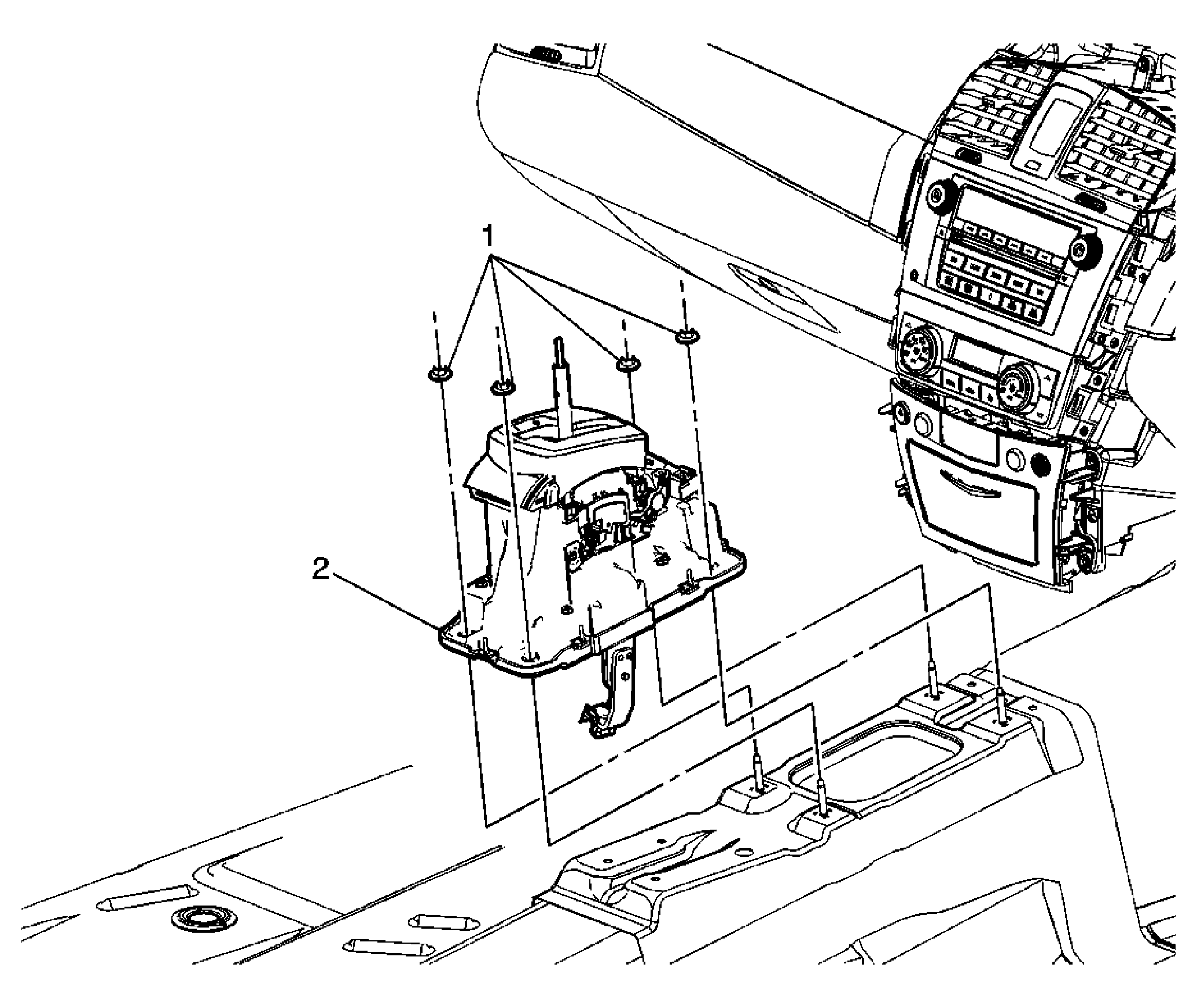

Fig 1: Automatic Transmission Control (Right Hand Drive) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Disconnect the shift linkage from the shift control. Refer to Shift Control Linkage Replacement (RWD) or Shift Control Linkage Replacement (AWD) . Lower the vehicle. Remove the shift control knob. Refer to Transmission Control Lever Knob Replacement . Remove the center console assembly. Refer to Front Floor Console Replacement (Left Hand Drive) or Front Floor Console Replacement (Right Hand Drive) .
1	Shift Control Nuts (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 12 N.m (106 lb in)
2	Shift Control Procedure Disconnect the electrical connector from the shift control. Adjust the shift control linkage after installing the shift control. Refer to Shift Control Linkage Adjustment (Rear Wheel Drive) or Shift Control Linkage Adjustment (All Wheel Drive) .

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Disconnect the shift linkage from the shift control. Refer to Shift Control Linkage Replacement (RWD) or Shift Control Linkage Replacement (AWD) .
Lower the vehicle.
Remove the shift control knob. Refer to Transmission Control Lever Knob Replacement .
Remove the center console assembly. Refer to Front Floor Console Replacement (Left Hand Drive) or Front Floor Console Replacement (Right Hand Drive) .

Shift Control Nuts (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 12 N.m (106 lb in)

Shift Control

Procedure

Disconnect the electrical connector from the shift control.
Adjust the shift control linkage after installing the shift control. Refer to Shift Control Linkage Adjustment (Rear Wheel Drive) or Shift Control Linkage Adjustment (All Wheel Drive) .
