Front Floor Console Replacement (Right Hand Drive)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

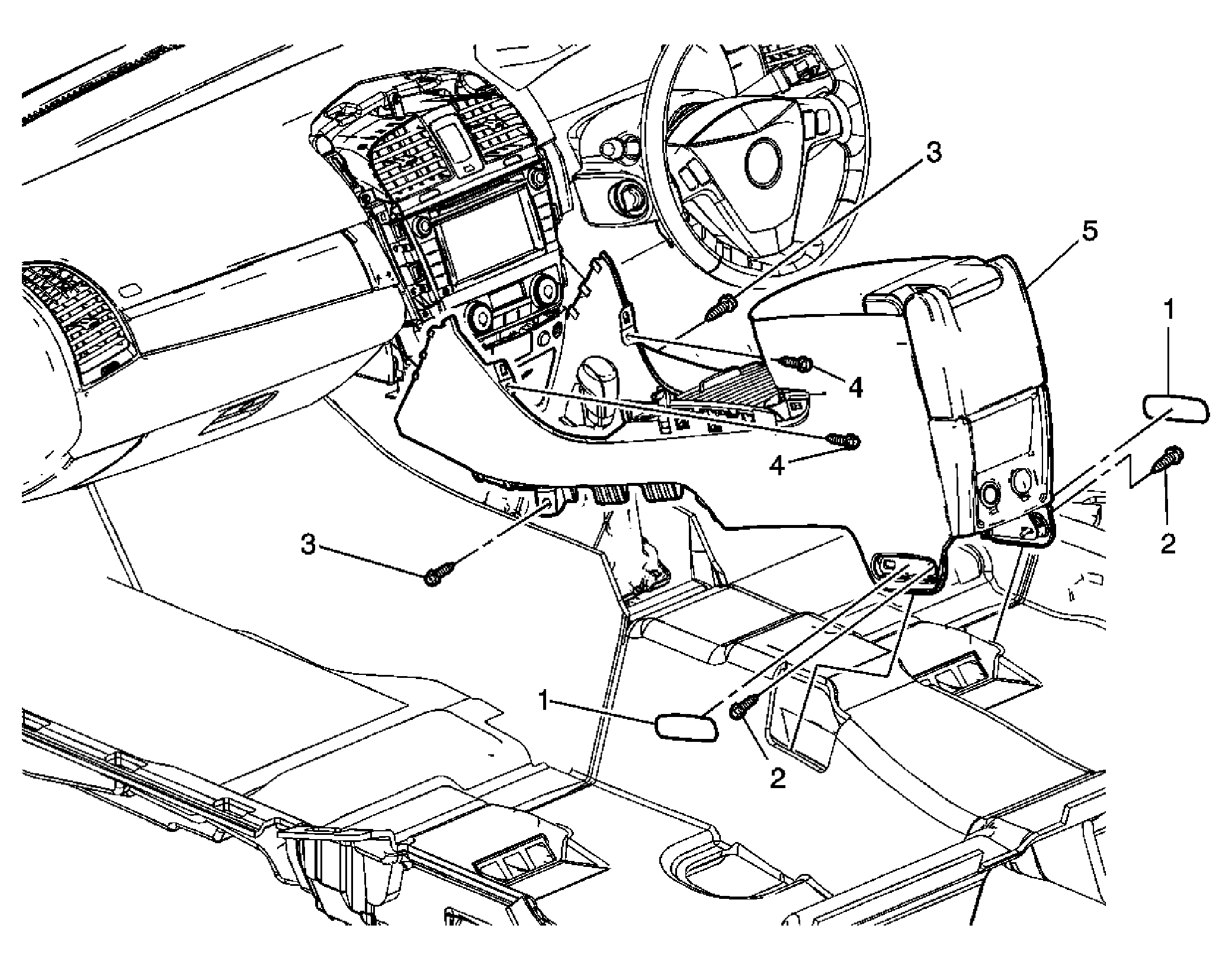

Fig 1: Front Floor Console (Right Hand Drive) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Left Hand Drive) or Instrument Panel Accessory Trim Plate Replacement (Right Hand Drive) . Remove the console shift lever bezel. Refer to Console Shift Lever Bezel Replacement (Left Hand Drive) or Console Shift Lever Bezel Replacement (Right Hand Drive) .
1	Console Bolt Cover (Qty: 2) Tip: Use a flat-bladed plastic trim tool to remove the covers.
2	Console Rear Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Procedure: Move the front seats to the full forward position to access the rear bolts. Tighten: 9 N.m (80 lb in)
3	Console Front Bolt (Qty: 2) Tighten: 9 N.m (80 lb in) Procedures Move the front seats to the full rearward position to access the rear bolts. Pull the carpet away from the console to access the front console bolts.
4	Console Screws (Qty: 2) Tighten: 2 N.m (18 lb in)
5	Console Assembly Procedures Disconnect the electrical connections. With the add of an assistant remove the console from the vehicle. When replacing the console assembly, transfer all necessary components.
