Transmission Control Lever Knob Replacement

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

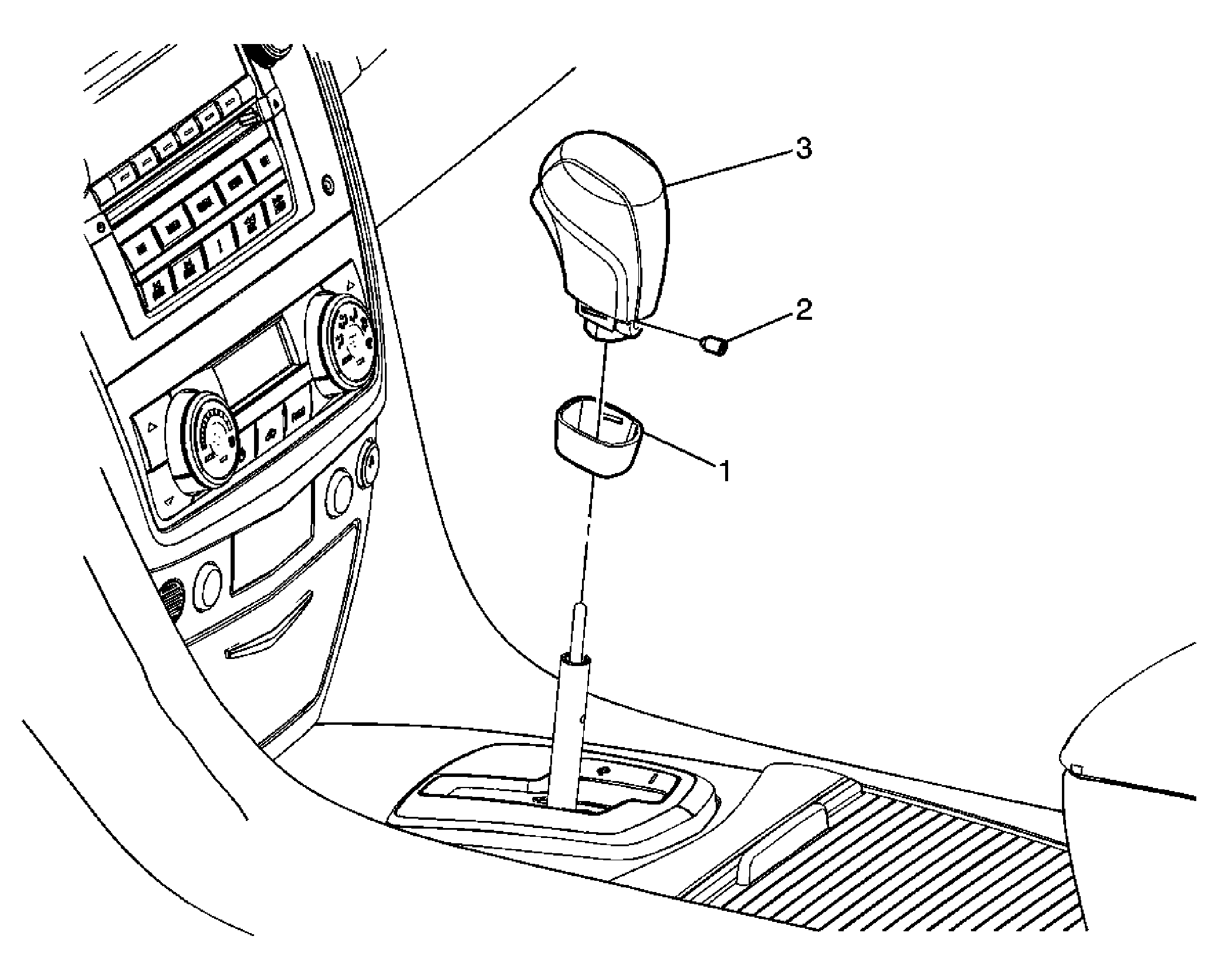

Fig 1: Transmission Control Lever Knob Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Shift Control Knob Bezel Tip: Remove the bezel by carefully inserting a small flat-bladed tool between the bezel (1) and the shift knob (3). Apply careful downward pressure to the bezel to separate the bezel from the shift knob. Install the bezel by lifting the bezel (1) up to the shift knob (3) until a click sound is heard indicating the bezel is secured to the shift knob.
2	Shift Control Knob Screw NOTE: Refer to Fastener Notice . Tip: Loosen the shift control knob screw approximately 3-4 turns. It is not necessary to fully remove the screw from the shift control knob. Tighten: 2 N.m (18 lb in)
3	Shift Control Knob
