Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Left Hand Drive)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

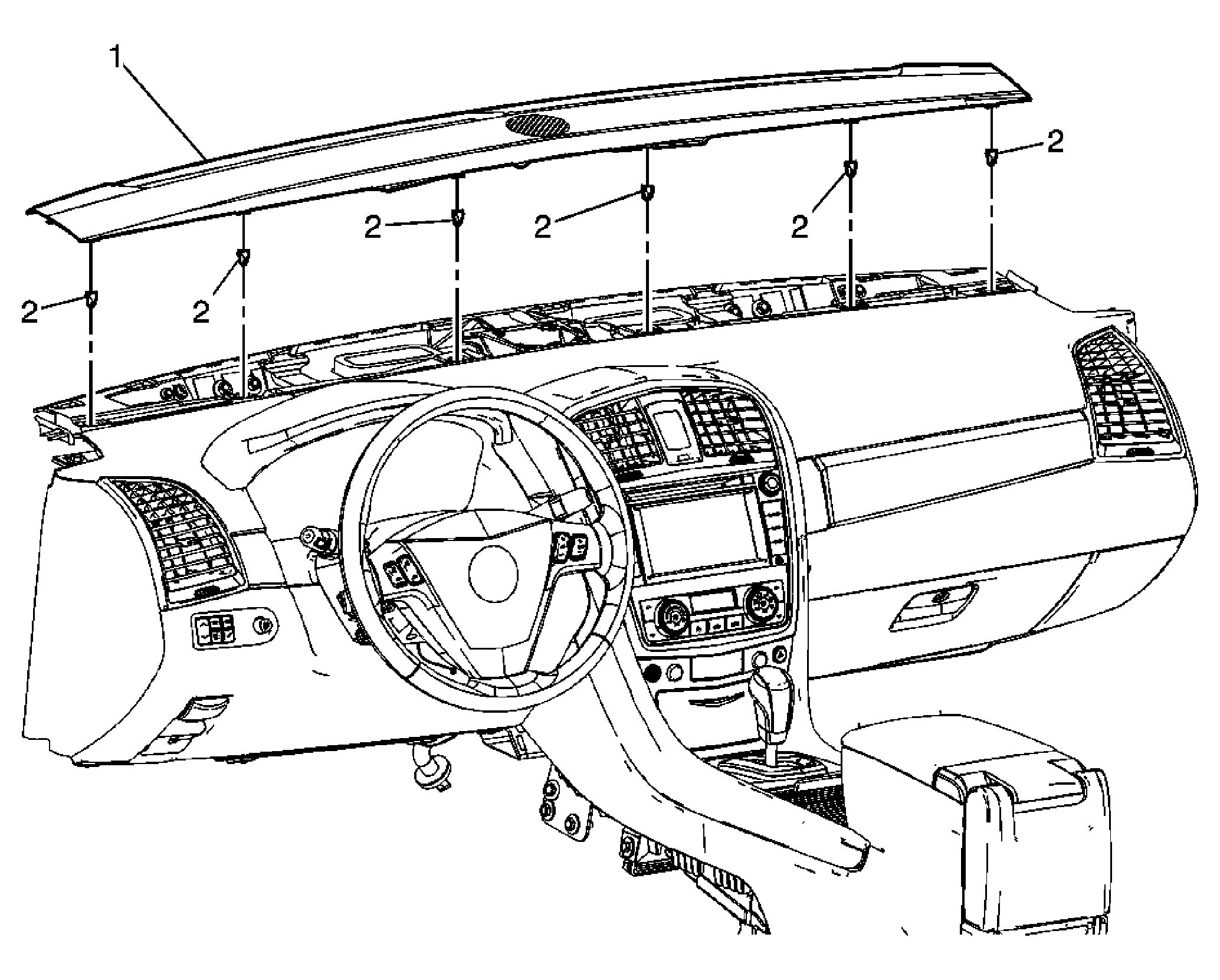

Fig 1: Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille (LHD) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the windshield garnish moldings. Refer to Windshield Pillar Garnish Molding Replacement .
1	Instrument Panel Defroster Grill Trim Panel Assembly Procedure Use a plastic trim tool to aid in the removal of the defroster grill trim panel. Disconnect the electrical connections. When replacing the instrument panel defroster grill trim panel assembly, transfer all necessary components.
2	Retainer Clips (Qty: 6)

Callout

Component Name

Preliminary Procedure:
Remove the windshield garnish moldings. Refer to Windshield Pillar Garnish Molding Replacement .

Instrument Panel Defroster Grill Trim Panel Assembly

Procedure

Use a plastic trim tool to aid in the removal of the defroster grill trim panel.
Disconnect the electrical connections.
When replacing the instrument panel defroster grill trim panel assembly, transfer all necessary components.

Retainer Clips (Qty: 6)
