Console Shift Lever Bezel Replacement (Left Hand Drive)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

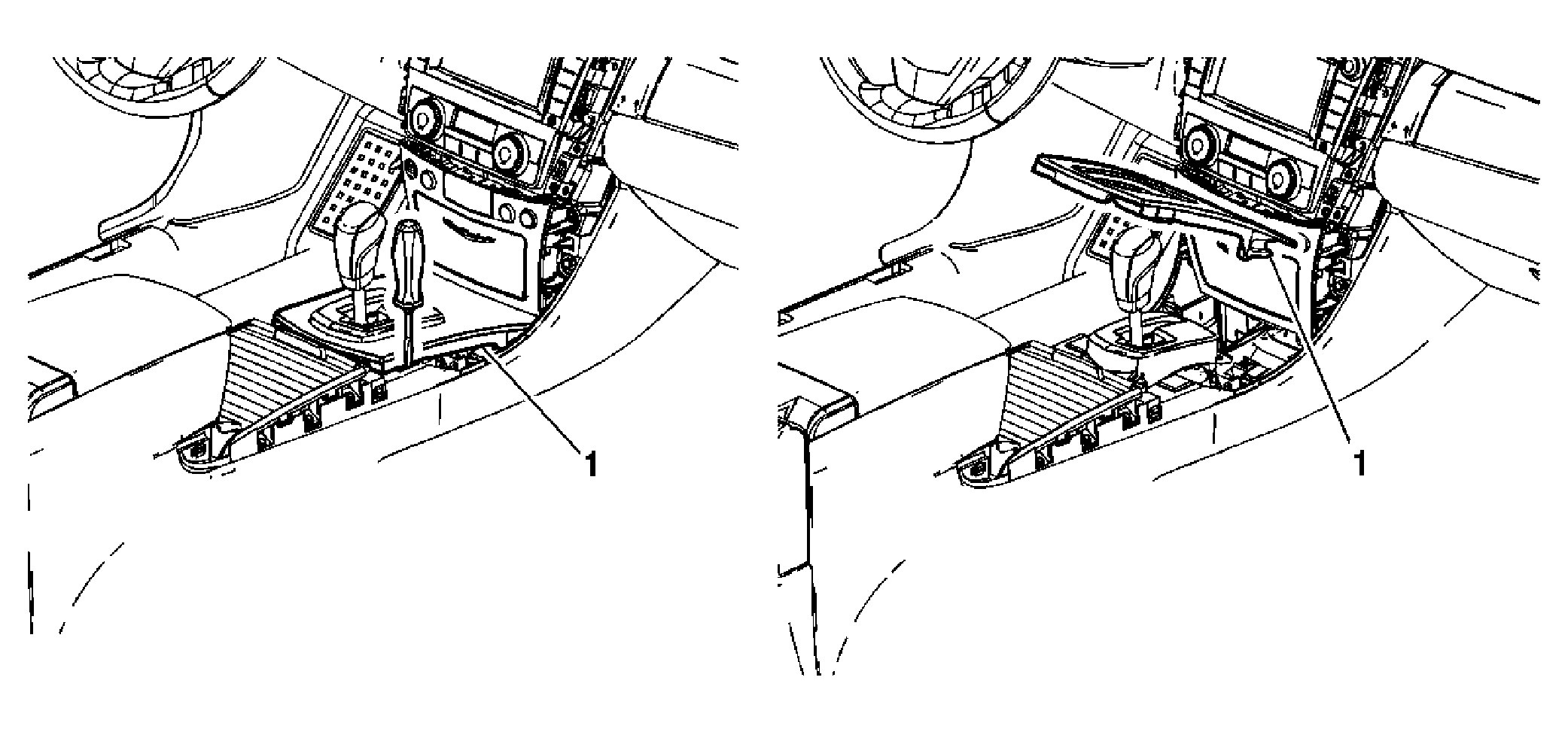

Fig 1: Console Shift Lever Bezel (Left Hand Drive) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the console upper trim plate. Refer to Front Floor Upper Console Trim Plate Replacement (Left Hand Drive) or Front Floor Upper Console Trim Plate Replacement (Right Hand Drive) . Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Left Hand Drive) or Instrument Panel Accessory Trim Plate Replacement (Right Hand Drive) .
1	Console Shift Lever Bezel Assembly Procedure Use a flat-bladed tool in order to release the tabs securing the shift lever bezel to the console assembly. Pull rearward and remove the shift lever bezel from the vehicle. Disconnect the electrical connections. If replacing the shift lever bezel, transfer all necessary components.

Callout

Component Name

Preliminary Procedures

Remove the console upper trim plate. Refer to Front Floor Upper Console Trim Plate Replacement (Left Hand Drive) or Front Floor Upper Console Trim Plate Replacement (Right Hand Drive) .
Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Left Hand Drive) or Instrument Panel Accessory Trim Plate Replacement (Right Hand Drive) .

Console Shift Lever Bezel Assembly

Procedure

Use a flat-bladed tool in order to release the tabs securing the shift lever bezel to the console assembly.
Pull rearward and remove the shift lever bezel from the vehicle.
Disconnect the electrical connections.
If replacing the shift lever bezel, transfer all necessary components.
