Instrument Panel Accessory Trim Plate Replacement (Right Hand Drive)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

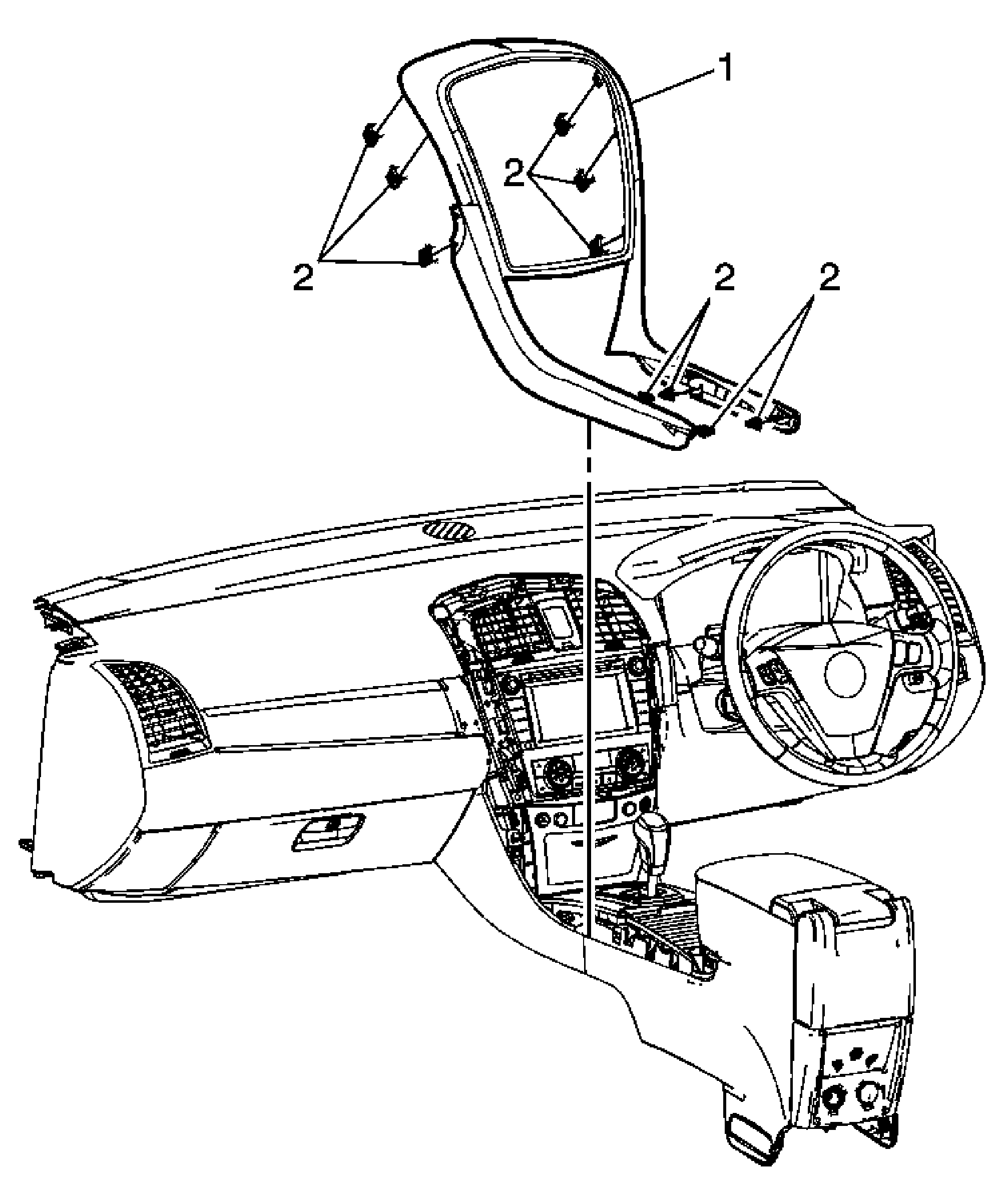

Fig 1: Instrument Panel Accessory Trim Plate (Right Hand Drive) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Accessory Trim Panel Assembly Procedures Use a plastic trim tool to aid in the removal of the accessory trim panel. Start at the rear edge of the trim panel and release it from the console. Pull rearward releasing the trim panel from the instrument panel assembly.
2	Retainer Clips (Qty: 10)

Callout

Component Name

Instrument Panel Accessory Trim Panel Assembly

Procedures

Use a plastic trim tool to aid in the removal of the accessory trim panel.
Start at the rear edge of the trim panel and release it from the console.
Pull rearward releasing the trim panel from the instrument panel assembly.

Retainer Clips (Qty: 10)
