Installation Procedure

WARNING: This page is about a different variant/trim than selected.

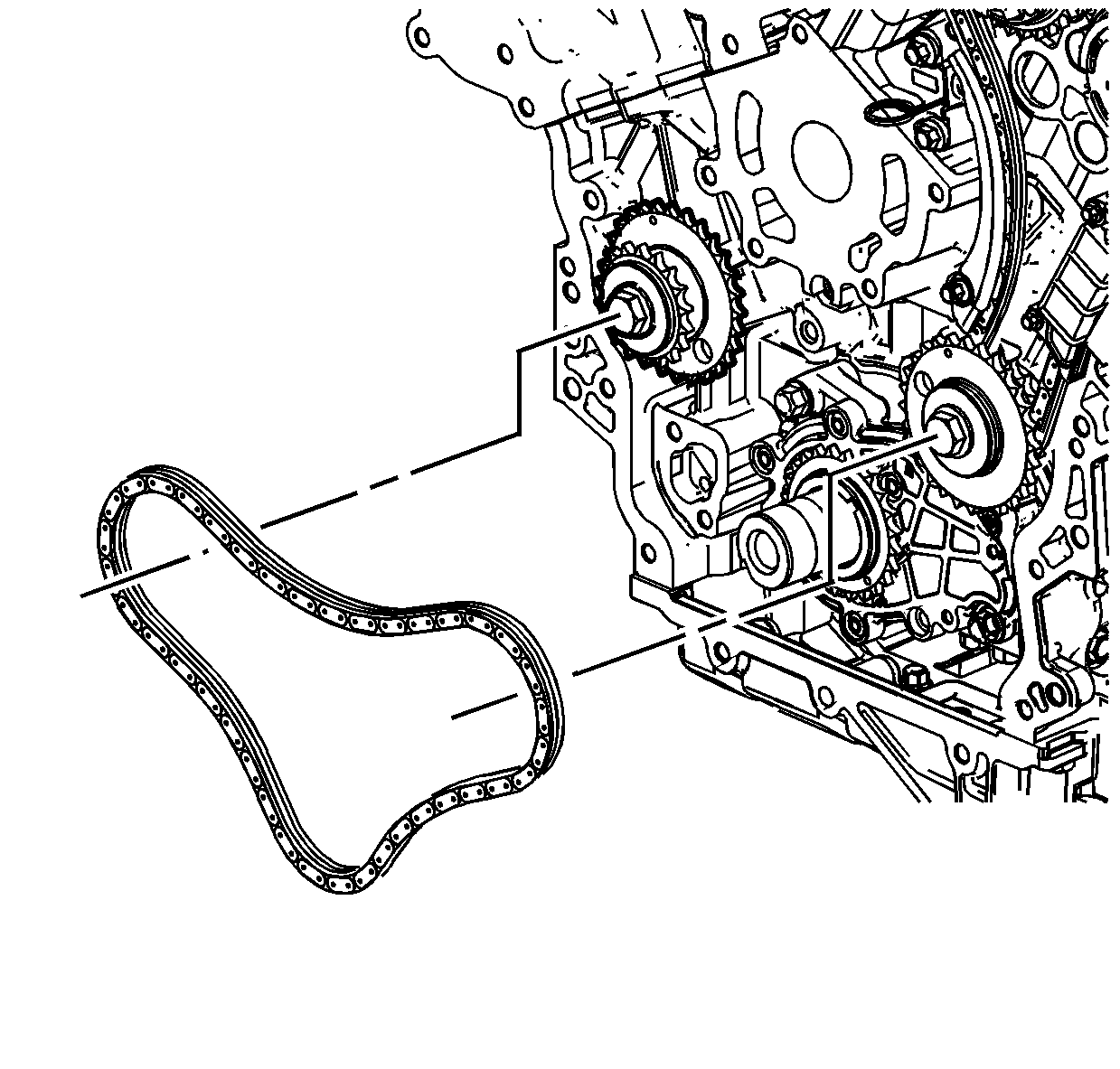

    Fig 1: View Of Primary Camshaft Timing Chain
    GM902843Courtesy of GENERAL MOTORS CORP.
  1. Install the primary camshaft timing chain. Refer to Primary Camshaft Drive Chain Installation .
  2. Install the primary upper camshaft drive chain guide. Refer to Primary Camshaft Drive Chain Guide Installation - Upper .
  3. Install the primary camshaft drive chain tensioner. Refer to Primary Camshaft Drive Chain Tensioner Installation .
  4. Install the right bank secondary camshaft drive chain. Refer to Secondary Camshaft Drive Chain Installation - Right .
  5. Install the right bank secondary camshaft drive chain guide. Refer to Secondary Camshaft Drive Chain Guide Installation - Right .
  6. Install the right bank secondary camshaft drive chain shoe. Refer to Secondary Camshaft Drive Chain Shoe Installation - Right .
  7. Install the right bank secondary camshaft drive chain tensioner. Refer to Secondary Camshaft Drive Chain Tensioner Installation - Right .
  8. Install the spark plugs. Refer to Spark Plug Replacement in Engine Controls - 3.6L (LY7).
  9. Install the engine front cover. Refer to Engine Front Cover Replacement .
