Secondary Camshaft Drive Chain Installation - Right

WARNING: This page is about a different variant/trim than selected.

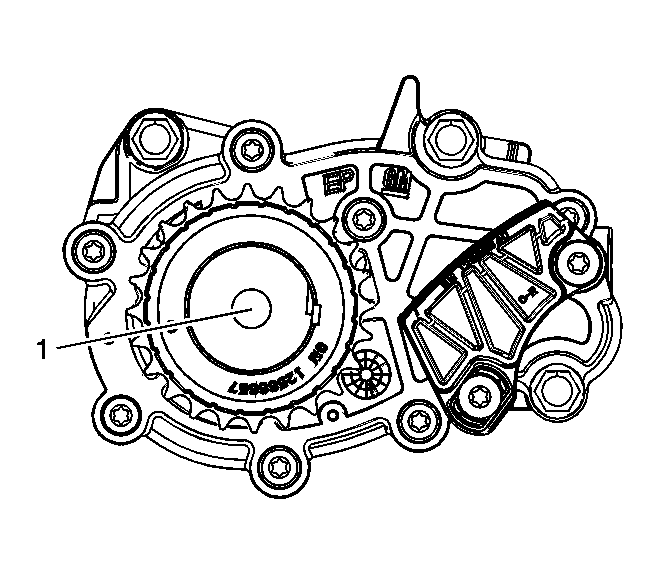

    Fig 1: Identifying Crankshaft In Stage Two Timing Drive Assembly Position
    GM1306434Courtesy of GENERAL MOTORS CORP.
  1. Ensure that the crankshaft is in the stage two timing drive assembly position (1).
    2. Fig 2: View Of Right Bank Secondary Camshaft Drive Chain
    GM902854Courtesy of GENERAL MOTORS CORP.
  2. Install the right secondary camshaft drive chain.
    3. Fig 3: Aligning Timing Camshaft Drive Chain Link With The Alignment Access Hole Made In The Right Camshaft Intermediate Drive Chain Idler Inner Sprocket
    GM1306435Courtesy of GENERAL MOTORS CORP.
  3. Place the secondary camshaft drive chain around the right camshaft intermediate drive chain idler outer sprocket, aligning the timing camshaft drive chain link (1) with the alignment access hole (2) made in the right camshaft intermediate drive chain idler inner sprocket.

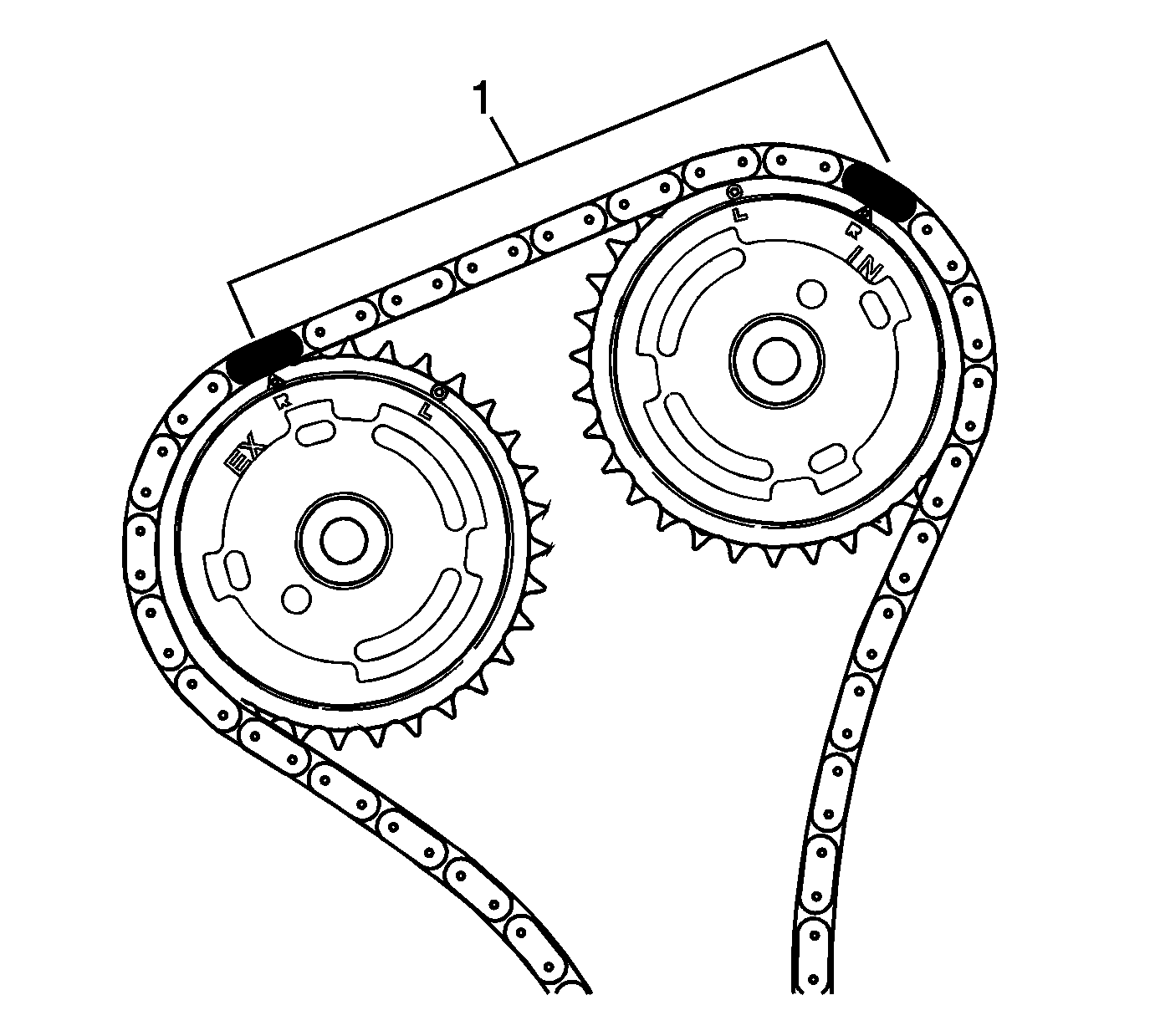

    4. Fig 4: Ensuring There Are 7 Links Between Timing Camshaft Drive Chain Links For The Camshaft Position Actuator Sprockets
    GM1306436Courtesy of GENERAL MOTORS CORP.
  4. Wrap the secondary camshaft drive chain around both right actuator drive sprockets.
  5. Ensure there are 7 links (1) between the timing camshaft drive chain links for the camshaft position actuator sprockets.

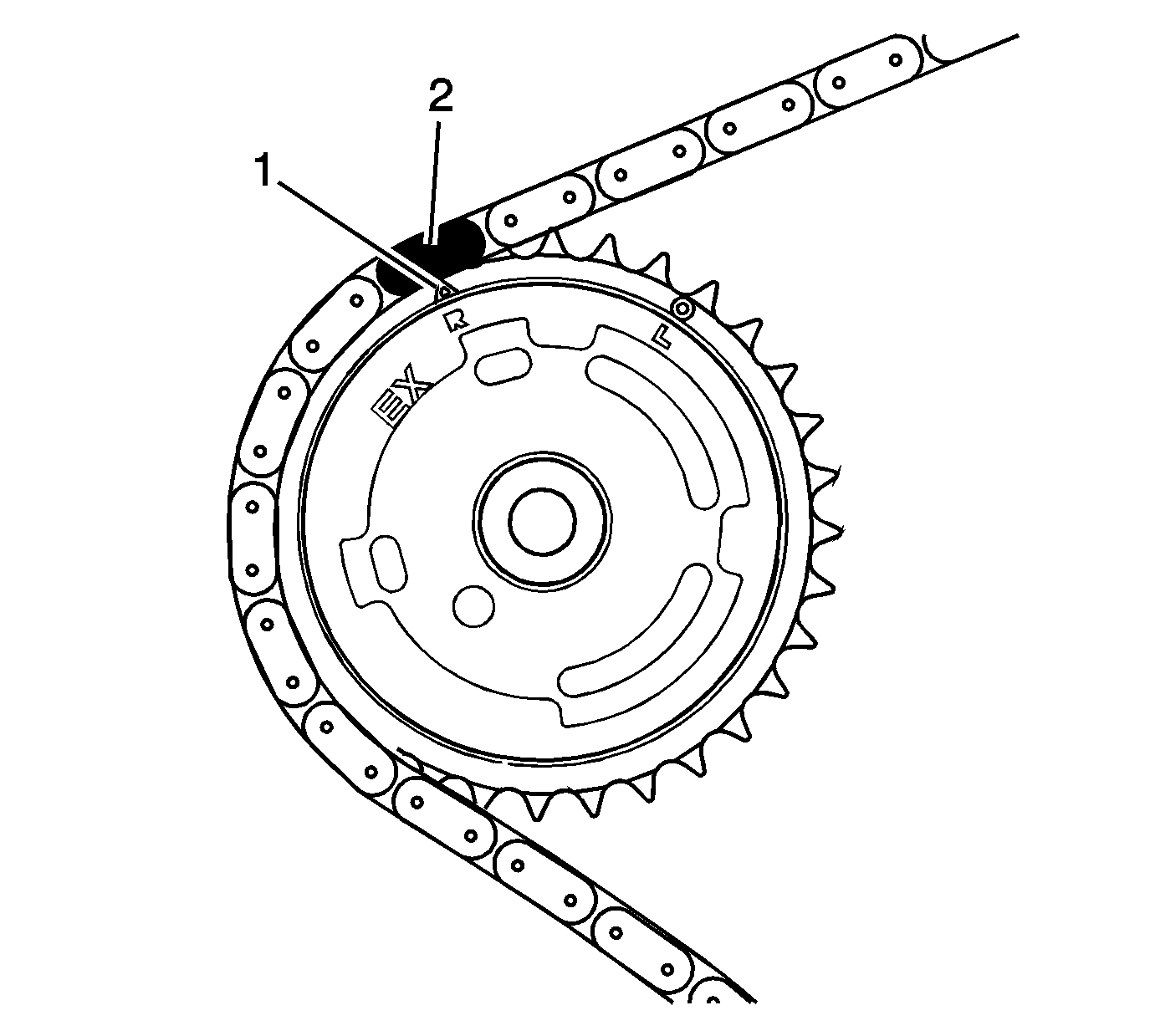

    6. Fig 5: Aligning Right Exhaust Camshaft Position Actuator Sprocket Alignment Triangle Mark With The Timing Camshaft Drive Chain Link
    GM1306439Courtesy of GENERAL MOTORS CORP.
  6. Align the right exhaust camshaft position actuator sprocket alignment triangle mark (1) with the timing camshaft drive chain link (2).

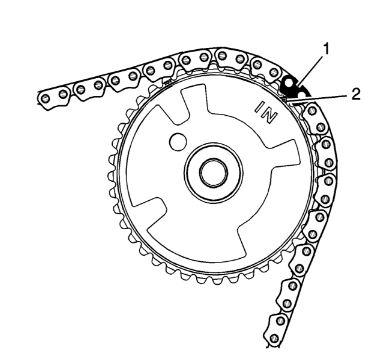

    7. Fig 6: Aligning Right Intake Camshaft Position Actuator Sprocket Alignment Triangle Mark With The Timing Camshaft Drive Chain Link
    GM1306442Courtesy of GENERAL MOTORS CORP.
  7. Align the right intake camshaft position actuator sprocket alignment triangle mark (2) with the timing camshaft drive chain link (1).

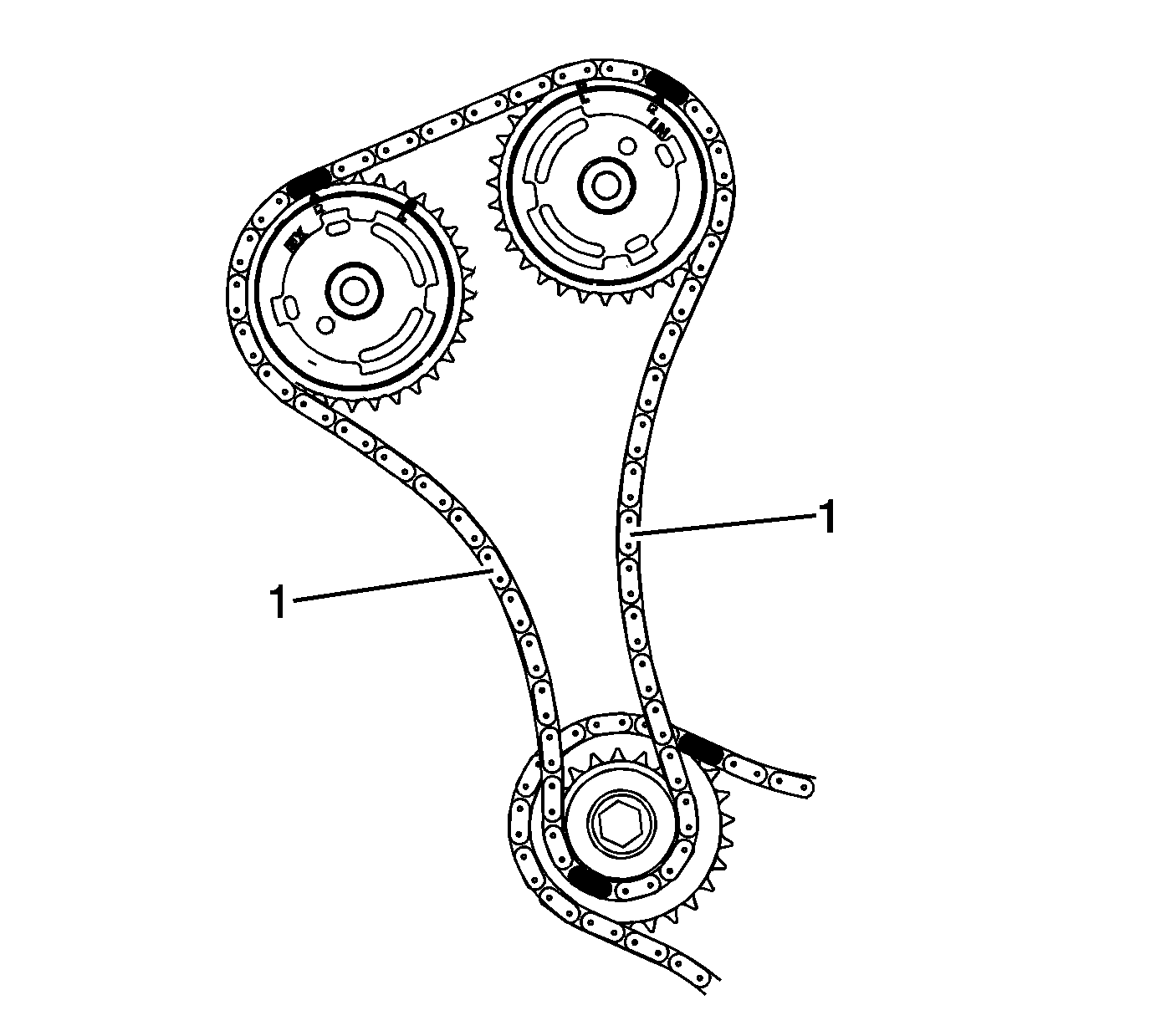

    8. Fig 7: Identifying 18 Links Between The Right Camshaft Intermediate Drive Chain Idler Timing Camshaft Drive Chain Link & Each Right Camshaft Position Actuator Sprocket Timing Camshaft Drive Chain Link
    GM1306444Courtesy of GENERAL MOTORS CORP.
  8. There will be 18 links (1) between the right camshaft intermediate drive chain idler timing camshaft drive chain link and each right camshaft position actuator sprocket timing camshaft drive chain link.
