Steering Shaft, Lower Bearing, and Jacket - Assemble - Off Vehicle (Column Shift Lean Shaft)

    Fig 1: View Of Steering Column Support Assembly, Steering Column Jacket Assembly & Screws
    GM299877Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
    IMPORTANT: Replace the steering column support assembly (1) if the steering column support assembly (1) has been staked 3 times.
  1. Attach the steering column support assembly (1) to the steering column jacket assembly (3) with 4 TORX® head screws (2).

    Tighten:  Tighten the screws to 17 N.m (13 lb ft).

  2. Fig 2: Steering Column Tilt Head & Shaft Assemblies
    GM664272Courtesy of GENERAL MOTORS CORP.
  3. Install the steering column shaft assembly (2) into the steering column tilt head assembly (1).

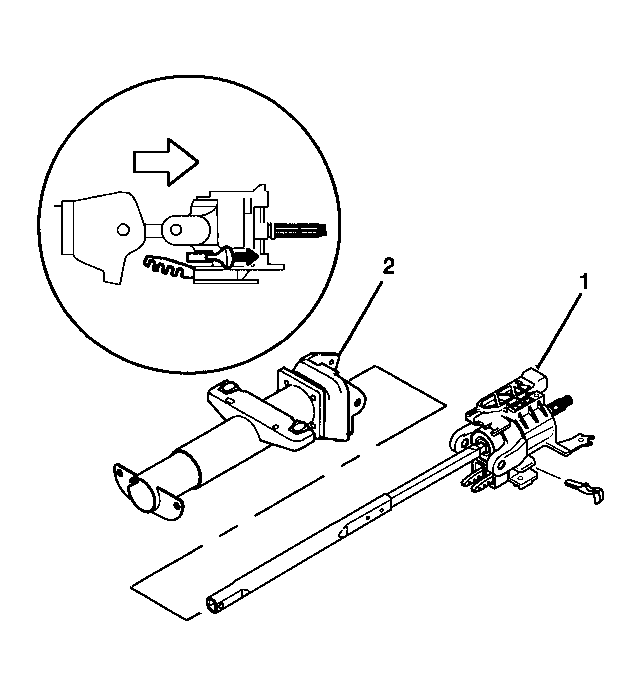

  4. Fig 3: Steering Clumn Tilt Head & Jacket Assemblies
    GM664273Courtesy of GENERAL MOTORS CORP.
  5. Install the steering column shaft assembly with the steering column tilt head assembly (1) into the steering column jacket assembly (2).
  6. Maneuver the tilt knob and push the steering column tilt head assembly (1) up towards the steering column in order to lock the steering wheel lock shoes in place.
  7. Fig 4: View Of Pivot Pins At Steering Column Assembly
    GM299893Courtesy of GENERAL MOTORS CORP.
  8. Lubricate the pivot pins (1) with lithium grease.
  9. Firmly seat each pivot pin (1) into the steering column tilt head assembly.
  10. Stake the steering column support assembly in 3 locations around each pivot pin.
  11. Fig 5: View Of Adapter & Bearing Assembly
    GM343881Courtesy of GENERAL MOTORS CORP.
  12. Install the adapter and bearing assembly (1) onto the steering column jacket assembly by performing the following steps:
    1. Align the tab on the adapter and bearing assembly (1) with the slot in the steering column jacket assembly.
    2. Push the adapter and bearing assembly (1) onto the steering column shaft assembly until the tab snaps into the slot.
  13. Fig 6: Sensor Retainer, Dual Traingle Sensor Assmebly & Steering Column Jacket Assembly
    GM664274Courtesy of GENERAL MOTORS CORP.
  14. Install the dual triangle sensor assembly (2) onto the steering column jacket assembly (3).
  15. Install the sensor retainer (1) onto the steering column jacket assembly (3).
  16. Install the linear shift and the automatic transmission shift lock control only. Refer to Linear Shift Assembly - Assemble - Off Vehicle (Column Shift) .
  17. Install the tilt spring only. Refer to Tilt Spring - Assemble - Off Vehicle .
  18. Install the electronic lock module assembly. Refer to Electronic Column Lock Module - Assemble - Off Vehicle .
  19. Install the steering column into the vehicle. Refer to Steering Column Replacement .
  20. Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM in SIR.
