Activating System

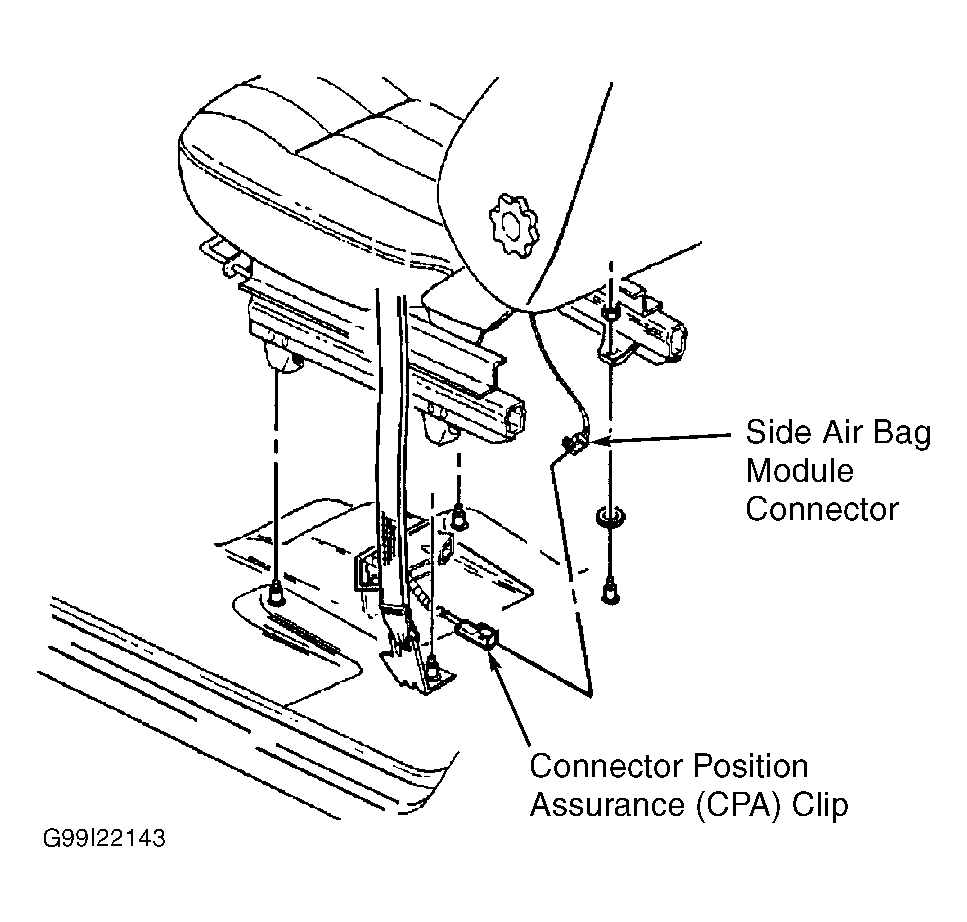

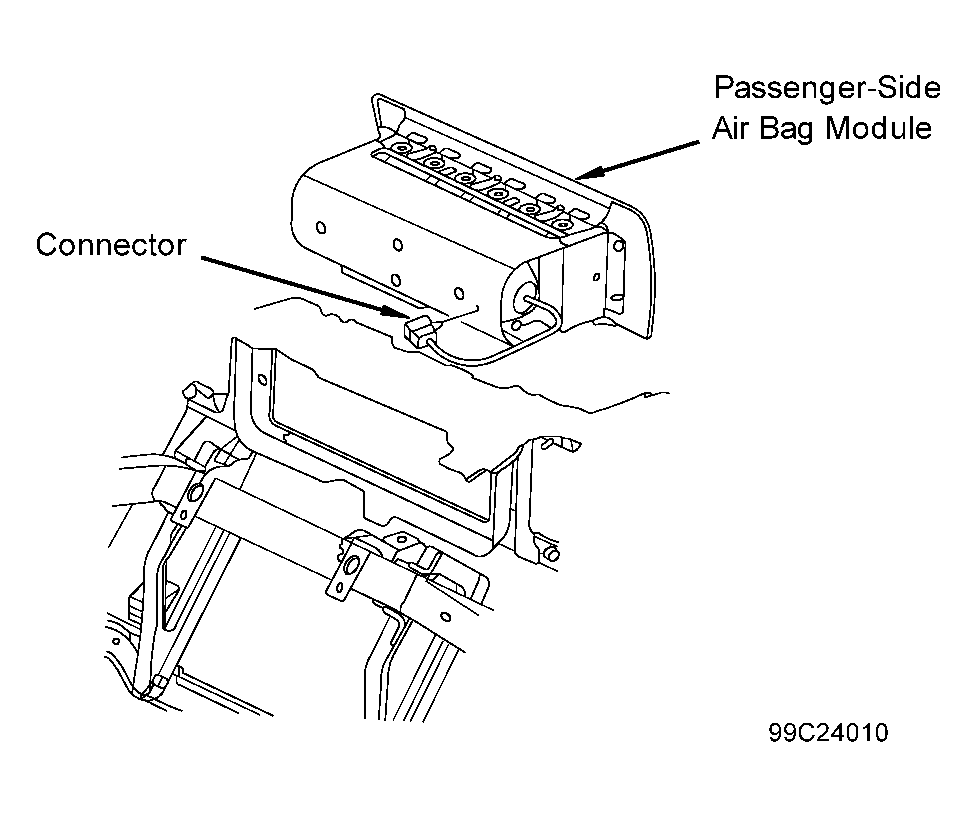

  1. Turn ignition off. Remove key. Connect driver and passenger side impact air bag module connectors and install Connector Position Assurance (CPA) clips. See Figure. Connect passenger-side air bag module connector and install CPA clip. See Figure. Close glove box.
  2. Connect driver-side air bag module connector and install CPA clip. See Figure. Install AIR BAG fuse in instrument panel fuse block, located in lower left side of dash. Check system for proper operation. See SYSTEM OPERATION CHECK .
