Air Cleaner Outlet Duct Replacement

Courtesy of GENERAL MOTORS COMPANY

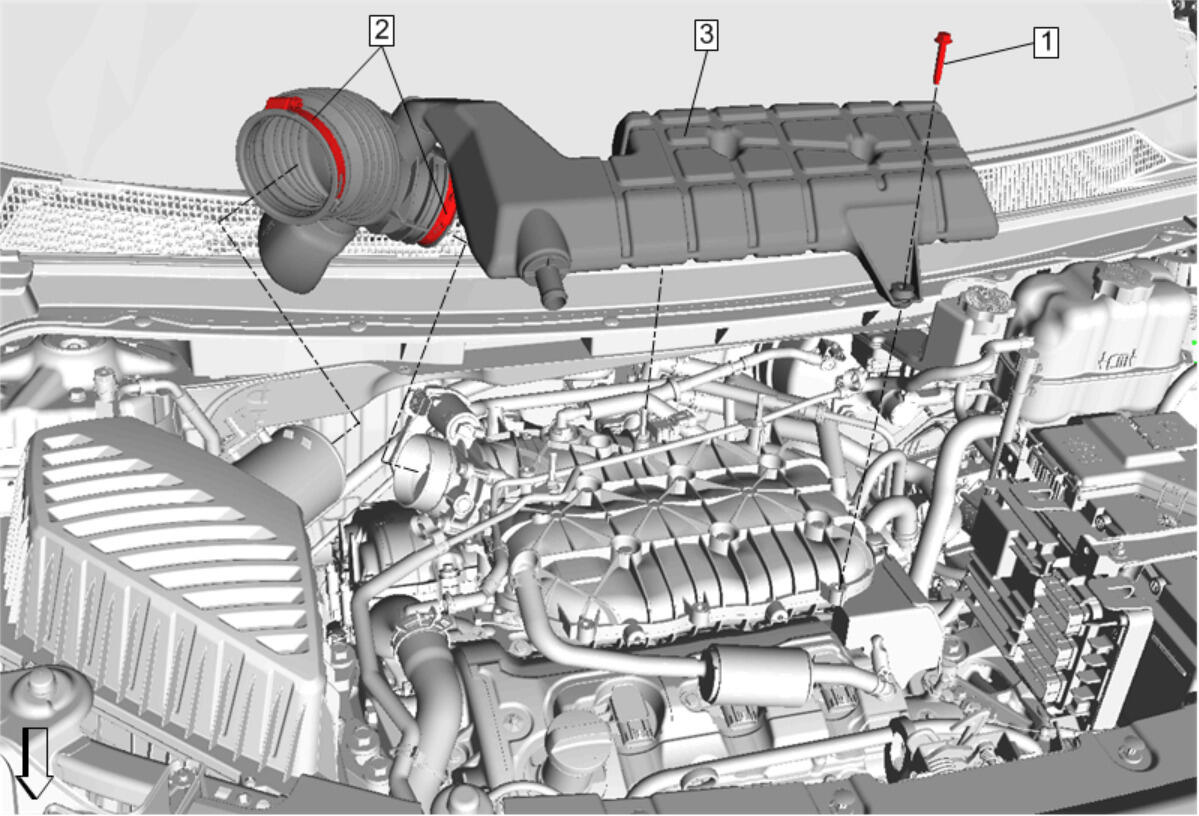

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Intake Manifold Cover Replacement Positive Crankcase Ventilation Tube@Air Cleaner Outlet Duct - Remove - Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Air Cleaner Outlet Duct to Camshaft Cover) , or Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Intake Manifold to Camshaft Cover)
1	Air Cleaner Outlet Duct Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Air Cleaner Outlet Duct Clamp [2x] Tighten 4 N.m (35 lb in)
3	Air Cleaner Outlet Duct Procedure Lift up to remove from retainers.
