Intake Manifold Cover Replacement
NOTE:

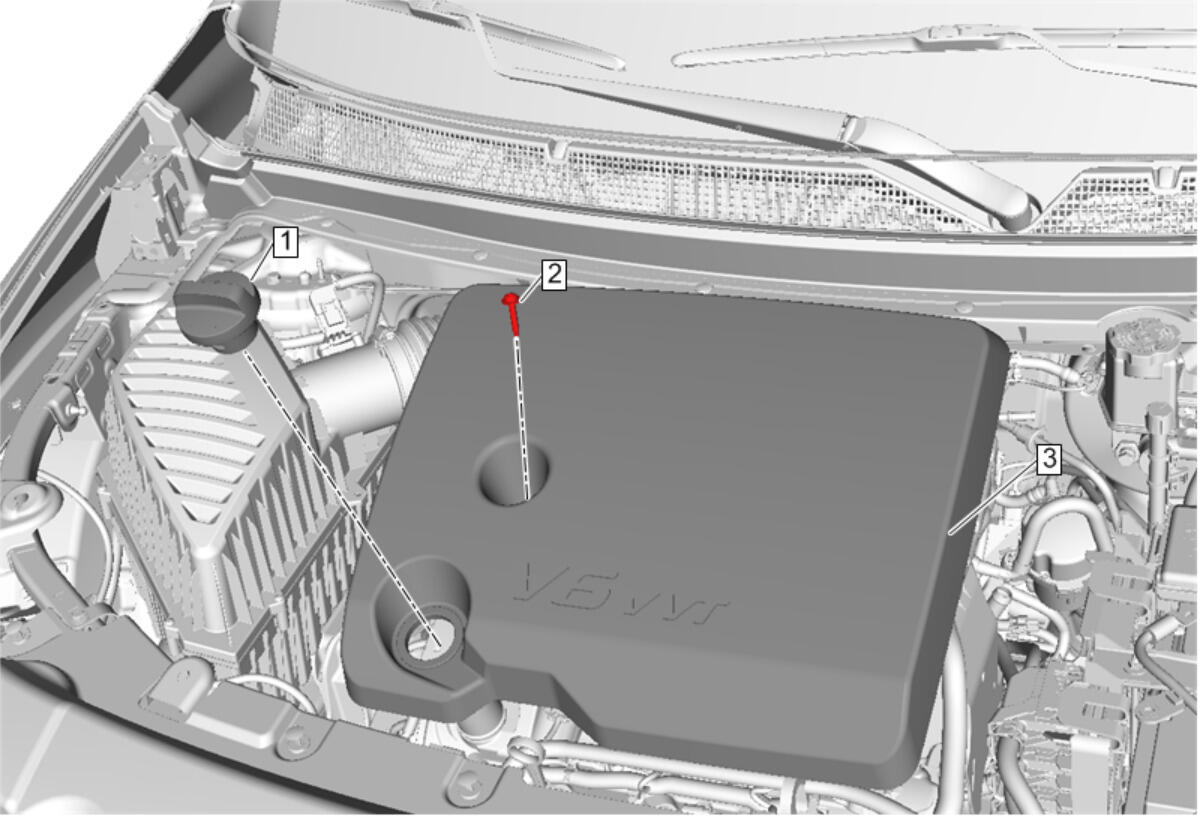

Callout items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Oil Cap |
| 2 | Intake Manifold Cover Fastener
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 3 | Intake Manifold Cover Procedure Pull the intake manifold cover upward to remove. |
