Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Intake Manifold to Camshaft Cover)

Courtesy of GENERAL MOTORS COMPANY

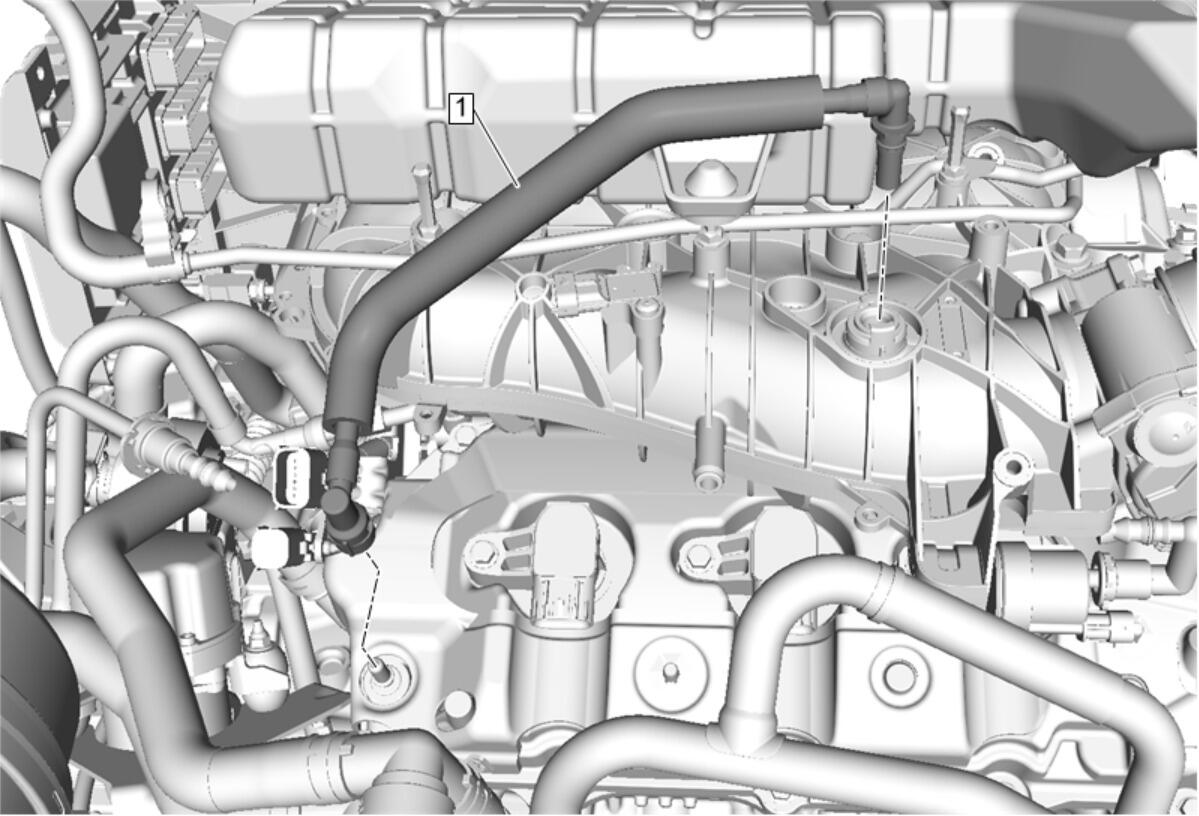

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Intake Manifold Cover Replacement
1	Positive Crankcase Ventilation Tube Procedure  Disconnect the PCV tube from the camshaft cover and the intake manifold.
