Removal Procedure
- Disable the SIR system. SIR Disabling and Enabling
Windshield Garnish Molding (1) - Remove [2x] - Windshield Garnish Molding Replacement
Instrument Panel Outer Trim Cover - Right Side (1) - Remove - Instrument Panel Outer Trim Cover Replacement - Right Side
Instrument Panel Trim Plate Applique (1) - Remove - Instrument Panel Trim Plate Applique Replacement
Instrument Panel Lower Trim Panel Insulator (3) - Remove - Instrument Panel Lower Trim Panel Insulator Replacement
Instrument Panel Lower Airbag - Passenger Side (2) - Remove - Instrument Panel Lower Airbag Replacement - Passenger Side
Instrument Panel Compartment (2) - Remove - Instrument Panel Compartment Replacement
Front Floor Console Extension Panel-Left Side (2) - Remove - Front Floor Console Extension Panel Replacement - Left Side
Front Floor Console Extension Panel-Right Side (1) - Remove - Front Floor Console Extension Panel Replacement - Right Side
Front Floor Console (1) - Remove - Front Floor Console Replacement
Instrument Panel Outer Trim Cover - Left Side (1) - Remove - Instrument Panel Outer Trim Cover Replacement - Left Side
Instrument Panel Steering Column Upper Trim Cover (1) - Remove - Instrument Panel Steering Column Upper Trim Cover Replacement
Instrument Panel Knee Bolster (1) - Remove - Instrument Panel Knee Bolster Replacement
Instrument Panel Trim Plate (1) - Remove - Instrument Panel Trim Plate Replacement
Communication Interface Module Bracket (2) - Remove - Communication Interface Module Bracket Replacement
Instrument Panel Center Air Outlet (2) - Remove - Instrument Panel Center Air Outlet Replacement
Instrument Panel Center Trim Plate Applique (1) - Remove - Instrument Panel Center Trim Plate Applique Replacement
Heater and Air Conditioning User Interface Control (2) - Remove - Heater and Air Conditioning User Interface Control Replacement
Front Floor Console Stowage Tray (2) - Remove - Front Floor Console Stowage Tray Replacement
Instrument Panel Switch Trim Plate (1) - Remove - Instrument Panel Switch Trim Plate Replacement
Instrument Panel Lower Center Trim Panel (2) - Remove - Instrument Panel Lower Center Trim Panel Replacement
Instrument Panel Steering Column Lower Trim Cover (2) - Remove - Instrument Panel Steering Column Lower Trim Cover Replacement
Instrument Cluster (2) - Remove - Instrument Cluster Replacement
Head-Up Display Bezel (1) - Remove - Head-Up Display Bezel Replacement

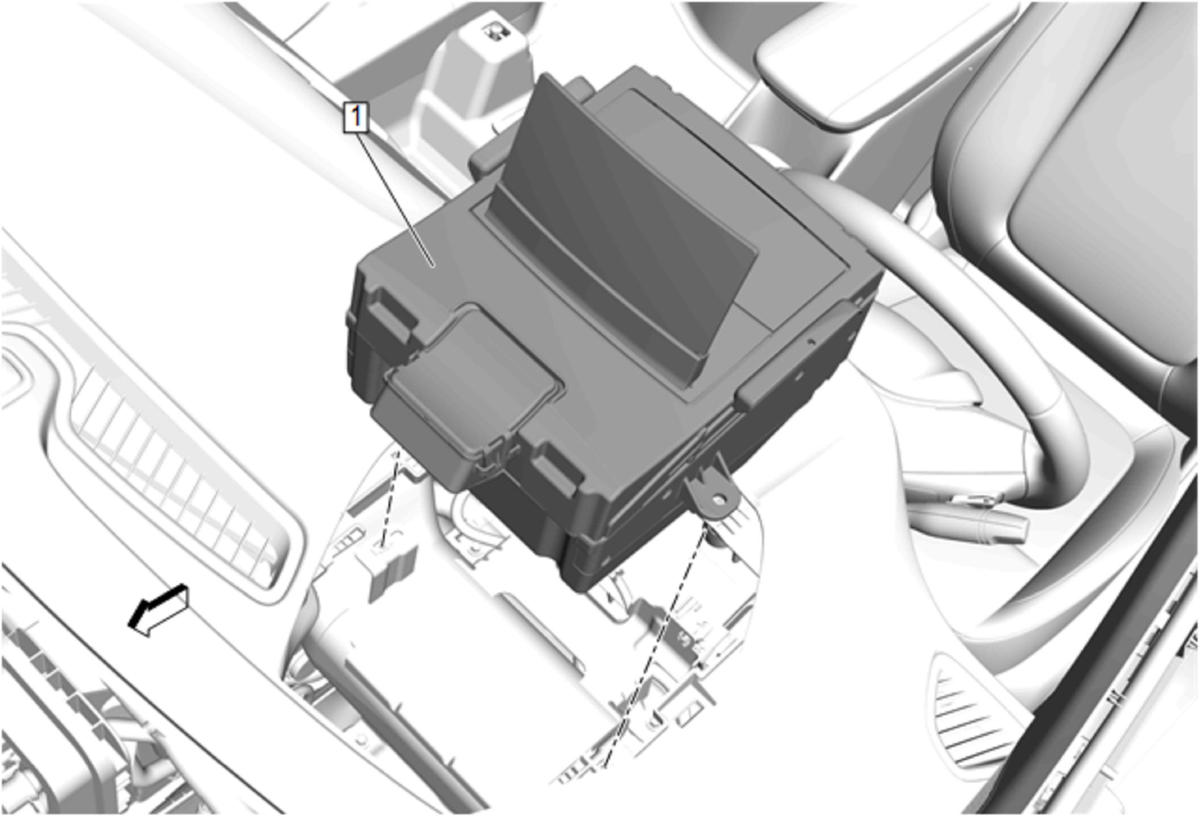

Head-Up Display (1) - Remove - Head-Up Display Replacement

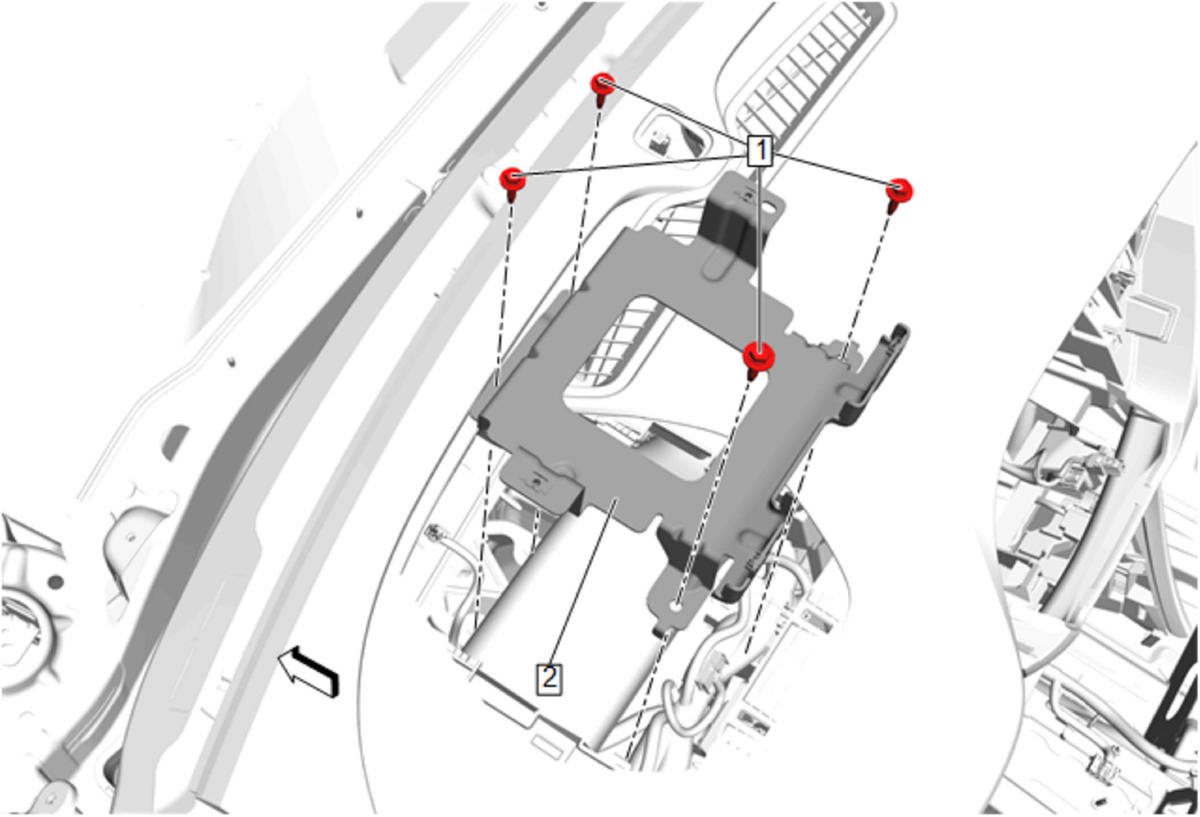

Head-Up Display Bracket Bolt (1) - Remove [4x]
- Head-Up Display Bracket (2) - Remove
Steering Wheel (1) - Remove - Steering Wheel Replacement
Turn Signal Switch (1) - Remove - Turn Signal Switch Replacement
Windshield Wiper and Washer Switch (1) - Remove - Windshield Wiper and Windshield Washer Switch Replacement
Daytime Running Lamp Ambient Light Bezel (1) - Remove - Daytime Running Lamp Ambient Light Bezel Replacement
Instrument Panel Bolt (1) - Remove [9x]
Instrument Panel Bolt (1) - Remove [6x]
- Instrument Panel Compartment Door Latch Striker Bolt (2) - Remove
Instrument Panel Wiring Harness Connector Bolt (1) - Remove [2x]
Instrument Panel Airbag Bolt (1) - Remove [3x]
- Wiring Harness Connector (2) - Disconnect
Wiring Harness Connector (1) - Disconnect [2x]
Retainer (1) - Remove [2x]
Retainer (1) - Remove
- {If equipped} Wiring Harness Connector (2) - Disconnect
Retainer (1) - Remove [3x]
- Wiring Harness Connector (2) - Disconnect
- Retainer (3) - Remove
Note the location and routing of the instrument panel wiring harness prior to removal to ensure proper installation.

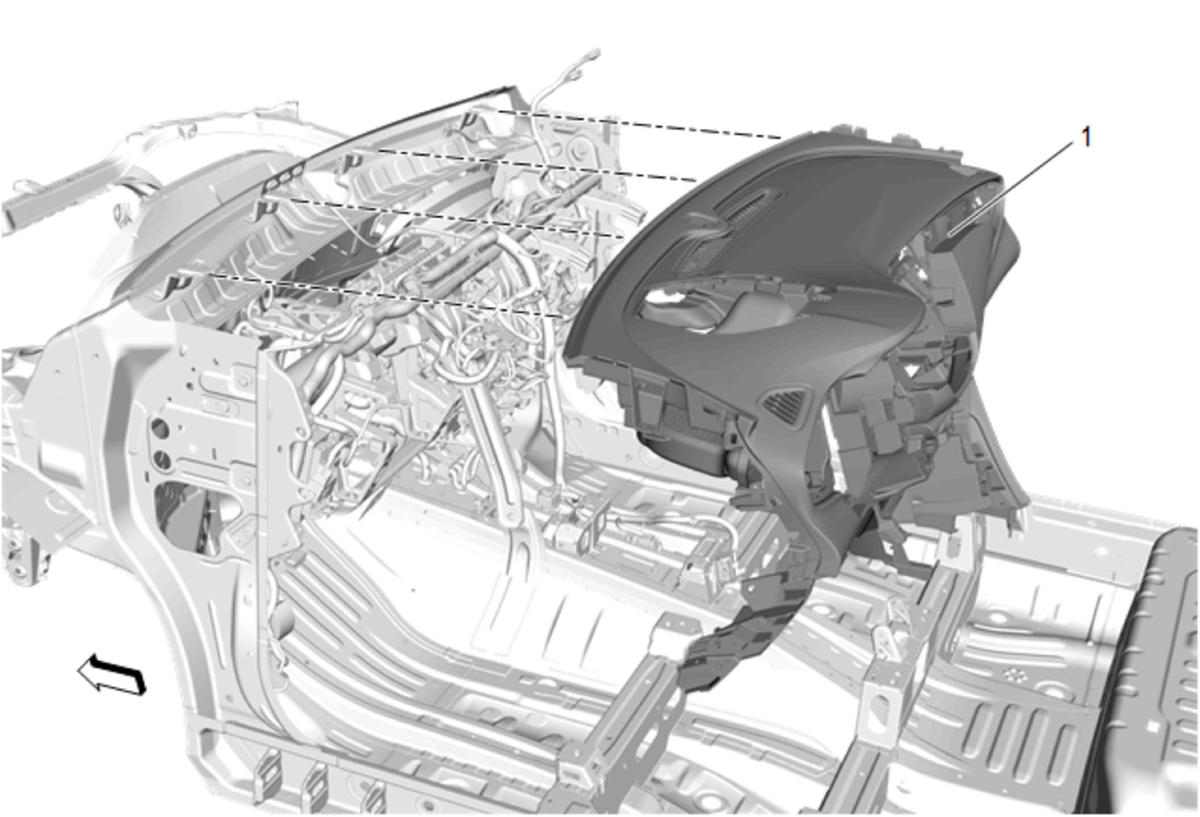

- With the aid of an assistant, remove the instrument panel carrier assembly (1) from the vehicle.
- Transfer components as necessary.
