Instrument Panel Lower Airbag Replacement - Passenger Side

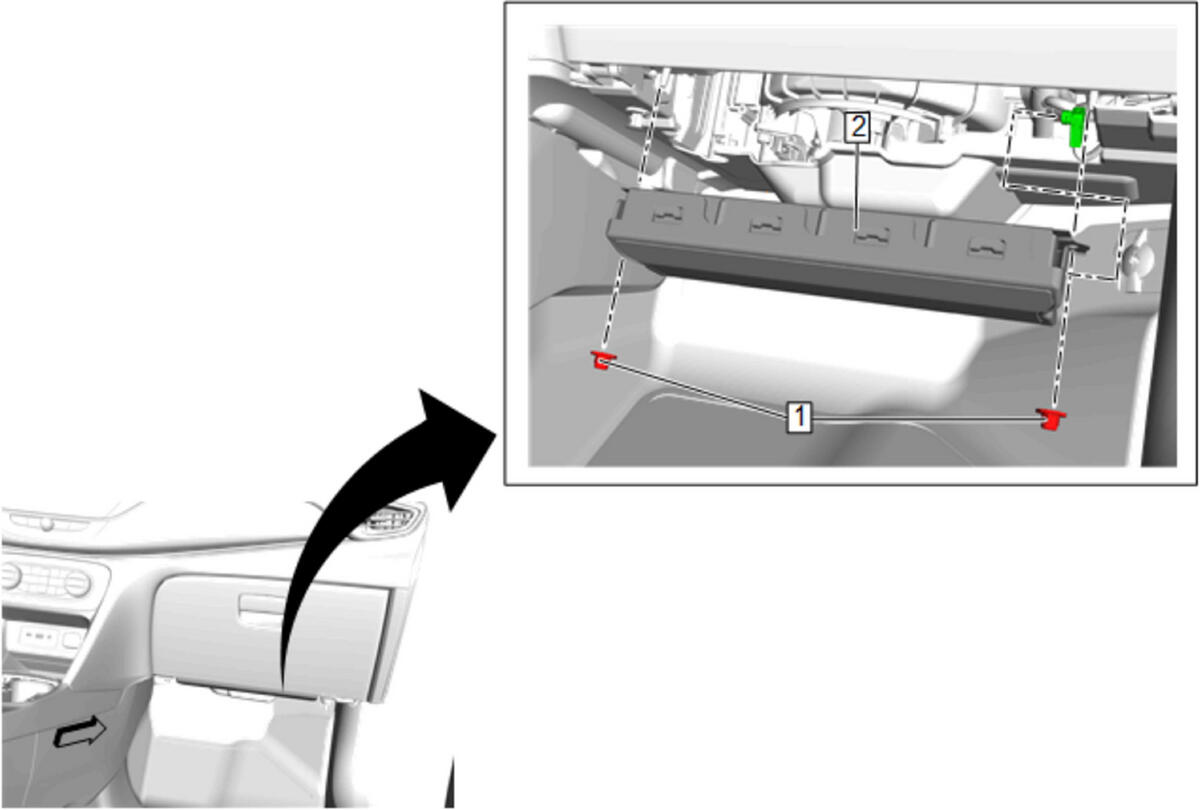

GM5343551Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

WARNING:

Refer to SIR Warning .

  1. Disable the SIR system. SIR Disabling and Enabling
  2. Instrument Panel Lower Trim Panel Insulator Replacement
1 Instrument Panel Lower Airbag Nut [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Instrument Panel Lower Airbag - Passenger Side

Procedure

  1. Disconnect the electrical connector.
  2. Inflatable Restraint Module Handling and Scrapping
  3. Enable the SIR System. SIR Disabling and Enabling
