Instrument Cluster Replacement

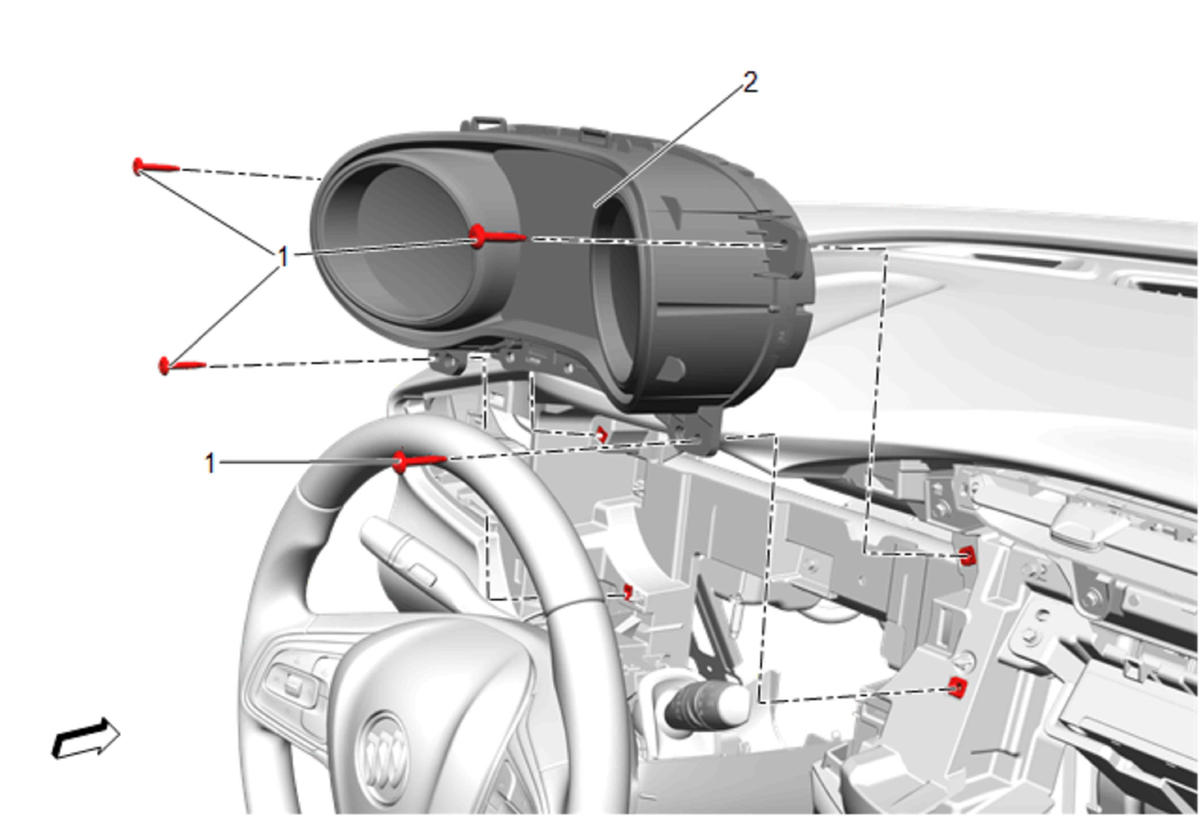

GM5249646Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Instrument Panel Steering Column Upper Trim Cover Replacement
  2. Instrument Panel Trim Plate Replacement
1 Instrument Cluster Bolt [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Instrument Cluster

Procedure

  1. Disconnect the electrical connector.
  2. If required, perform the programming and setup procedures. Control Module References for programming and setup procedures, if required.
