Instrument Panel Center Trim Plate Applique Replacement
Courtesy of GENERAL MOTORS COMPANY

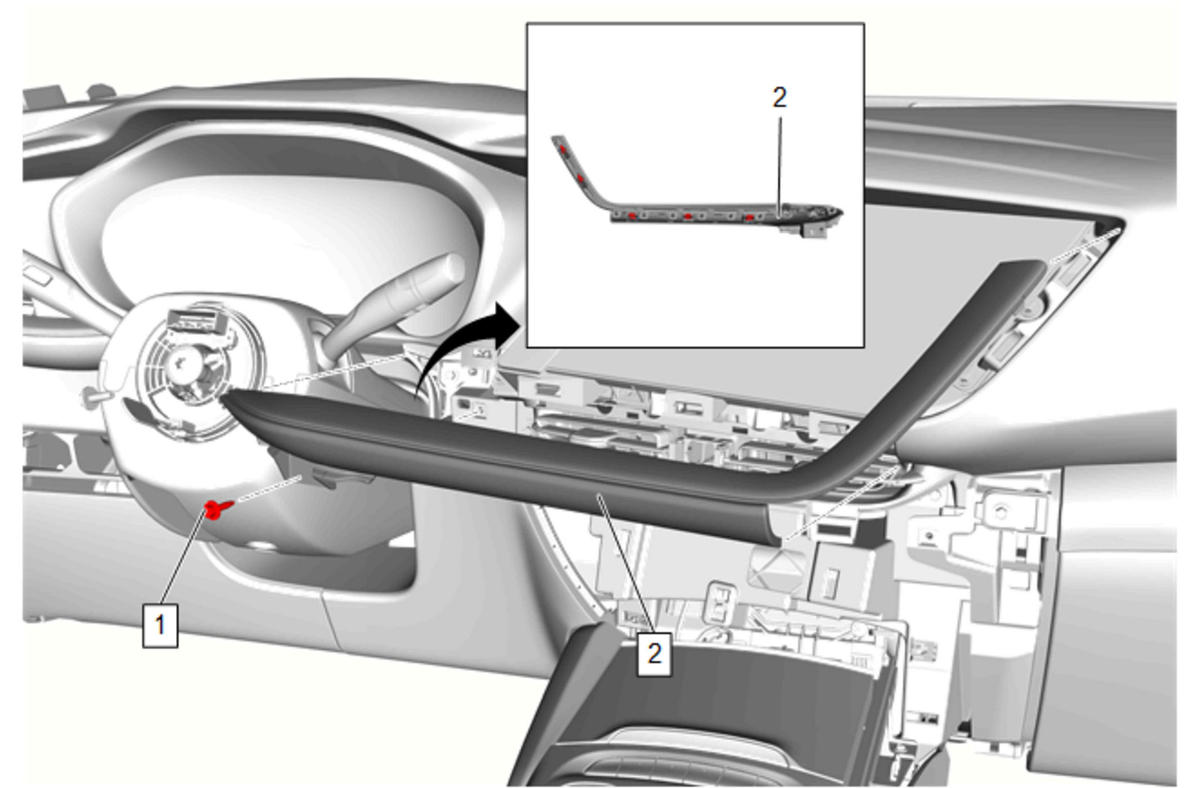

Callout
Component Name
Preliminary Procedures
Instrument Panel Center Trim Pad Replacement - Right Side
Instrument Panel Lower Center Trim Panel Replacement - Left Side
Instrument Panel Center Trim Pad Replacement - Left Side
1
Instrument Panel Center Trim Plate Applique Bolt
CAUTION:
Fastener Caution
Tighten
2.5 N.m (22 lb in)
2
Instrument Panel Center Trim Plate Applique
Procedure
Using a flat-bladed plastic trim tool, release the retaining clips.
