Instrument Panel Lower Center Trim Panel Replacement - Left Side

Courtesy of GENERAL MOTORS COMPANY

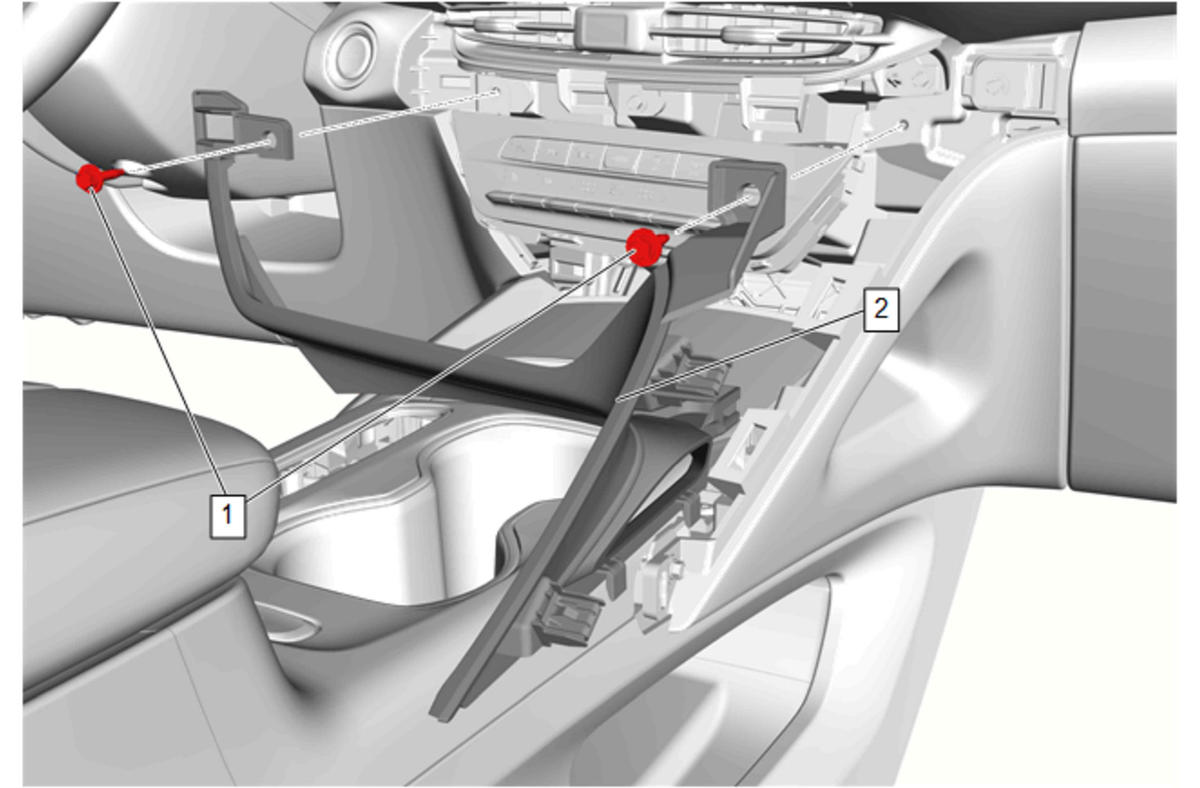

Callout	Component Name
Preliminary Procedure  Instrument Panel Center Trim Pad Replacement - Right Side
1	Instrument Panel Center Trim Panel Bolt [2x] CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Instrument Panel Lower Center Trim Panel- Left Side Procedure  Using a flat-bladed plastic trim tool, release the retaining clips. Start from the left to the right to release the retaining clips.
