Instrument Panel Center Trim Pad Replacement - Left Side

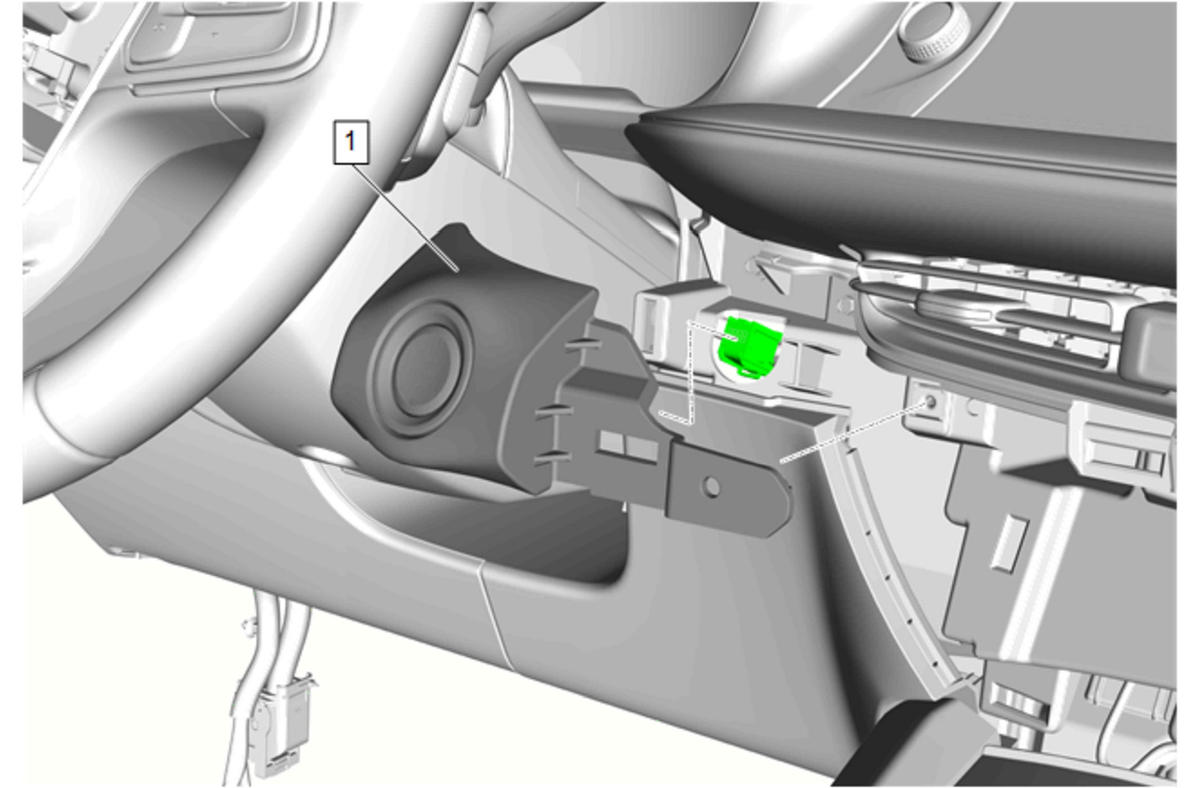

GM5549702Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Instrument Panel Center Trim Pad Replacement - Right Side
  2. Instrument Panel Lower Center Trim Panel Replacement - Left Side
1 Instrument Panel Center Trim Pad- Left Side

Procedure

  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Disconnect the electrical connector.
