Installation Procedure
WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Intake Manifold Gasket (1) - Install NEW
- Apply a 5 mm (0.20 in) band of threadlock to the threads of the intake manifold bolts. Adhesives, Fluids, Lubricants, and Sealers
- Remove the covers from the cylinder head passages.

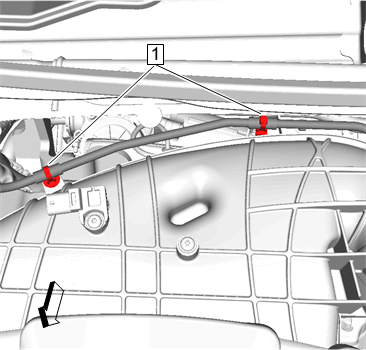

Radiator Surge Tank Inlet Hose Clip (1) @ Intake Manifold - Install [2x]
- Intake Manifold - Install - Intake Manifold Installation
- Evaporative Emission Canister Purge Solenoid Valve - Install - Evaporative Emission Canister Purge Solenoid Valve Replacement
- Throttle Body Assembly - Install - Throttle Body Assembly Replacement
- Intake Manifold Cover - Install - Intake Manifold Cover Replacement
