Intake Manifold Installation
WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

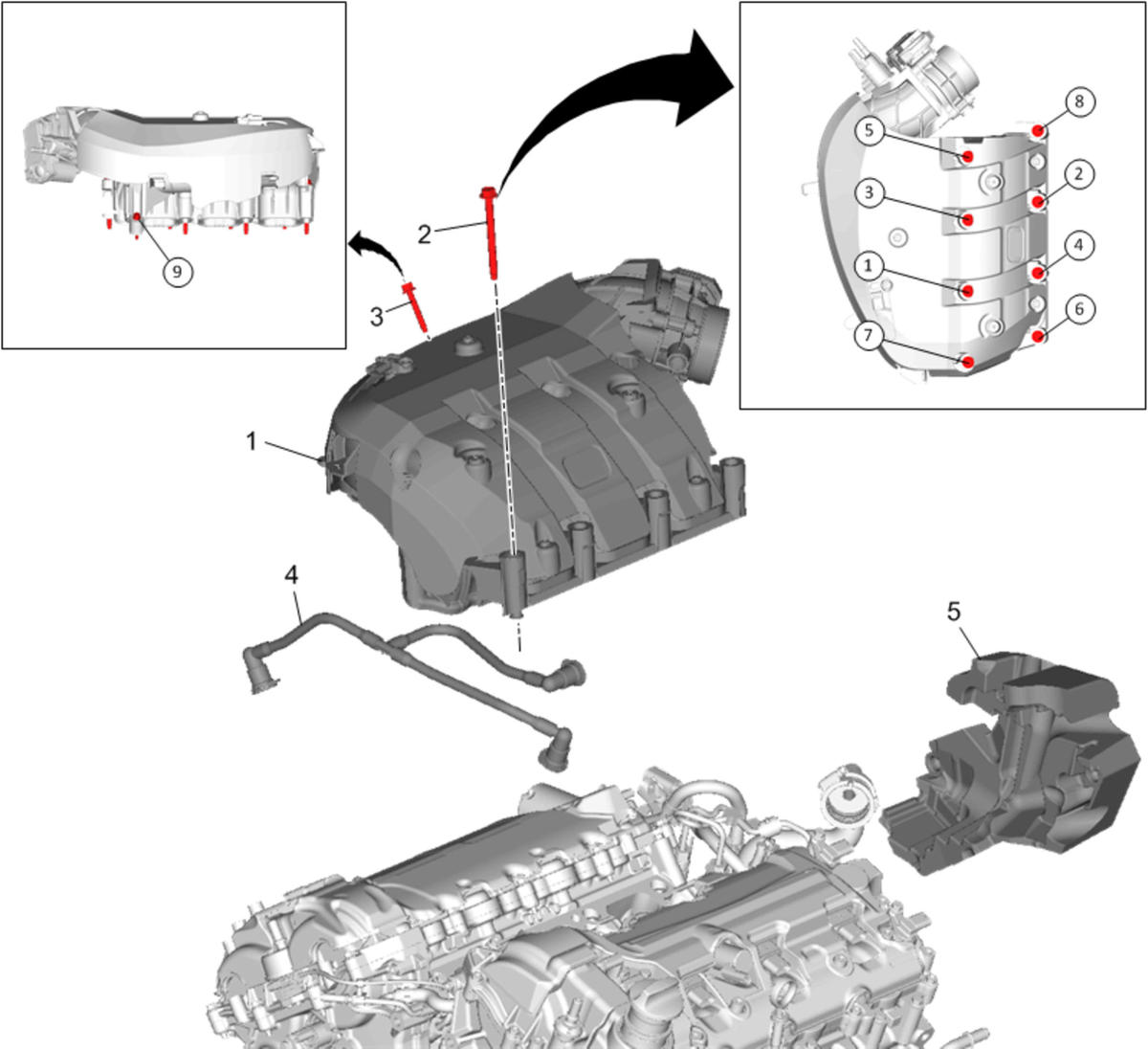

| Callout | Component Name |
|---|---|
| 1 | Intake Manifold |
| 2 | Intake Manifold Bolt [8x]
CAUTION:
Refer to Fastener Caution . Tighten in sequence 25 N.m (18 lb ft) |
| 3 | Intake Manifold Bolt Tighten in sequence 25 N.m (18 lb ft) |
| 4 | Positive Crankcase Ventilation Tube Connector |
| 5 | Engine Rear Noise Shield
WARNING:
The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death. |
