Evaporative Emission Canister Purge Solenoid Valve Replacement

WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

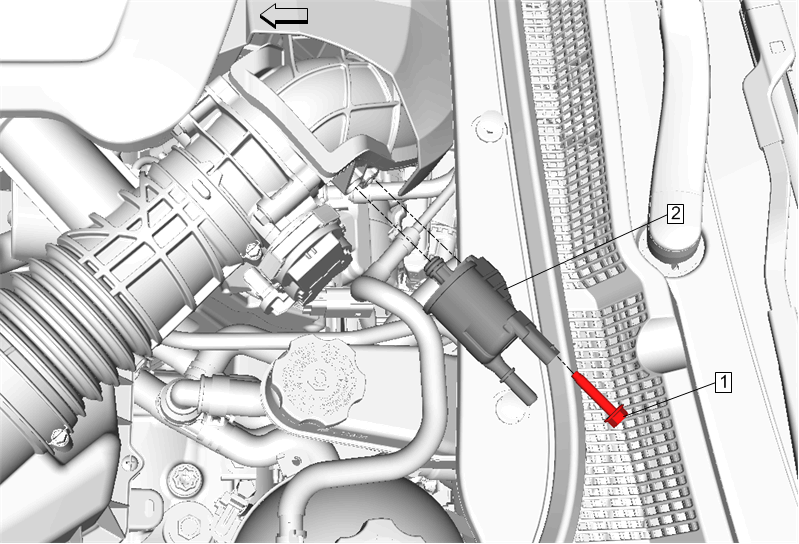

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedures Evaporative Emission Front Pipe @ Evaporative Emission Canister Purge Solenoid Valve - Disconnect - Plastic Collar Quick Connect Fitting Service Disconnect the electrical connector.
1	Evaporative Emission Canister Purge Solenoid Valve Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Evaporative Emission Canister Purge Solenoid Valve

Callout

Component Name

WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedures

Evaporative Emission Front Pipe @ Evaporative Emission Canister Purge Solenoid Valve - Disconnect - Plastic Collar Quick Connect Fitting Service
Disconnect the electrical connector.

Evaporative Emission Canister Purge Solenoid Valve Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Evaporative Emission Canister Purge Solenoid Valve
