Installation Procedure

WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

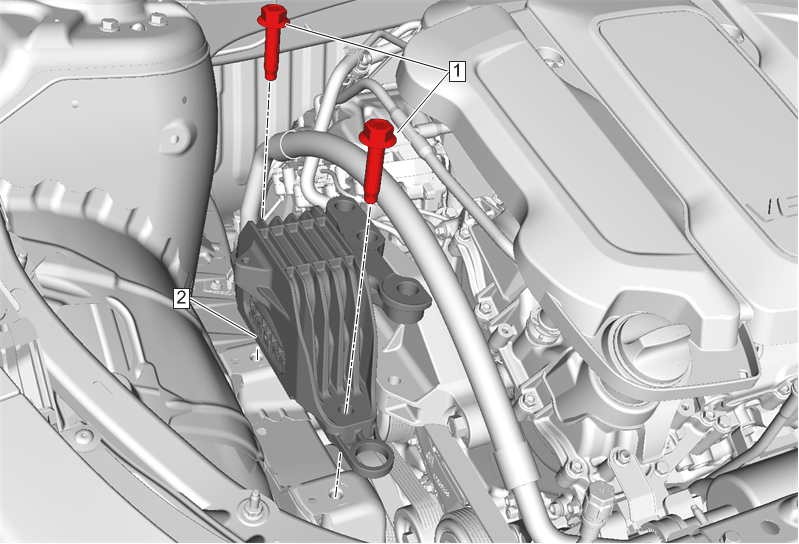

Engine Mount - (2) Install NEW
Engine Mount Fastener - (1) Install [2x]
Tighten
1. First Pass: 100 N.m (74 lb ft)
2. Final Pass: 70 degrees
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do not tighten the engine mount fasteners at this time.

Engine Mount Fastener - (1) Install NEW [3x]
Preform the powertrain mount balance procedure. Powertrain Mount Balancing

CAUTION:

Refer to Fastener Caution .

Tighten the engine mount fasteners.
Tighten
1. First Pass: 100 N.m (74 lb ft)
2. Final Pass: 75 degrees
Courtesy of GENERAL MOTORS COMPANY

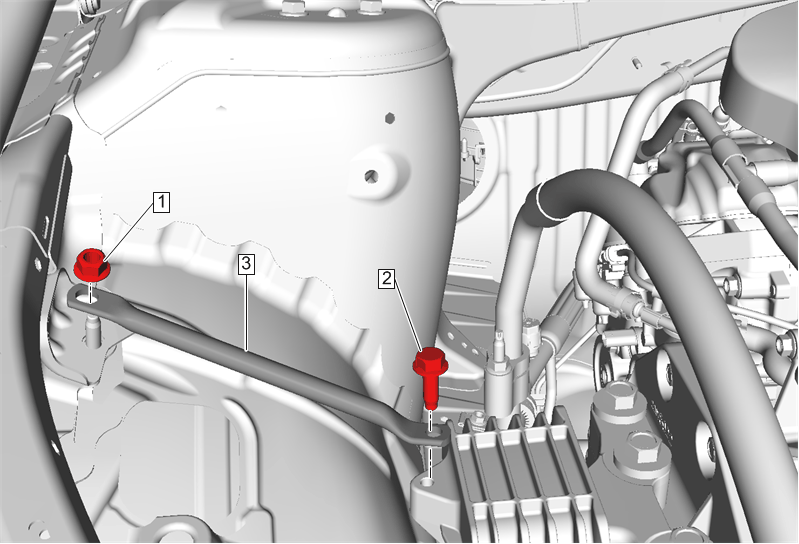

Engine Mount Brace (2) - Install
Engine Mount Brace Bolt (2) - Install and tighten 22 N.m (16 lb ft)
Engine Mount Brace Nut (1) - Install and tighten 22 N.m (16 lb ft)
Engine Control Module Bracket - Install - Engine Control Module Bracket Replacement
