Powertrain Mount Balancing
WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
- Air Cleaner Assembly - Remove - Air Cleaner Assembly Replacement
- Engine Support Fixture - Install - Engine Support Fixture
- Raise the vehicle. Lifting and Jacking the Vehicle
Rear Transmission Mount Through Bolt (1) - Loosen

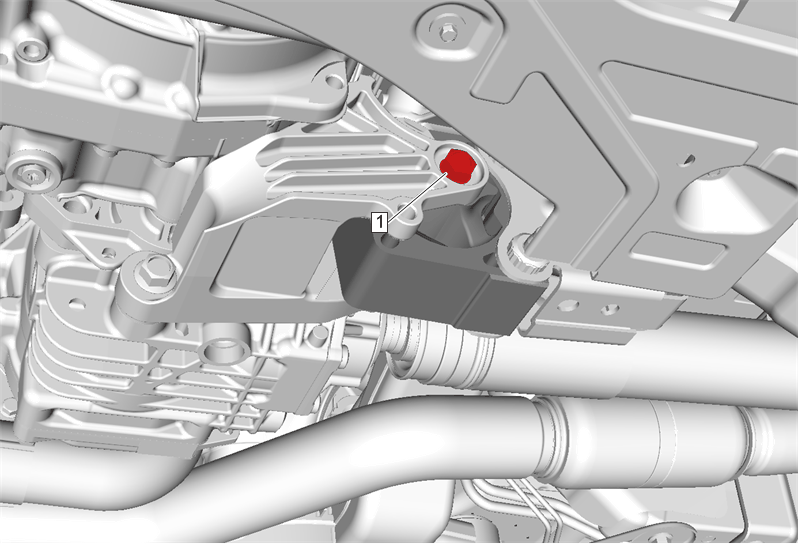

Front Transmission Mount Through Bolt (1) - Loosen
- Lower the vehicle.

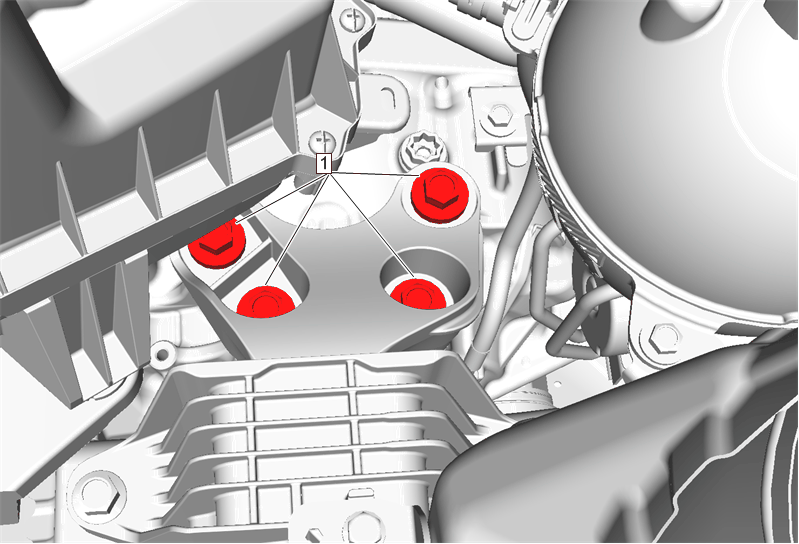

Transmission Mount Bolt (1) - Loosen [4x]

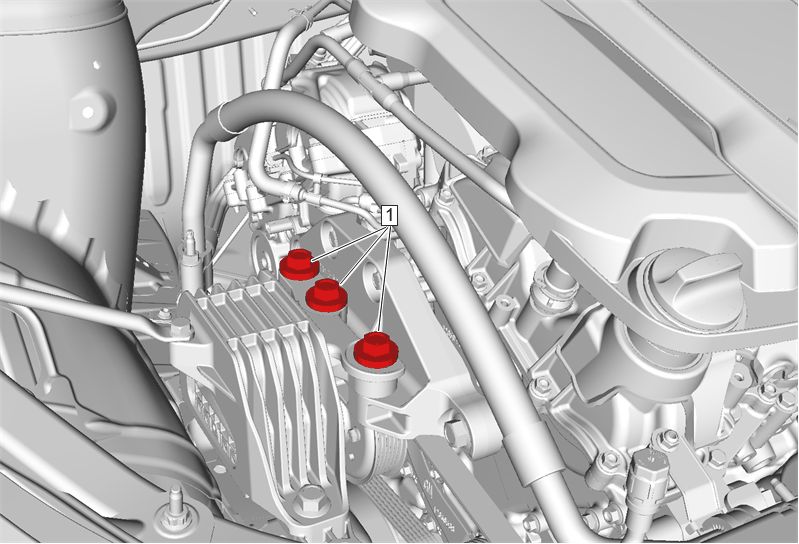

Engine Mount Fastener (1) - Remove and DISCARD [3x]
- Engine Mount Fastener (1) - Install NEW bolts. [3x]
- Adjust the engine support fixture in order to allow a 1/8 inch gap between the mount and bracket.
- CAUTION:
Refer to Fastener Caution .
Transmission Mount Bolt (1) - Tighten [4x] - Transmission Mount Replacement
Engine Mount Fastener (1) - Install - Engine Mount Replacement - Right Side
- Engine Support Fixture - Remove - Engine Support Fixture
- Shake the powertrain vigorously from front to rear and allow the powertrain to settle.
- Raise the vehicle.
Front Transmission Mount Through Bolt (1) - Tighten - Transmission Front Mount Replacement
Rear Transmission Mount Through Bolt (1) - Tighten - Transmission Rear Mount Replacement
- Lower the vehicle.
- Air Cleaner Assembly - Install - Air Cleaner Assembly Replacement
NOTE:
Do not tighten the engine mount fasteners at this time.
