Engine Control Module Bracket Replacement

WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

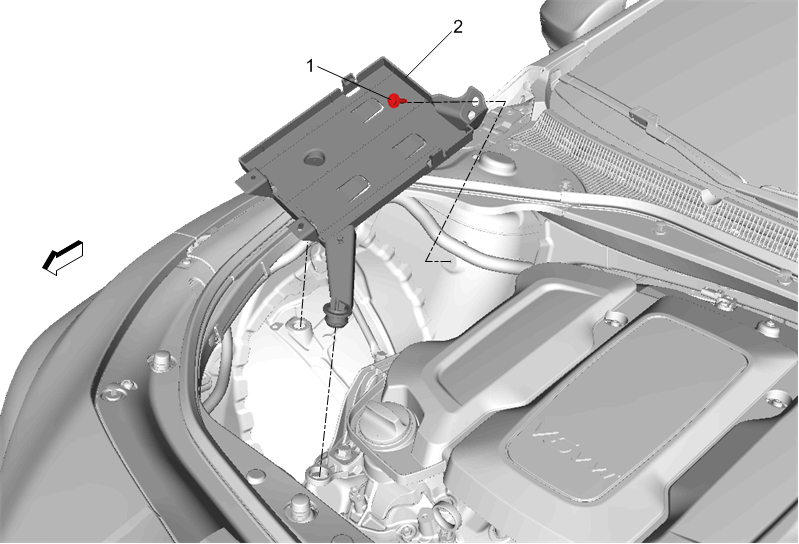

Callout	Component Name
Preliminary Procedures Engine Control Module Replacement Unclip wiring harness from engine control module bracket.
1	Engine Control Module Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Engine Control Module Bracket Procedure Lift up on bracket to remove from retainers.

Callout

Component Name

Preliminary Procedures

Engine Control Module Replacement
Unclip wiring harness from engine control module bracket.

Engine Control Module Bracket Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Engine Control Module Bracket
Procedure
Lift up on bracket to remove from retainers.
