Installation Procedure
WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
- Assemble the cylinder head as necessary. Cylinder Head Assemble
Ensure the cylinder head locating pins (5) are securely mounted in the cylinder block deck face.
- Install a NEW left cylinder head gasket (4) using the deck face locating pins for retention.
- Cylinder Head - Right Side - Install - Cylinder Head Installation - Right Side
Camshaft Carrier - Right Side (2) - Install - Camshaft Carrier Installation - Right Side
Valve Lifter-Right Side (1, 2) - Install - Valve Lifter Replacement - Right Side
- Camshaft - Right Side (2) @ Bank 2 - Install - Camshaft Replacement - Right Side
- Position wire harness and connect as necessary.
- Install ground wire and ground wire bolt. Tighten bolt to 15 N.m (11 lb ft).
Fuel Pump (2) - Install - Fuel Pump Replacement

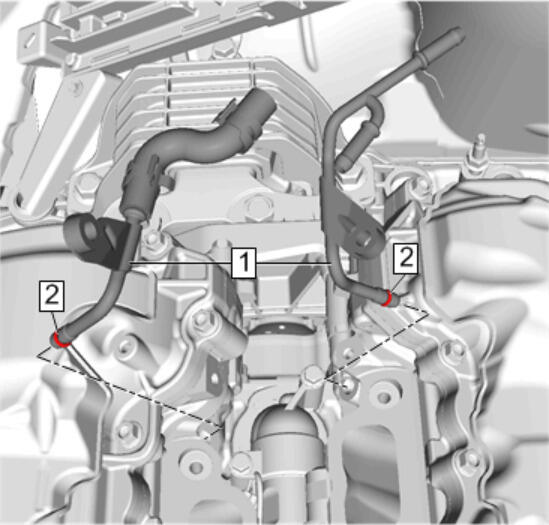

Engine Coolant Air Bleed Pipe (1) - Install - Engine Coolant Air Bleed Pipe Replacement (3.6L LGX)
Fuel Injection Fuel Rail Noise Shield (1) - Install - Fuel Injection Fuel Rail Noise Shield Replacement
- Camshaft Timing Chain - Right Side - Install - Camshaft Timing Chain Assembly Replacement - Right Side
