Fuel Injection Fuel Rail Noise Shield Replacement

WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Intake Manifold Replacement

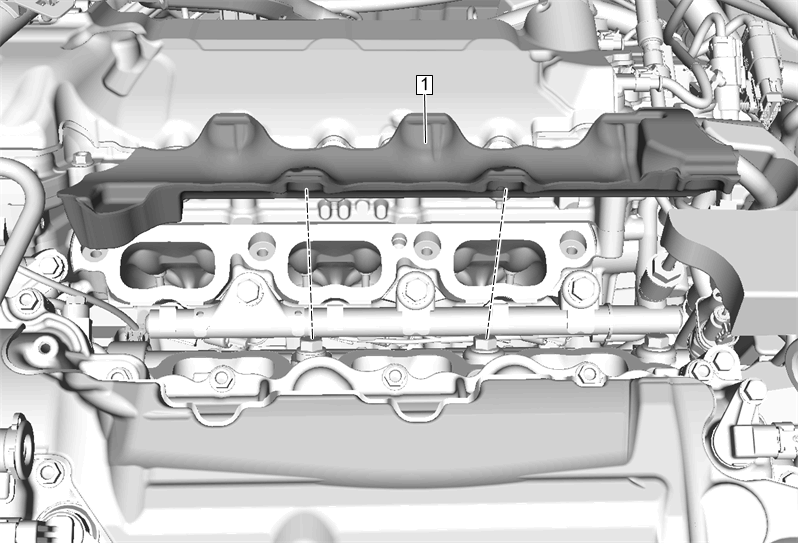

1	Fuel Injection Fuel Rail Noise Shield WARNING: The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death. NOTE: The fuel injection fuel rail noise shield snaps into place.

Callout

Component Name

Preliminary Procedure
Intake Manifold Replacement

Fuel Injection Fuel Rail Noise Shield

WARNING:

The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

NOTE:

The fuel injection fuel rail noise shield snaps into place.
