Driver Door Harness Routing

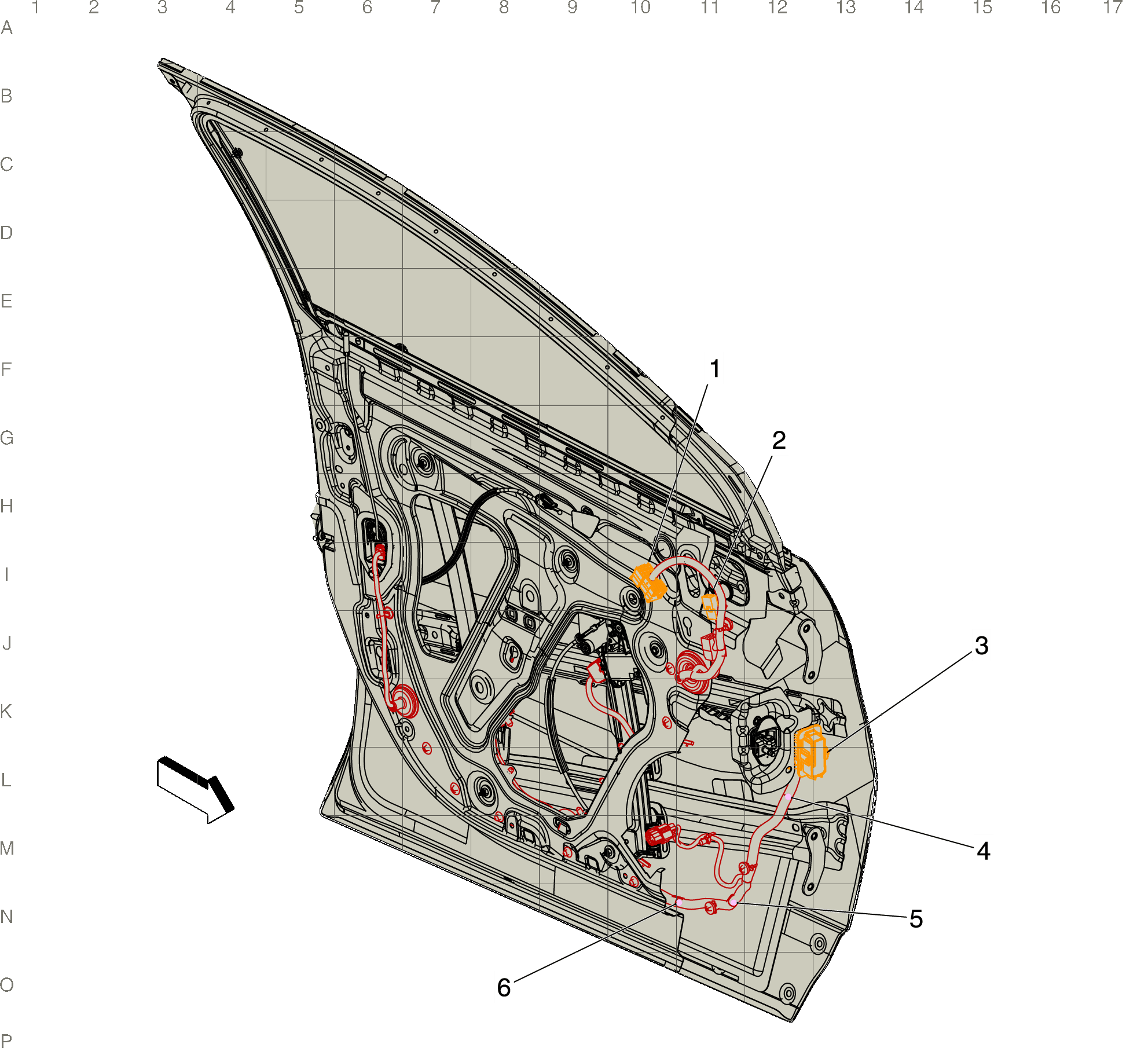

Fig 1: Driver Door Harness Routing
GM4004289Courtesy of GENERAL MOTORS COMPANY
Items
X501 Driver Door Harness to Driver Door Trim Harness X501 Driver Door Harness to Driver Door Trim Harness
X510 Outside Rearview Mirror Harness to Driver Door Harness X510 Outside Rearview Mirror Harness to Driver Door Harness
X500 Body Harness to Driver Door Harness X500 Body Harness to Driver Door Harness
J500 Driver Door Harness (UVH)
J501 Driver Door Harness
J502 Driver Door Harness
