X501 Driver Door Harness to Driver Door Trim Harness

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

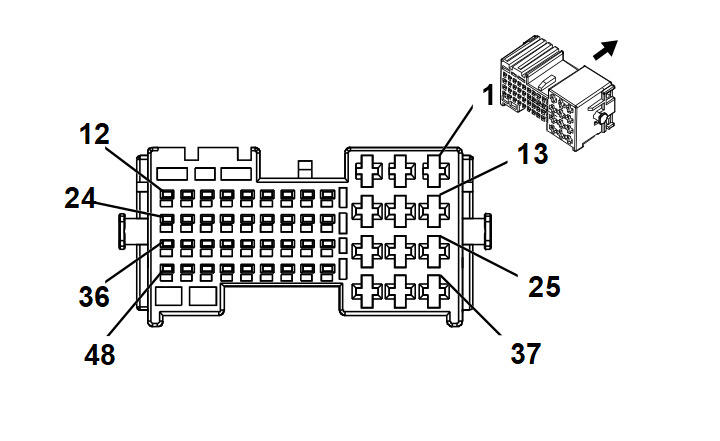

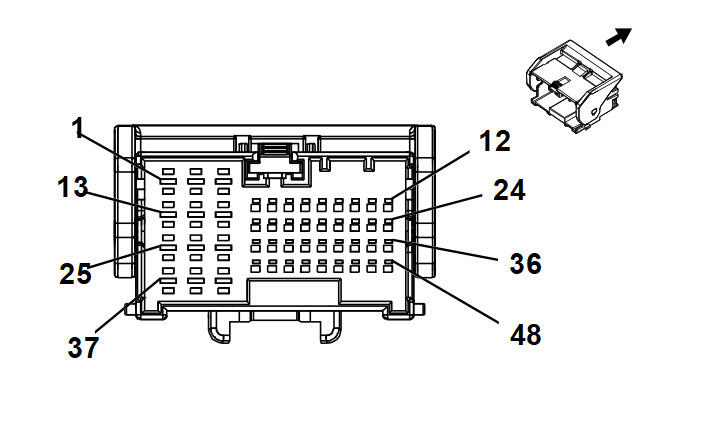

Connector Part Information Harness Type: Driver Door OEM Connector: 2109452-2 Service Connector: Service by Harness - See Part Catalog Description: 48-Way F 1.2 MCON, 2.8 MCP Series (BK)	Connector Part Information Harness Type: Driver Door Trim OEM Connector: 5-2109455-2 Service Connector: Service by Harness - See Part Catalog Description: 48-Way M 1.2 MCON, 2.8 MCP Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-16 (LT GN)	No Tool Required	Not Required	Not Required	Not Required	Not Required
II	Not Required	J-35616-4A (PU)	No Tool Required	Not Required	Not Required	Not Required	Not Required
III	Not Required	J-35616-17 (LT GN)	No Tool Required	Not Required	Not Required	Not Required	Not Required
IV	Not Required	J-35616-5 (PU)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.5	RD/BN	1440	II	-	Battery Positive Voltage	1	0.5	RD/BN	1440	IV	-
2	-	-	-	-	-	Not Occupied	2	-	-	-	-	-
3	0.5	BK	1550	II	-	Ground	3	0.5	BK	1550	IV	-
4	0.35	BK/BU	5978	I	A45	Memory Switch Low Reference	4	0.35	BK/BU	5978	III	A45
5	0.35	BU/GN	614	I	A45	Memory Seat Switch Set Signal	5	0.35	BU/GN	614	III	A45
6	0.35	WH	615	I	A45	Memory Seat Switch Signal 1	6	0.35	WH	615	III	A45
7	0.35	GN/WH	7530	I	A45	Local Interconnect Network Serial Data Bus 8	7	0.35	GN/WH	7530	III	A45
8	0.5	YE	6817	I	-	LED Backlight Dimming Control	8	0.5	YE	6817	III	-
9	0.5	BN/YE	780	I	-	Driver Door Lock Switch Lock Signal	9	0.5	BN/YE	780	III	-
10	0.5	BN/WH	781	I	-	Driver Door Lock Switch Unlock Signal	10	0.5	BN/WH	781	III	-
11	0.5	GN	3381	I	-	Power Window Switch Driver Express Signal	11	0.5	GN	3381	III	-
12	0.5	GY	3380	I	-	Power Window Switch Driver Down Signal	12	0.5	GY	3380	III	-
13 - 15	-	-	-	-	-	Not Occupied	13 - 15	-	-	-	-	-
16	0.5	GN/WH	3379	I	-	Power Window Switch Driver Up Signal	16	0.5	GN/WH	3379	III	-
17	0.5	GN/YE	6134	I	-	Local Interconnect Network Serial Data Bus 3	17	0.5	GN/YE	6134	III	-
18	0.35	WH/VT	3270	I	-	Driver Door Lock Motor Status Signal	18	0.5	WH/VT	3270	III	-
19	0.35	BU/VT	1124	I	-	Door Lock Key Switch Unlock Signal	19	0.5	BU/VT	1124	III	-
20	0.35	BN/BK	3389	I	-	Driver Mirror Motor Right (+) Left (-) Control	20	0.35	BN/BK	3389	III	-
21	0.35	VT/BU	3390	I	-	Driver Mirror Motor Up (+) Down (-) Control	21	0.35	VT/BU	3390	III	-
22	0.35	YE/BN	3391	I	-	Driver Mirror Motor Common Control	22	0.35	YE/BN	3391	III	-
23 - 27	-	-	-	-	-	Not Occupied	23 - 27	-	-	-	-	-
28	0.35	GN/BK	3396	I	-	Passenger Mirror Motor Right (+) Left (-) Control	28	0.35	GN/BK	3396	III	-
29	0.35	YE/VT	3397	I	-	Passenger Mirror Motor Up (+) Down (-) Control	29	0.35	YE/VT	3397	III	-
30	0.35	WH	3398	I	-	Passenger Mirror Motor Common Control	30	0.35	WH	3398	III	-
31	0.5	WH/YE	7557	I	-	LED Ambient Lighting Control 1	31	0.5	WH/YE	7557	III	-
32	0.5	GY	157	I	-	Interior Lamp Control	32	0.5	GY	157	III	-
33	0.35	GN	6112	I	-	Power Lift Gate On/Off Switch Signal	33	0.35	GN	6112	III	-
34	0.35	GY/BK	6113	I	-	Rear Lift Gate Open/Close Switch Signal	34	0.35	GY/BK	6113	III	-
35 - 39	-	-	-	-	-	Not Occupied	35 - 39	-	-	-	-	-
40	0.35	GN	784	I	A45	Left Mirror Vertical Position Sensor Signal	40	0.35	GN/BU	784	III	A45
41	0.35	BU/WH	6160	I	A45	Outside Left Mirror Vertical Position Control	41	0.35	BU/WH	6160	III	A45
42	0.35	GY/BK	7197	I	A45	Outside Left Mirror Drive Motor Ground	42	0.35	GY/BK	7197	III	A45
43	0.35	GN/WH	6159	I	A45	Outside Left Mirror Horizontal Position Control	43	0.35	GN/WH	6159	III	A45
44	0.35	BU	672	I	A45	Left Outside Rear View Mirror Position Sensor 5V Reference	44	0.35	BU/RD	672	III	A45
45	0.35	VT	786	I	A45	Left Mirror Horizontal Position Sensor Signal	45	0.35	VT/GY	786	III	A45
46	0.35	BN	673	I	A45	Left Outside Rear View Mirror Position Sensor Low Reference	46	0.35	BK/BN	673	III	A45
47 - 48	-	-	-	-	-	Not Occupied	47 - 48	-	-	-	-	-
