X500 Body Harness to Driver Door Harness

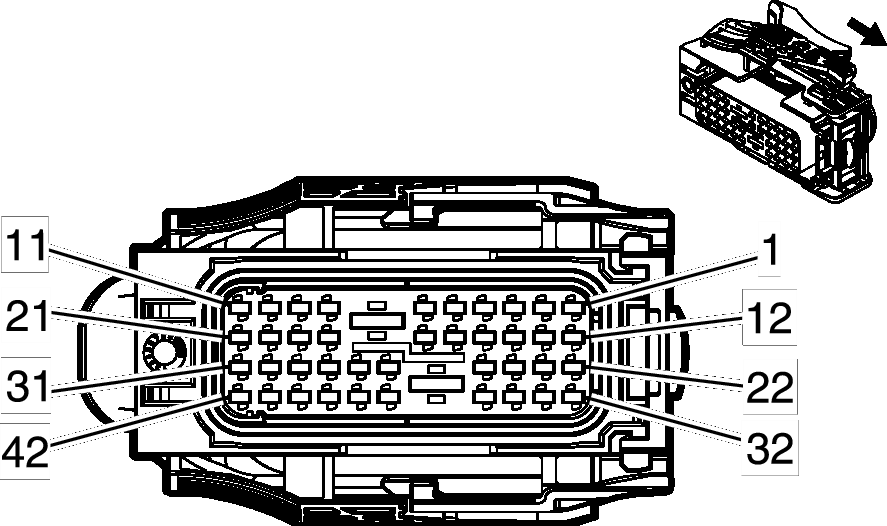

GM3824562Courtesy of GENERAL MOTORS COMPANY

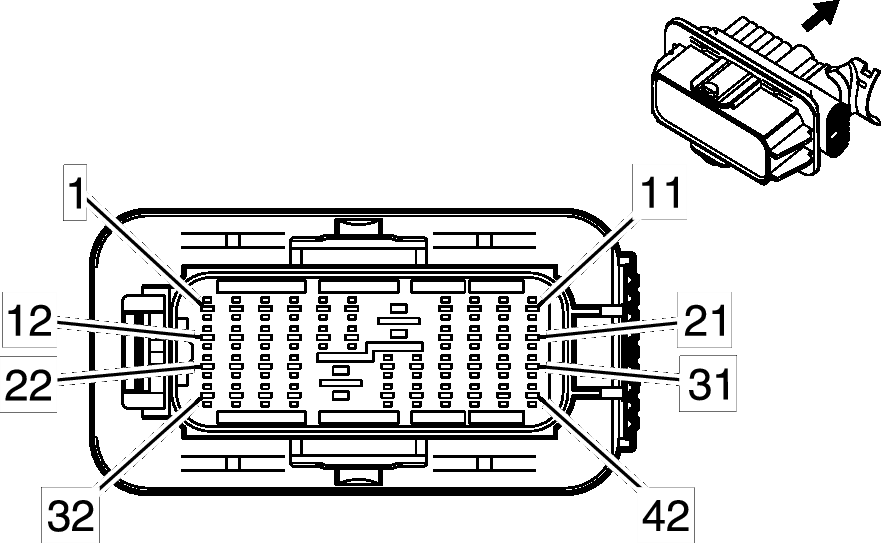

GM3824561Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13958044
  • Service Connector: 19330687
  • Description: 42-Way F 1.5, 6.3 Series, Sealed (BK)
 Connector Part Information
  • Harness Type: Driver Door
  • OEM Connector: 33115081
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 42-Way M 1.5, 6.3 Series, Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 19119381 J-35616-14 (GN) J-3125-560 Not Available Not Available Not Available Not Available
II 19301757 J-35616-40 (BU) J-38125-556 1241408-1 Lear 28 A B
III 19301776 J-35616-14 (GN) J-38125-215A Not Available Not Available Not Available Not Available
IV 19369235 J-35616-14 (GN) J-3125-560 Not Available Not Available Not Available Not Available
V Not Required J-35616-3 (GY) No Tool Required Not Required Not Required Not Required Not Required
VI Not Required J-35616-43 (RD) No Tool Required Not Required Not Required Not Required Not Required
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 0.5 RD/BN 1440 III - Battery Positive Voltage 1 0.5 RD/BN 1440 V -
2 - - - - - Not Occupied 2 - - - - -
3 0.5 BN/YE 2267 III - Mirror Heating Element Control 3 0.5 BN/YE 2267 V -
4 1.5
0.75		 BU
BU		 201
201		 IV
III		 UQA
UZ6		 Left Front Speaker Control (+) 1
Left Front Speaker Control (+) 1		 4 1.5
0.75		 BU
BU		 201
201		 V
V		 UQA
UZ6
5 1.5 BN/BU 118 IV UQA Left Front Speaker Signal (-) 1 5 1.5 BN/BU 118 V UQA
6 0.35 BN/WH 781 I - Driver Door Lock Switch Unlock Signal 6 0.5 BN/WH 781 V -
7 2.5 RD/BN 3640 II - Battery Positive Voltage 7 2.5 RD/BN 3640 VI -
8 0.35 WH 3398 I - Passenger Mirror Motor Common Control 8 0.35 WH 3398 V -
9 0.35 YE/VT 3397 I - Passenger Mirror Motor Up (+) Down (-) Control 9 0.35 YE/VT 3397 V -
10 0.35 GN/BK 3396 I - Passenger Mirror Motor Right (+) Left (-) Control 10 0.35 GN/BK 3396 V -
11 0.35 OG/GN 2132 I - Left Front Side Impact Sensing Module Signal 11 0.5 OG/GN 2132 V -
12 0.35 BK/OG 6628 I - Left Front Side Impact Sensing Module Low Reference 12 0.5 BK/OG 6628 V -
13 0.35 GY/YE 5853 I UKC Driver Side Object Detection LED Signal 1 13 0.35 GY/YE 5853 V UKC
14 0.35 BU/WH 1314 I - Left Front Turn Signal Lamp Control 14 0.35 BU/WH 1314 V -
15 0.35 BN/YE 780 I - Driver Door Lock Switch Lock Signal 15 0.5 BN/YE 780 V -
16 0.35 BU/GN 614 I A45 Memory Seat Switch Set Signal 16 0.35 BU/GN 614 V A45
17 1 BU/WH 195 III - Door Lock Control 17 0.75 BU/WH 195 V -
18 0.75 BN/YE 294 III - Door Lock Actuator Unlock Control 18 0.75 BN/YE 294 V -
19 - - - - - Not Occupied 19 - - - - -
20 0.35 YE/WH 1690 I - Automatic Day/Night Mirror Signal 20 0.35 YE/WH 1690 V -
21 0.35 GN/YE 6134 I - Local Interconnect Network Serial Data Bus 3 21 0.5 GN/YE 6134 V -
22 0.35 BK/GN 4664 I UVH Left Side Camera Return 22 0.35 BK/GN 4664 V UVH
23 0.5 WH/YE 3574 III - Driver Door Open Switch Signal 23 0.5 WH/YE 3574 V -
24 - 25 - - - - - Not Occupied 24 - 25 - - - - -
26 0.35 YE 6817 I - LED Backlight Dimming Control 26 0.5 YE 6817 V -
27 0.5 VT 3560 III - Passive Entry Driver Door Antenna Signal Hi 27 0.5 VT 3560 V -
28 0.5 VT/GY 3561 III - Passive Entry Driver Door Antenna Signal Lo 28 0.5 VT/GY 3561 V -
29 0.35 BK 2624 I UVH Left Side Vision Camera Video Drain Wire 29 0.35 BARE 2624 V UVH
30 0.5 GN/WH 3570 III - Driver Door Handle Switch Signal 30 0.5 GN/WH 3570 V -
31 0.35 VT/GN 4663 I UVH Left Side Camera Control 31 0.35 VT/GN 4663 V UVH
32 0.35 WH/GN 2628 I UVH Left Side Vision Camera Video Signal (+) 32 0.35 WH/GN 2628 V UVH
33 0.35 GY/GN 2625 I UVH Left Side Vision Camera Video Signal (-) 33 0.35 GY/GN 2625 V UVH
34 0.35 WH/YE 7557 I - LED Ambient Lighting Control 1 34 0.5 WH/YE 7557 V -
35 0.35 WH 615 I A45 Memory Seat Switch Signal 1 35 0.35 WH 615 V A45
36 2.5 BK 1550 II - Ground 36 2.5 BK 1550 VI -
37 0.35 BK/YE 1691 I - Automatic Day/Night Mirror Low Reference 37 0.35 BK/YE 1691 V -
38 0.35 GN/WH 7530 I A45 Local Interconnect Network Serial Data Bus 8 38 0.35 GN/WH 7530 V A45
39 0.35 GY/BK 6113 I - Rear Lift Gate Open/Close Switch Signal 39 0.35 GY/BK 6113 V -
40 0.35 GN 6112 I - Power Lift Gate On/Off Switch Signal 40 0.35 GN 6112 V -
41 0.5 GY 157 III - Interior Lamp Control 41 0.5 GY 157 V -
42 0.35 BK/BU 5978 I A45 Memory Switch Low Reference 42 0.35 BK/BU 5978 V A45
