Quarter Window Lower Trim Finish Panel Replacement

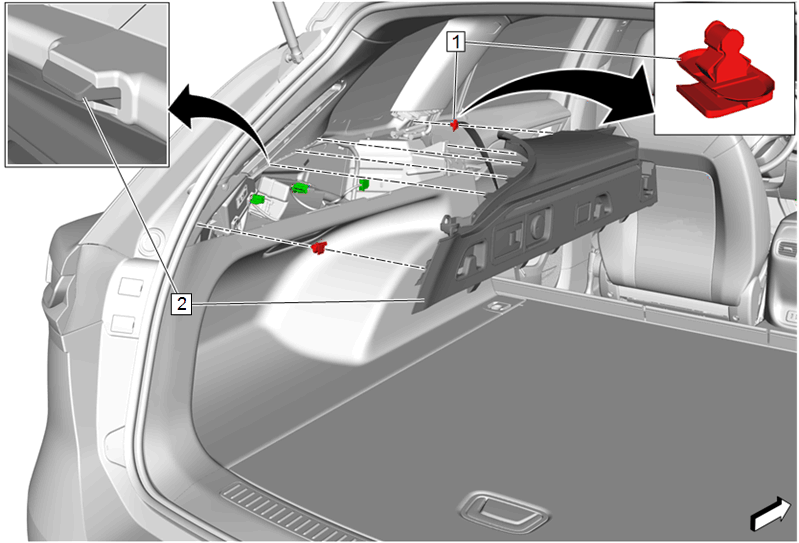

Callout	Component Name
Preliminary Procedures Luggage Shade - Remove Cargo Net - Remove Quarter Upper Trim Panel Bracket Replacement Rear Seat Back Side Cushion Replacement
1	Quarter Window Lower Trim Finish Panel Retainer [2x] Procedure Use a flat bladed plastic tool to remove.
2	Quarter Window Lower Trim Finish Panel Bolt CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
3	Quarter Window Lower Trim Finish Panel Procedure Unlock the retaining tabs.[6x] Disconnect all electrical connectors. Unclip the wiring harness clips.[3x] Transfer components as necessary.
