Quarter Upper Trim Panel Bracket Replacement

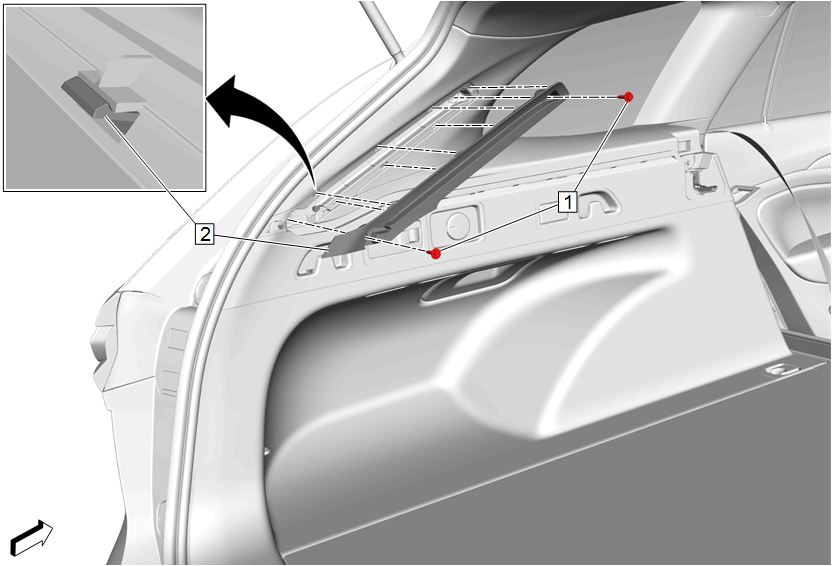

GM4741736
Callout Component Name
1 Quarter Upper Trim Panel Bracket Bolt[2x]
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Quarter Upper Trim Panel Bracket
Procedure
Unlock the retaining tabs.[7x]
