Front Floor Console Replacement

Courtesy of GENERAL MOTORS COMPANY

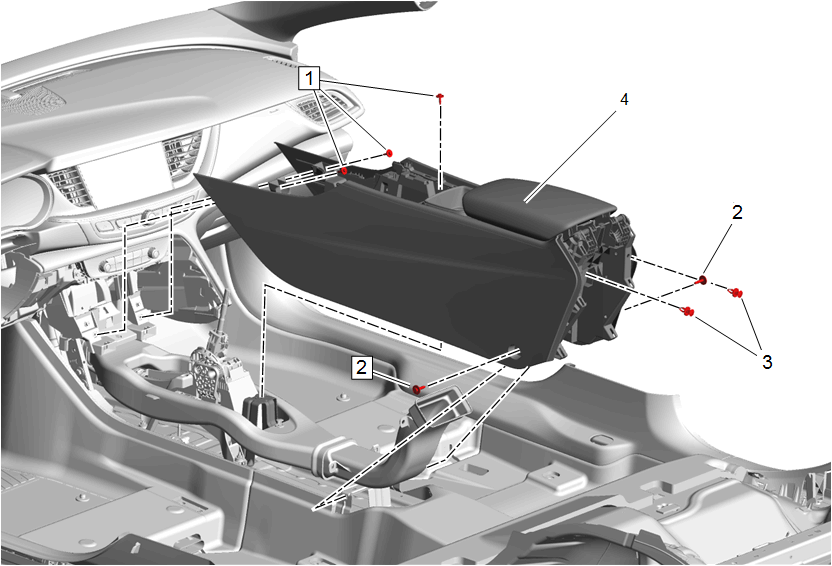

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Front Floor Console Front Compartment Replacement Front Floor Console Rear Trim Panel Replacement
1	Front Floor Console Bolt [3x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Front Floor Console Bolt [2x] Tighten 7 N.m (62 lb in)
3	Front Floor Console Retainer [2x]
4	Front Floor Console Procedure Disconnect all electrical connectors. Transfer components as necessary.
