Front Floor Console Rear Trim Panel Replacement

Courtesy of GENERAL MOTORS COMPANY

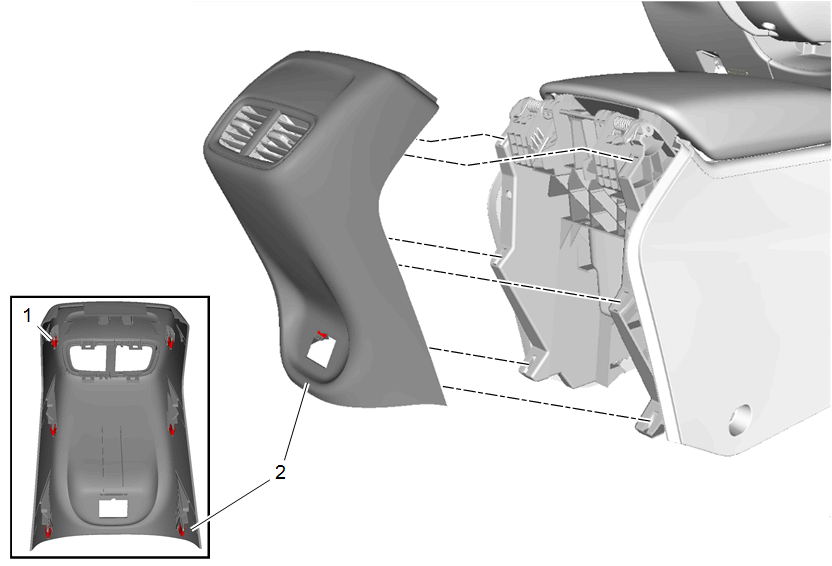

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
1	Front Floor Console Rear Trim Panel Retainer [6x] Procedure Use a flat bladed plastic tool to remove.
2	Front Floor Console Rear Trim Panel Procedure If equipped, transfer the USB receptacle. USB Receptacle Replacement . Transfer the front floor console rear air outlet. Front Floor Console Rear Air Outlet Replacement .

Callout

Component Name

Front Floor Console Rear Trim Panel Retainer [6x]
Procedure
Use a flat bladed plastic tool to remove.

Front Floor Console Rear Trim Panel

Procedure

If equipped, transfer the USB receptacle. USB Receptacle Replacement .
Transfer the front floor console rear air outlet. Front Floor Console Rear Air Outlet Replacement .
