Front Floor Console Front Compartment Replacement

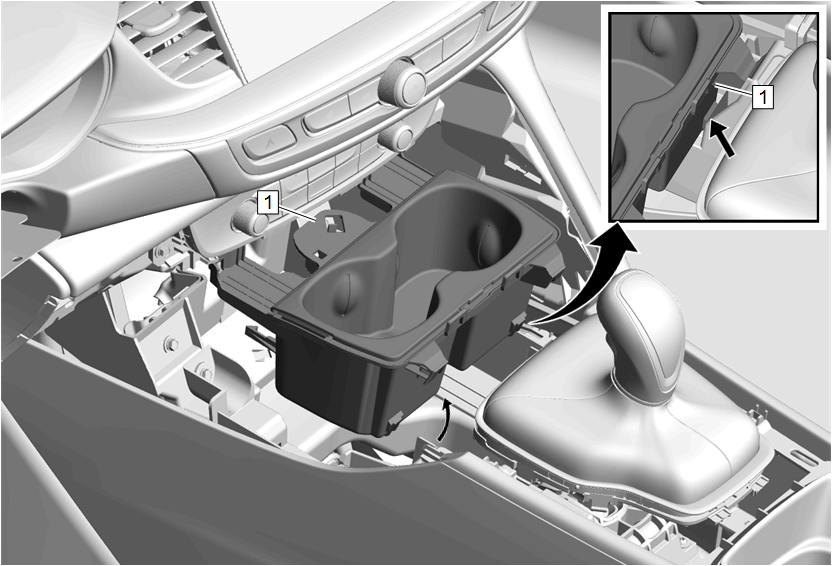

GM4645627Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Callout Component Name
Preliminary Procedure
Front Floor Console Cup Holder Door Replacement
1 Front Floor Console Front Compartment

Procedure

  1. Front Floor Console Front Compartment - Front Floor ConsoleUnclip
  2. Pull upwards then backwards to remove.
  3. Disconnect all electrical connectors.
  4. Transfer components as necessary.
