Front Floor Console Cup Holder Door Replacement

Courtesy of GENERAL MOTORS COMPANY

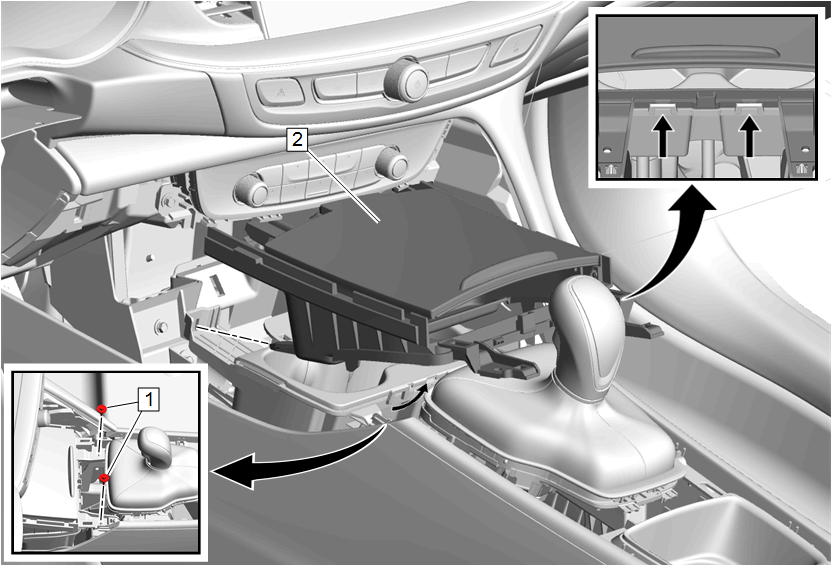

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Front Floor Console Trim Plate Replacement Instrument Panel Lower Trim Panel Replacement Instrument Panel Lower Center Trim Panel Replacement
1	Front Floor Console Cup Holder Door Bolt [2x] CAUTION: Fastener Caution Tighten 2.5N.m (22 lb in)
2	Front Floor Console Cup Holder Door Procedure Front Floor Console Cup Holder Door - Front Floor ConsoleUnclip Pull upwards and then backwards to remove. Disconnect all electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Front Floor Console Cup Holder Door Bolt [2x]

CAUTION:

Tighten
2.5N.m (22 lb in)

Front Floor Console Cup Holder Door

Procedure
