Instrument Panel Lower Center Trim Panel Replacement

Courtesy of GENERAL MOTORS COMPANY

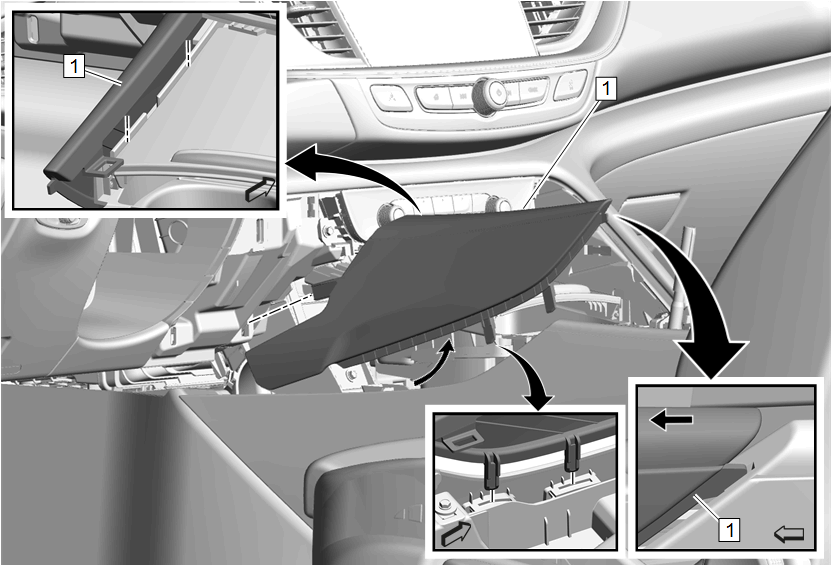

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Front Floor Console Trim Plate Replacement
1	Instrument Panel Lower Center Trim Panel Procedure  Push the instrument panel lower center trim panel forward in order to release from the front floor console.
